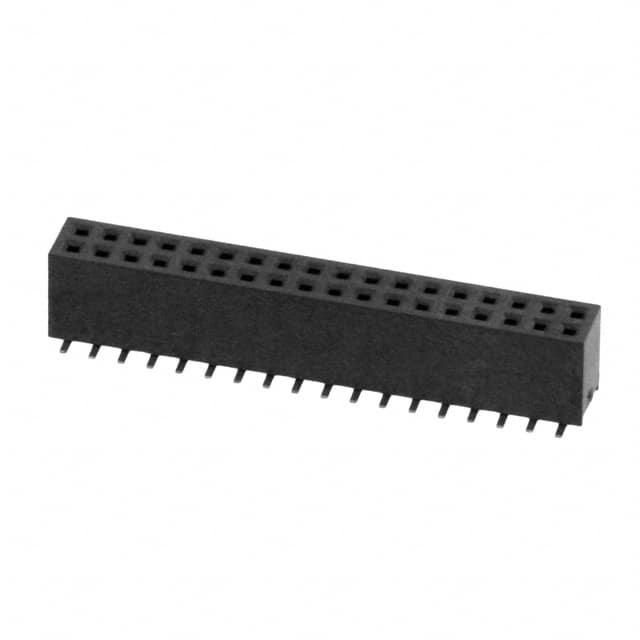

Minitek127®, Board to Board connectors, PCB mounted Receptacle, Vertical, Surface Mount, Double Row, 36 Positions, 1.27mm (0.05inch) pitch
Specifications for the 20021321-00036T4LF
|Manufacturer||Amphenol ICC (FCI)|
|Formats Available for
Symbols and Footprints
|Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus|
When an Altium schematic symbol is downloaded as an IntLib, the grid is set to metric even though... (more)
Added 1 day, 19 hours ago.
There are two pair of pins labeled shield for this connector. Not sure if these pins get connecte... (more)
Added 3 days ago.
