2007435-2
HDMI Receptacle Connector 19 Position Panel Mount, Through Hole, Right Angle
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2007435-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

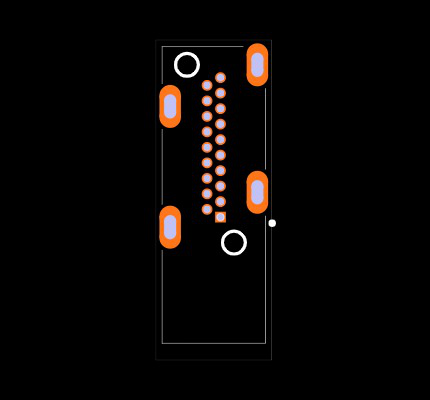

Footprint
No web preview
This Footprint is Available for

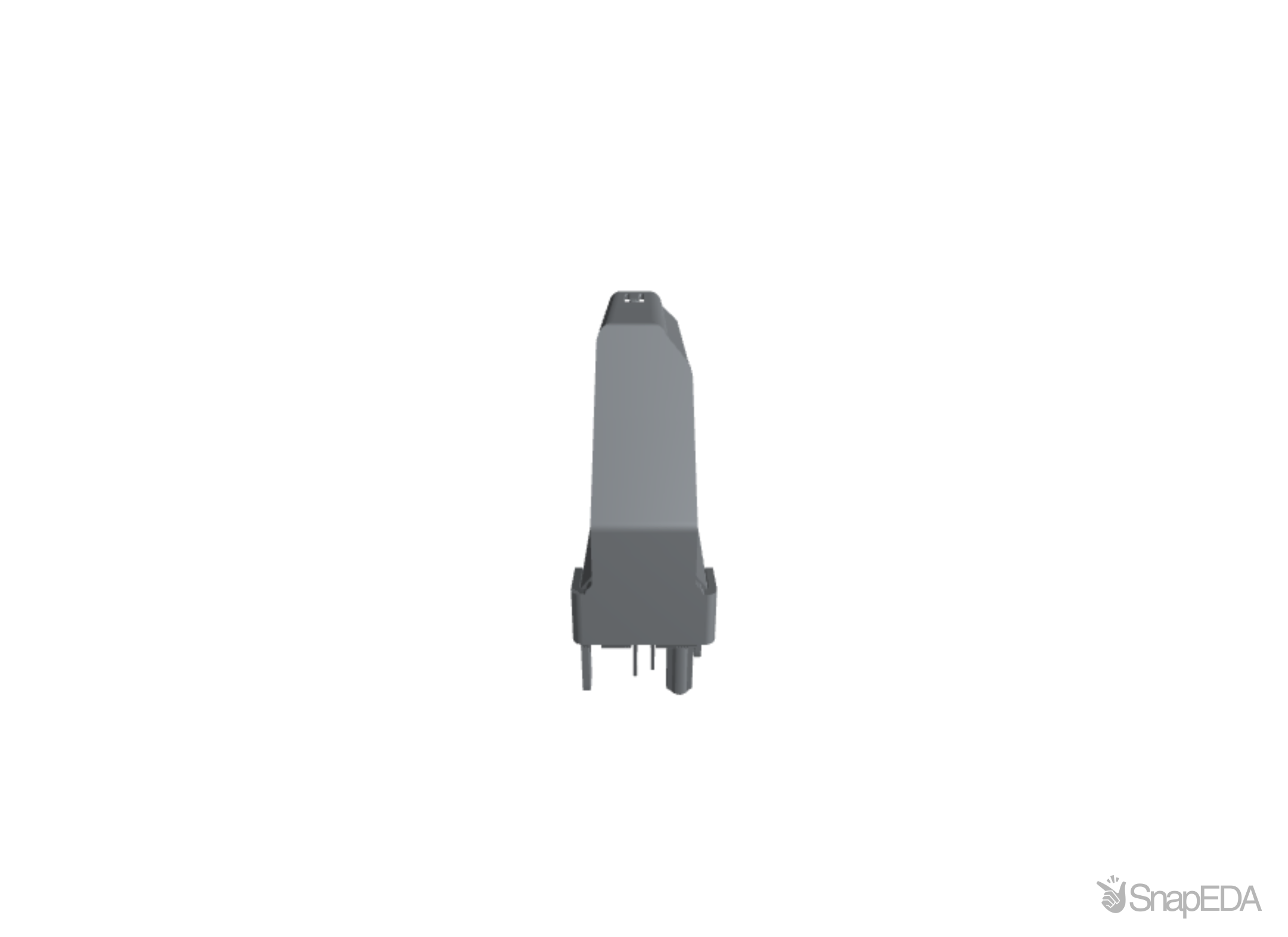

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2007435-2
| Part Name | 2007435-2 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Tin |
| Centerline (Pitch) | 1 |
| Circuit Application | Signal |
| Soldering Temperature (Max) | 240 |
| Contact Termination Type | Through Hole |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Receptacle |
| Number of Positions | 19 |
| PCB Mount Retention Type | Straight Leg |
| Mounting Location | Top |
| TE Internal Number | 2007435-2 |
| Preloaded | Yes |
| Connector System | Cable-to-Board |
| Mating Cycles (Max) | 10000 |
| Housing Color | Black |
| Termination Method | Solder |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Stacked | No |
| Operating Temperature Range | -4 – 185 |
| Shell Plating Finish | Matte |
| Locating Posts | Without |
| Packaging Method | Tray |
| Tail Length | 2.3 |
| Number of Ports | 1 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| PCB Mounting Style | Through Hole |
| Orientation | Flag |
| PCB Thickness (Min) | .094 |
| Contact Current Rating (Max) (A) | .5 |
| Contact Mating Area Plating Thickness | 15 |
| Size | Standard |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2007435-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
10,080 x $3.53
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Heilind Americas |
|
10,080 x $3.77
|
Visit Site | |
| Interstate Connecting Components |
|
10,080 x $3.77
|
Visit Site | |
| Sager |
|
10,080 x $4.71
|
Visit Site |
No issues have been reported for the 2007435-2
If you experienced any issues with the symbol or footprint, please report it.
