2007705-1
IMP100S,R,RA3P10C,UG,39
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2007705-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

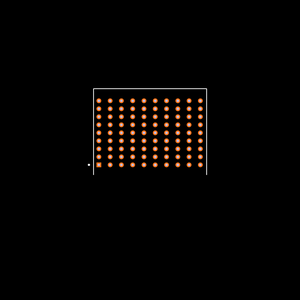

Footprint
No web preview
This Footprint is Available for

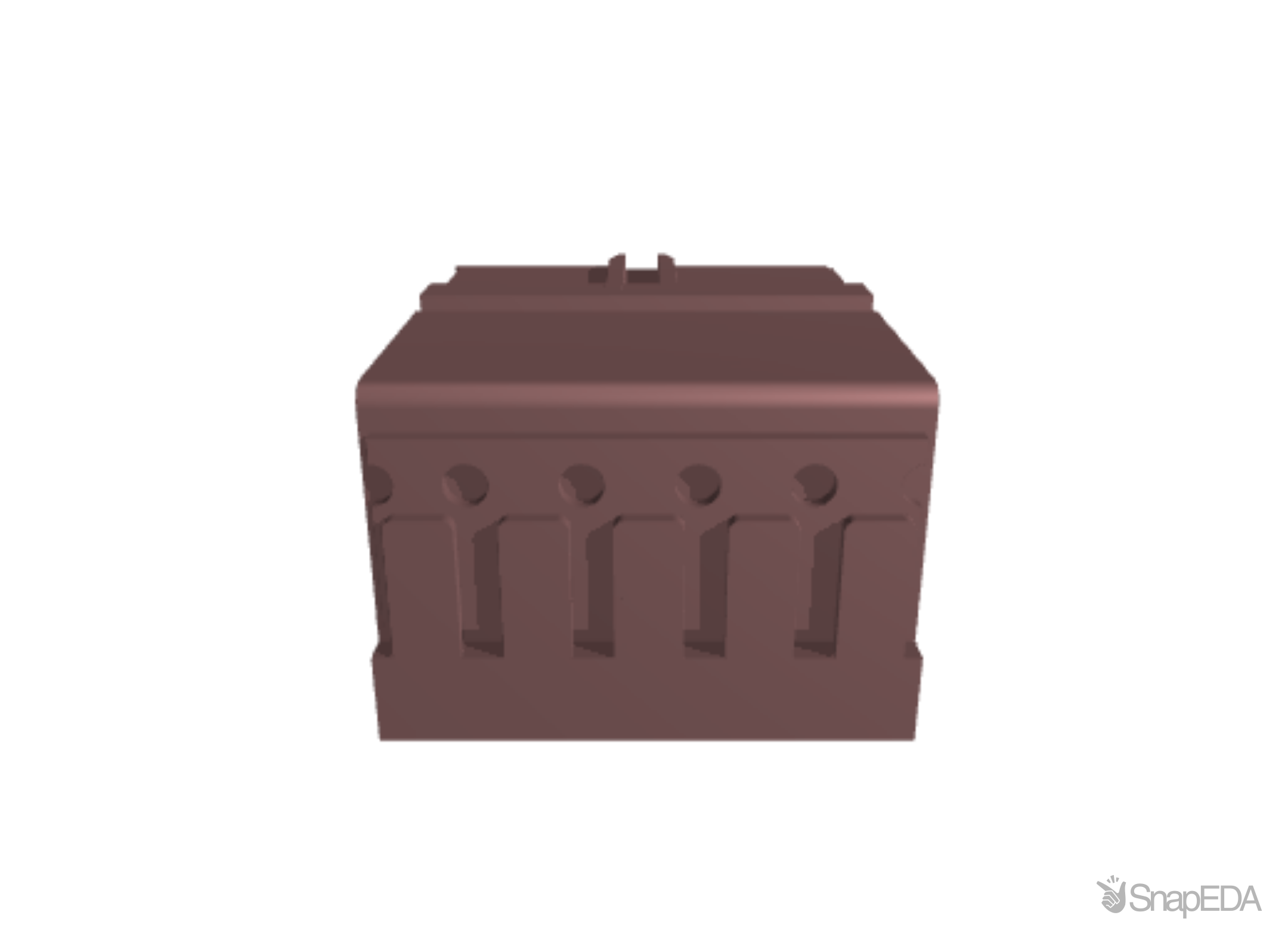

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2007705-1
| Part Name | 2007705-1 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 1.9 |
| Circuit Application | Signal |
| Number of Differential Pairs per Column | 3 |
| Underplate Material Thickness | 50 |
| Housing Material | LCP - GF (Liquid Crystal Polymer) |
| PCB Hole Diameter | .39 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 30 |
| For Use With | Header |
| Connector Style | Receptacle |
| PCB Mount Orientation | Right Angle |
| Number of Positions | 90 |
| PCB Mount Retention Type | Action/Compliant Tail |
| Guide Location | Unguided |
| Contact Design | Dual Beam |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1 |
| Signal Arrangement | Differential |
| Part Category | High Speed Backplane Connectors |
| TE Internal Number | 2007705-1 |
| Number of Pairs | 30 |
| UL Rating | Recognized |
| Connector System | Board-to-Board |
| Mating Retention | Without |
| Connector Height | 15 |
| Number of Rows | 9 |
| Housing Color | Black |
| Connector Width | 24.2 |
| Data Rate | 20 – 25 |
| Number of Signal Positions | 60 |
| Impedance | 100 |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| PCB Contact Termination Area Plating Material Thickness | 1.27 |
| Contact Transmits (Typical) | Signal (Data) |
| Number of Columns | 10 |
| Connector Length | 19 |
| UL File Number | E28476 |
| Operating Temperature Range | -55 – 85 |
| CSA Certified | Yes |
| Contact Underplating Material | Nickel |
| Packaging Method | Package |
| Tail Length | 1.2 |
| Stackable | No |
| Contact Layout | Inline |
| アース ポジション数 | 30 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Guide Hardware | Without |
| End Wall Location | None |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| 端子の下地めっきの材料 | Nickel |
| RoHS | True |
| Shrouded | Unshrouded |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 30 – 30 |
| Row-to-Row Spacing | 1.35 |
| Contact Current Rating (Max) (A) | .75 |
| Product Type | Connector |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin |
| Board-to-Board Configuration | Right Angle |
| Sealable | No |
| Make First / Break Last | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
