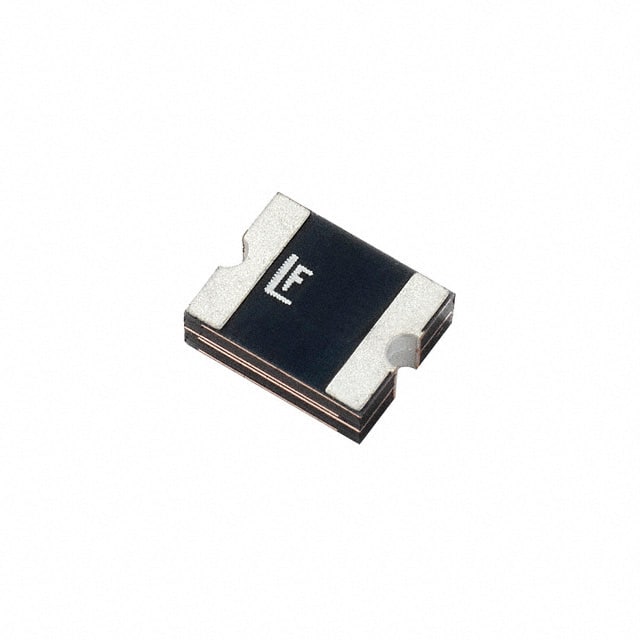

2016L050MR
PTC Resettable Fuse 0.55A(hold) 1.1A(trip) 60VDC 20A 1.4W 5s 0.2Ohm SMD Solder Pad 2016 T/R
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2016L050MR by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2016L050MR
| Part Name | 2016L050MR |
| Manufacturer | Littelfuse |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.2 (Ω) |
| Hold Current (A) | 0.55 (A) |
| Dimensions | 5.44 x 4.43 x 2 (mm) |
| Maximum Current (A) | 20 A |
| Width | 4.43 (mm) |
| Series | 2016L |
| Terminal Material | Solder Plated Copper |
| Voltage Rating (V) | 60 (V dc) |
| Height | 2 (mm) |
| Trip Current (A) | 1.1 (A) |
| Power Dissipation | 1.4 (W) |
| Length | 5.44 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Time To Trip | 5 (s) |
| Operating Temperature Range | -40 → +85 °C |
| Maximum Resistance | 1 (Ω) |
| Maximum Operating Temperature | +85 (°C) |
No issues have been reported for the 2016L050MR
