2029059-8
Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port Tray
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2029059-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

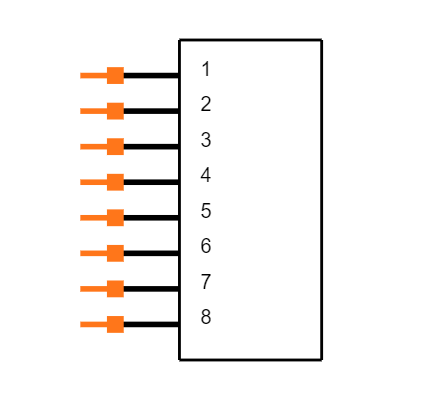

Symbol
No web preview
This Symbol is Available for

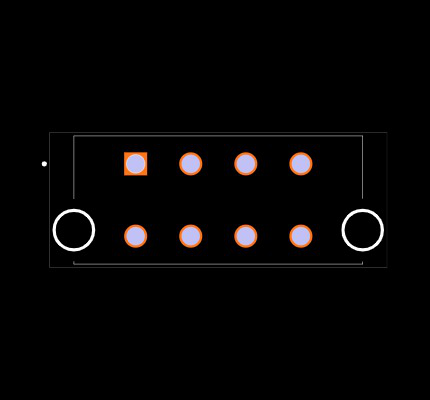

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2029059-8
| Part Name | 2029059-8 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | .165 |
| Circuit Application | Power |
| UL Flammability Rating | UL 94V-2 |
| Housing Material | Nylon GF |
| Width | .386 |
| Agency/Standard | UL |
| Operating Voltage (V) | 600 |
| Circuit Identification Feature | With |
| Connector Style | Plug |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .063 |
| CSA File Number | 208567 |
| Contact Plating Material | Tin |
| TE Internal Number | 2029059-8 |
| UL Rating | Recognized |
| Connector System | Wire-to-Board |
| Row-to-Row Spacing | .165 |
| Number of Rows | 2 |
| Header Type | Shrouded |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Contact Transmits (Typical) | Signal (Data) |
| Mating Retention | With |
| UL File Number | E28476 |
| Operating Temperature Range | -40 to 221 |
| Shielded | No |
| Packaging Method | Tray |
| Connector Type | Header |
| Packaging Quantity | 270 |
| Tail Length | 3.5 |
| Contact Layout | Inline |
| Length | .7087 |
| Number of Positions | 8 |
| Mating Alignment | With |
| Insertion Force | Standard |
| Accepts Wire Insulation Diameter Range | 1.2 3.1 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Sealable | No |
| PCB Mount Alignment | With |
| Mating Retention Type | Latch |
| Height | 12.8 |
| ???? | White |
| Contact Current Rating (Max) (A) | 9 |
| Contact Retention | With |
| Contact Type | Pin |
| Glow Wire Rating | Glow Wire |
| Wire Size | .12 1.4 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
