202D932-25-0

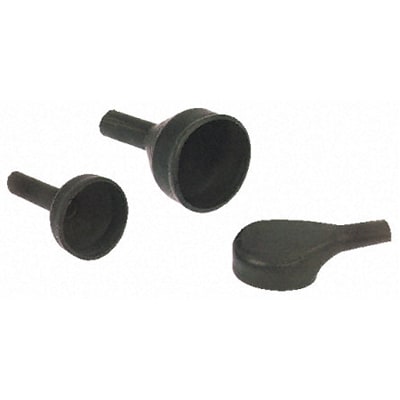

Raychem, Straight low profile lipped boot,12/16 | TE Connectivity 202D932-25-0
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 202D932-25-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 202D932-25-0
| Part Name | 202D932-25-0 |
| Manufacturer | TE Connectivity |
| Category | Wire & Cable |
| Approved Standards | IEC 62329-3-102 |
| Molded Part Shape Code | 202 |
| Power Cable Accessory | No |
| Molded Part Shape | Straight |
| Material Systems Code | 25 |
| Operating Temperature Range | -103 – 302 |
| Material | Fluid Resistant Modified Elastomer |
| Lipped | Yes |
| TE Internal Number | 806674-000 |
| Material Code | 25 |
| Cable Diameter Range | 2.6 – 5.5 |
| Adhesive Options | /225 Precoat |
| Adhesive Type | Adhesive Purchased Separately |
| Government Qualified | No |
| ワイヤ/ケーブル外径 | .12 in |
| Adhesive Pre-Coat | No |
| RoHS | True |
| Fluid/Chemical Resistance | Long-Term Exposure at High Temperature |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Adhesive Lined | No |
| Type | Straight |
| Shrunk Diameter Primary | 19.1 (mm) |
| Shrunk Diameter Secondary | 2.6 (mm) |
| Series | 202D9 |
| Material | Fluid Resistant Elastomer |
| Number Of Breakouts | 1 |
| Inside Diameter Secondary | 7.6 (mm) |
| Inside Diameter Primary | 26.1 (mm) |
