2041443-2
ATX PWR CONN 4 POS w Guiding P
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2041443-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

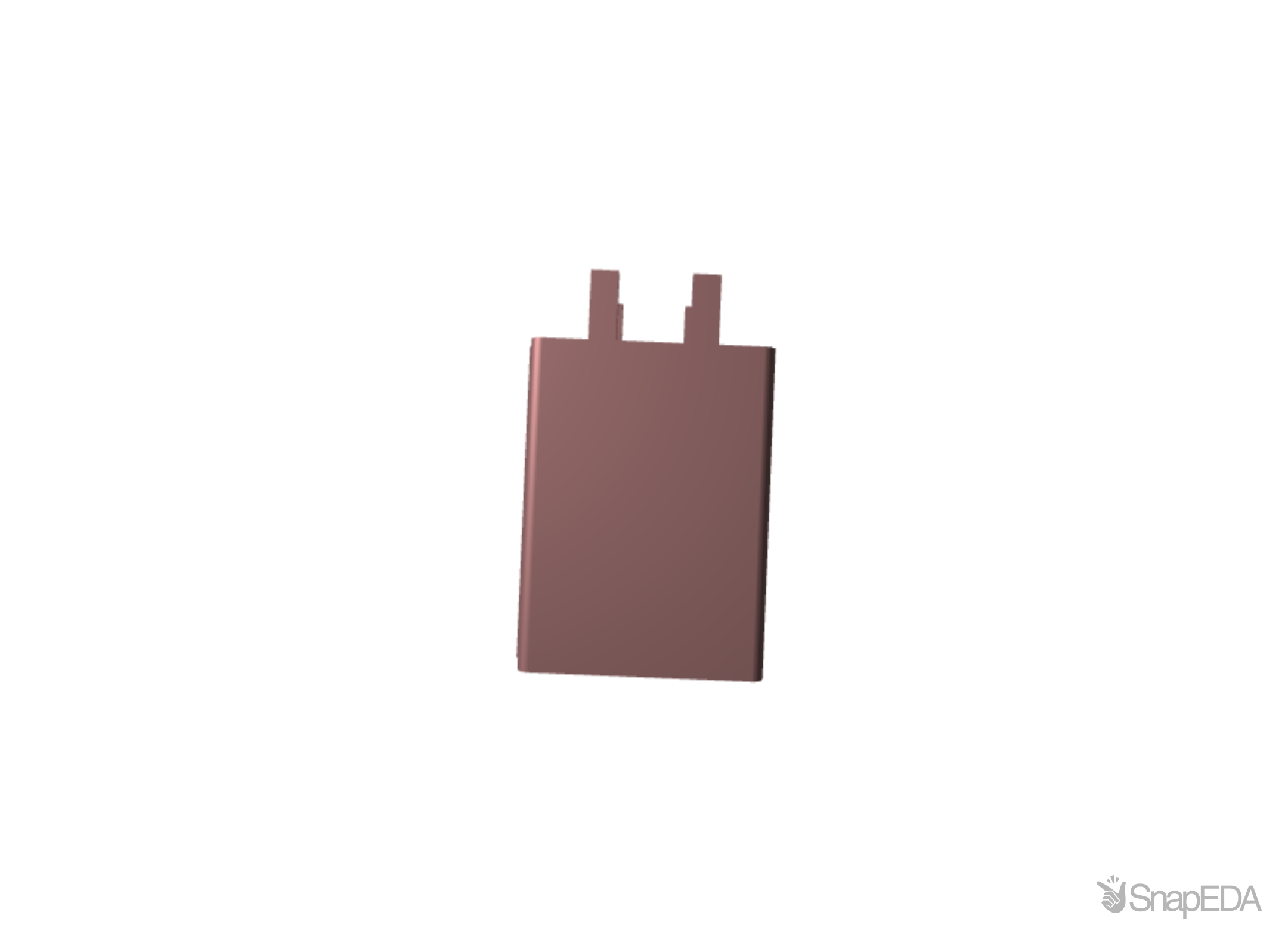

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2041443-2
| Part Name | 2041443-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 4.2 |
| High Temperature Header | No |
| Circuit Application | Power |
| TE Internal Number | 2041443-2 |
| Housing Material | PA 9T GF |
| Width | 9.6 |
| Guide Pin | With |
| Operating Voltage (V) | 250 |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Guide Post |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.6 |
| Contact Plating Material | Tin |
| Flange | Without |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Row-to-Row Spacing | 3.75 |
| Number of Rows | 2 |
| Number of Signal Positions | 0 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Operating Temperature Range | -13 to 185 |
| Shielded | No |
| Packaging Method | Box & Tray |
| Connector Type | Connector Assembly |
| Packaging Quantity | 480 |
| Length | 9.85 |
| Number of Positions | 4 |
| Mating Alignment | With |
| Insertion Force | Standard |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Mating Retention | With |
| Product Type | Connector |
| UL Flammability Rating | UL 94V-0 |
| Height | 12.8 |
| ???? | Ivory |
| Contact Current Rating (Max) (A) | 9 |
| Contact Type | Socket |
| Number of Power Positions | 4 |
| Mating Retention Type | Locking Latch |
