205090-2
Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 205090-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

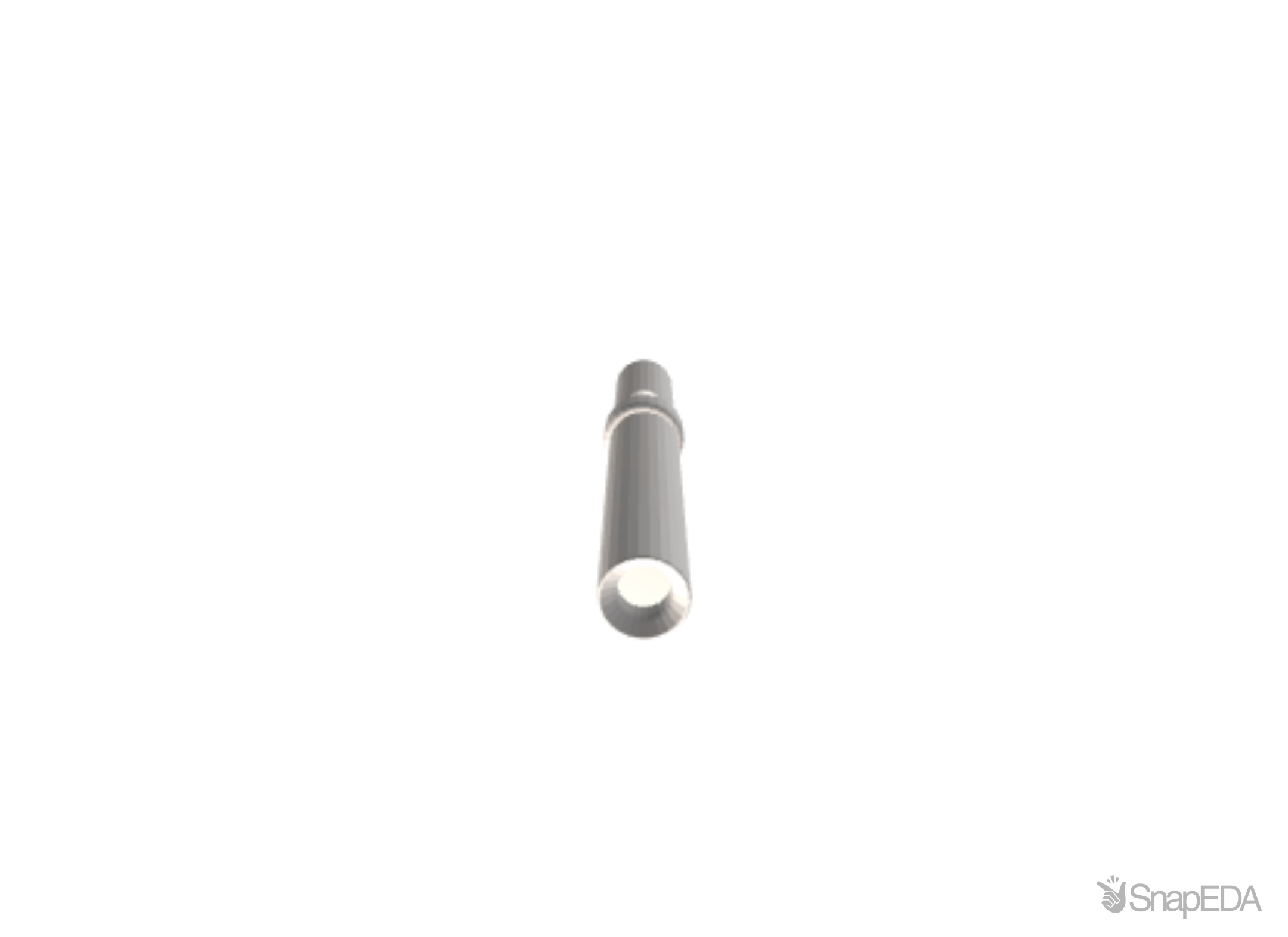

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 205090-2
| Part Name | 205090-2 |
| Manufacturer | TE Connectivity |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Insulation Diameter (Max) | .072 |
| Color Code | Yes |
| TE Internal Number | 205090-2 |
| Termination Method to Wire & Cable | Crimp |
| Contact Underplating Material | Nickel |
| Contact Base Material | Copper Alloy |
| Contact Size | 20 |
| Operating Temperature Range | -55 – 125 |
| Packaging Method | Tape |
| Packaging Quantity | 5000 |
| Accepts Wire Insulation Diameter Range | .072 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| 端子の下地めっきの材料 | Nickel |
| Termination Post Length | .346 |
| Contact Current Rating (Max) (A) | 7.5 |
| Contact Color Bands | Orange, Blue, Gray |
| Contact Mating Area Plating Thickness | 50 |
| Product Type | Contact |
| High Current (A) | No |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Gold |
| Post Diameter | .04 |
| Wire Size | .2 – .6 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 205090-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
51,932
|
|
Visit Site | |
|
★ Featured
|
2,905
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Heilind Americas |
|
5,000 x $1.67
|
Visit Site | |
| Newark |
709
|
|
Visit Site | |
| Onlinecomponents |
16,481
|
|
Visit Site | |
| Powell Electronics |
28
|
|
Visit Site | |
| Sager |
|
5,000 x $2.08
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| Verical |
16,250
|
|
Visit Site |
