205201-7

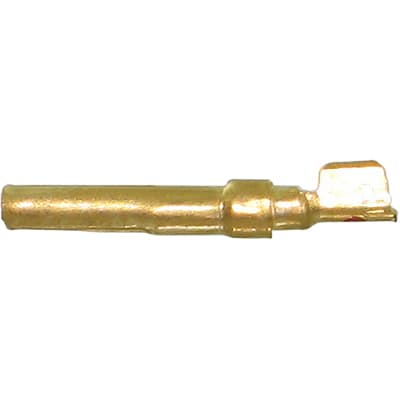

AMPLIMITE HDP-20 Socket Contact 24-20AWG Gold Flash over Nickel Crimp | TE Connectivity 205201-7
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 205201-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

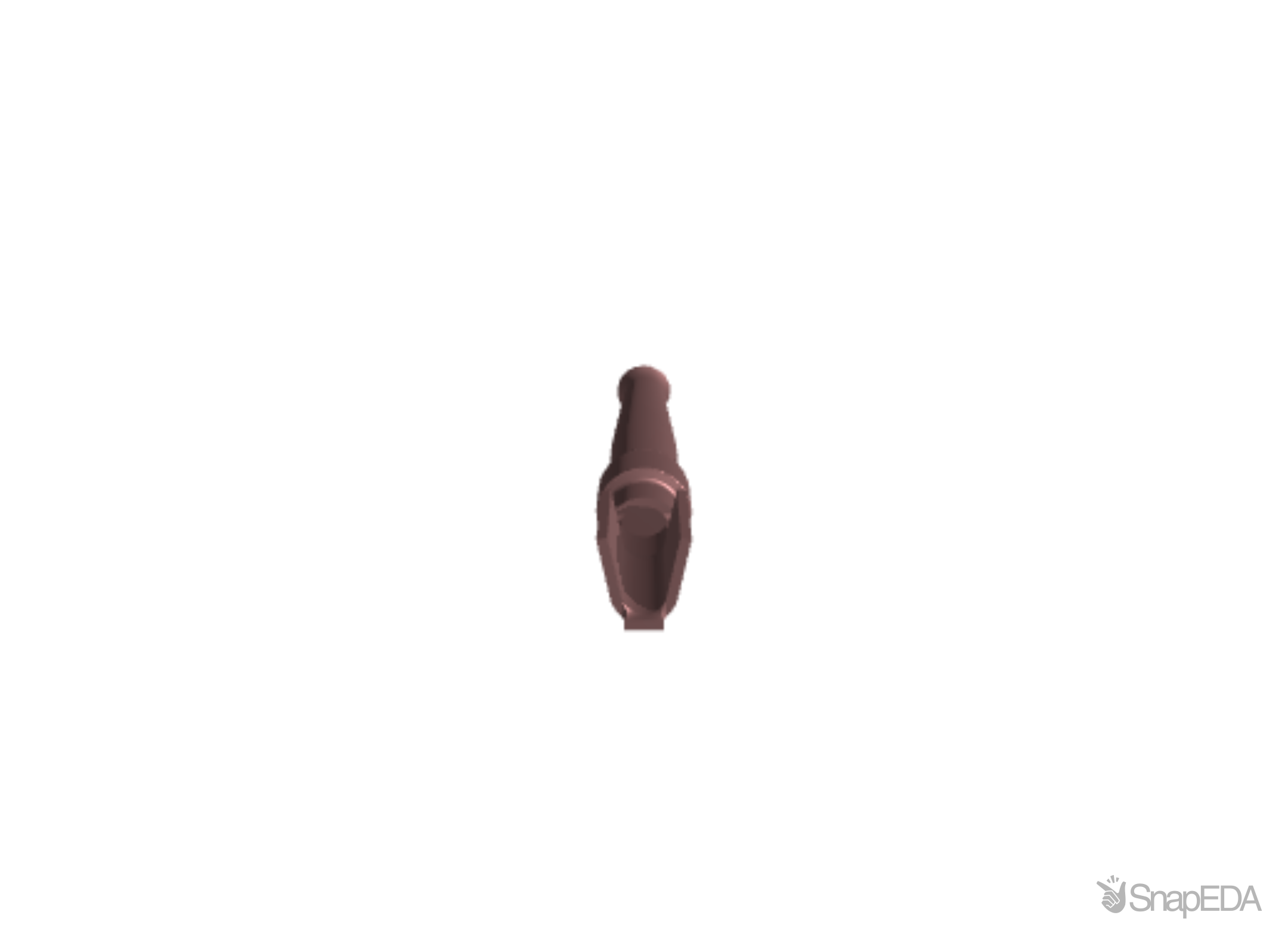

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 205201-7
| Part Name | 205201-7 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Cable-to-Cable |
| Insulation Diameter (Max) | .068 |
| Color Code | Red |
| TE Internal Number | 205201-7 |
| Termination Method to Wire & Cable | Crimp |
| Contact Underplating Material | Nickel |
| Product Type | Contact |
| Wire Insulation Support | Without |
| Contact Size | 20 |
| Operating Temperature Range | -55 – 105 |
| Packaging Method | Loose Piece |
| Packaging Quantity | 1000 |
| Contact Base Material | Copper Alloy |
| Accepts Wire Insulation Diameter Range | .068 |
| Contact Mating Area Plating Material | Gold Flash |
| RoHS | True |
| 端子の下地めっきの材料 | Nickel |
| Grade | Standard |
| ピン径 | .04 |
| Contact Current Rating (Max) (A) | 2 |
| Contact Retention Type Within Housing | Crimp Snap-In |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Gold Flash |
| Wire Size | 24 – 20 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
