205203-3

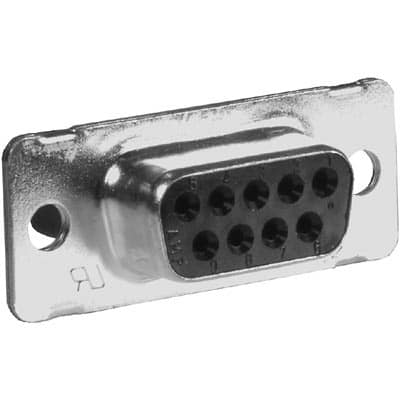

D-Sub Crimp Connector, 9 Position, Size 20, Mating Retention, AMPLIMITE Series | TE Connectivity 205203-3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 205203-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

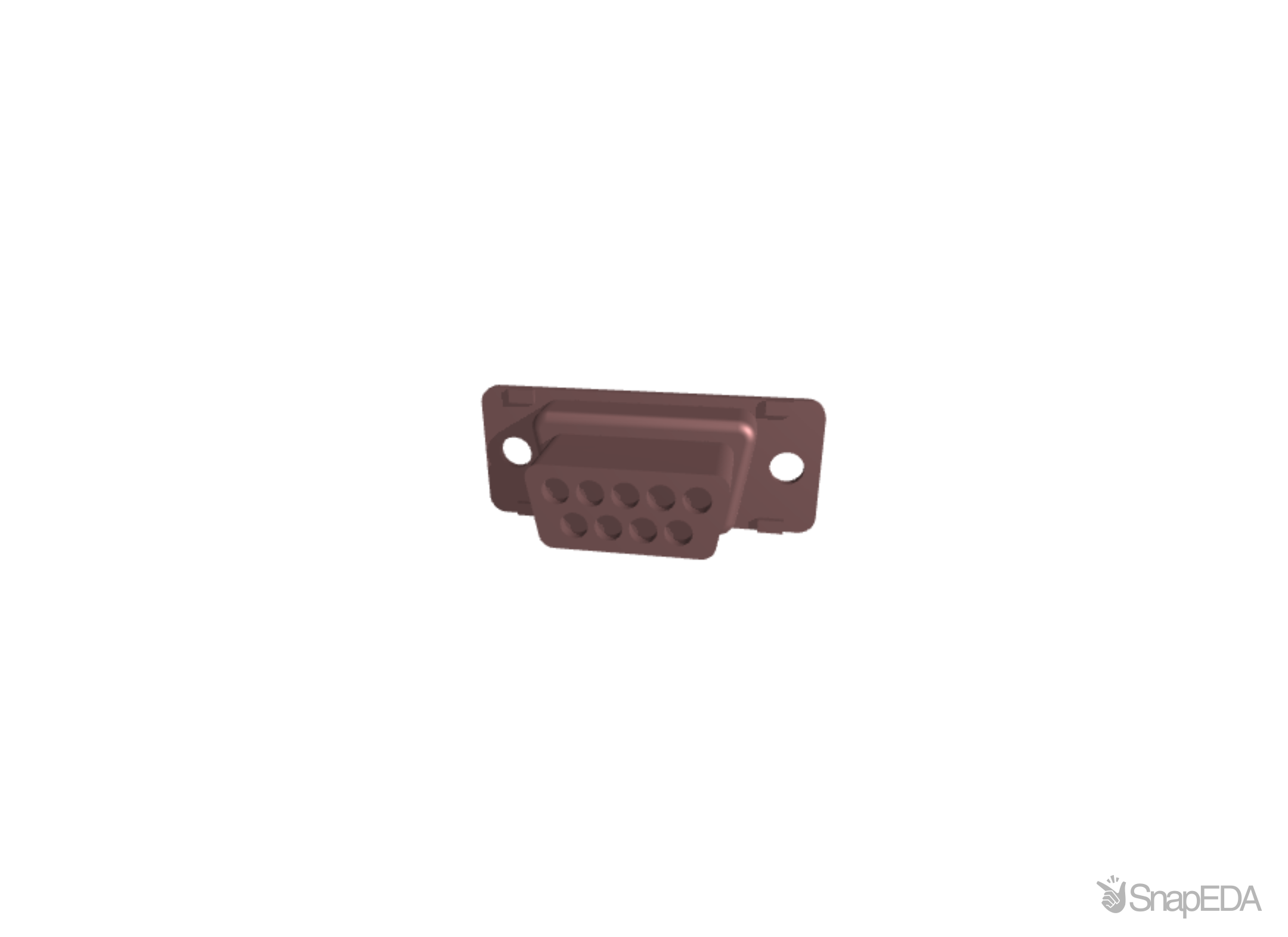

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 205203-3
| Part Name | 205203-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Shell Plating Material | Tin |
| Centerline (Pitch) | .108 |
| Shell Material | Steel |
| Circuit Application | Signal |
| Insert Flammability Rating | UL 94V-0 |
| Housing Material | Thermoplastic |
| Shell Size | 1 |
| For Use With | Crimp Snap-in |
| Connector Style | Receptacle |
| Mating Connector Lock Type | Mounting Holes |
| Number of Positions | 9 |
| TE Internal Number | 205203-3 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Cable-to-Cable |
| Housing Color | Black |
| Product Type | Connector |
| Contact Size | 20 |
| Operating Temperature Range | -55 – 105 |
| Shielded | Yes |
| Packaging Method | Package |
| Packaging Quantity | 800 |
| Grounding Indents | Without |
| Insert Material | Thermoplastic |
| RoHS | True |
| Shield Plating Material | Tin |
| Sealable | No |
| Grade | Standard |
| Shield Material | Steel |
| UL Flammability Rating | UL 94V-0 |
| Shell Type | Full Metal Shell |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3.7 (A) |
| Dimensions | 30.81 x 17.9 x 12.55 (mm) |
| Mounting Type | Cable Mount |
| Voltage Rating (V) | 250.0 V |
| Gender | Female |
| Series | Amplimite HDP-20 |
| Body Orientation | Straight |
| Depth | 17.9 (mm) |
| Housing Material | Steel |
| Width | 12.55 (mm) |
| Length | 30.81 (mm) |
| Minimum Operating Temperature | -55.0 (°C) |
| Termination Method | Crimp |
| Number Of Contacts | 9 |
| Maximum Operating Temperature | +105 (°C) |
