205206-8
Conn D-Sub Cable Plug 15Pos STR HDP-20Series CrimpSnap 20AWG MetalShell | TE Connectivity 205206-8
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 205206-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

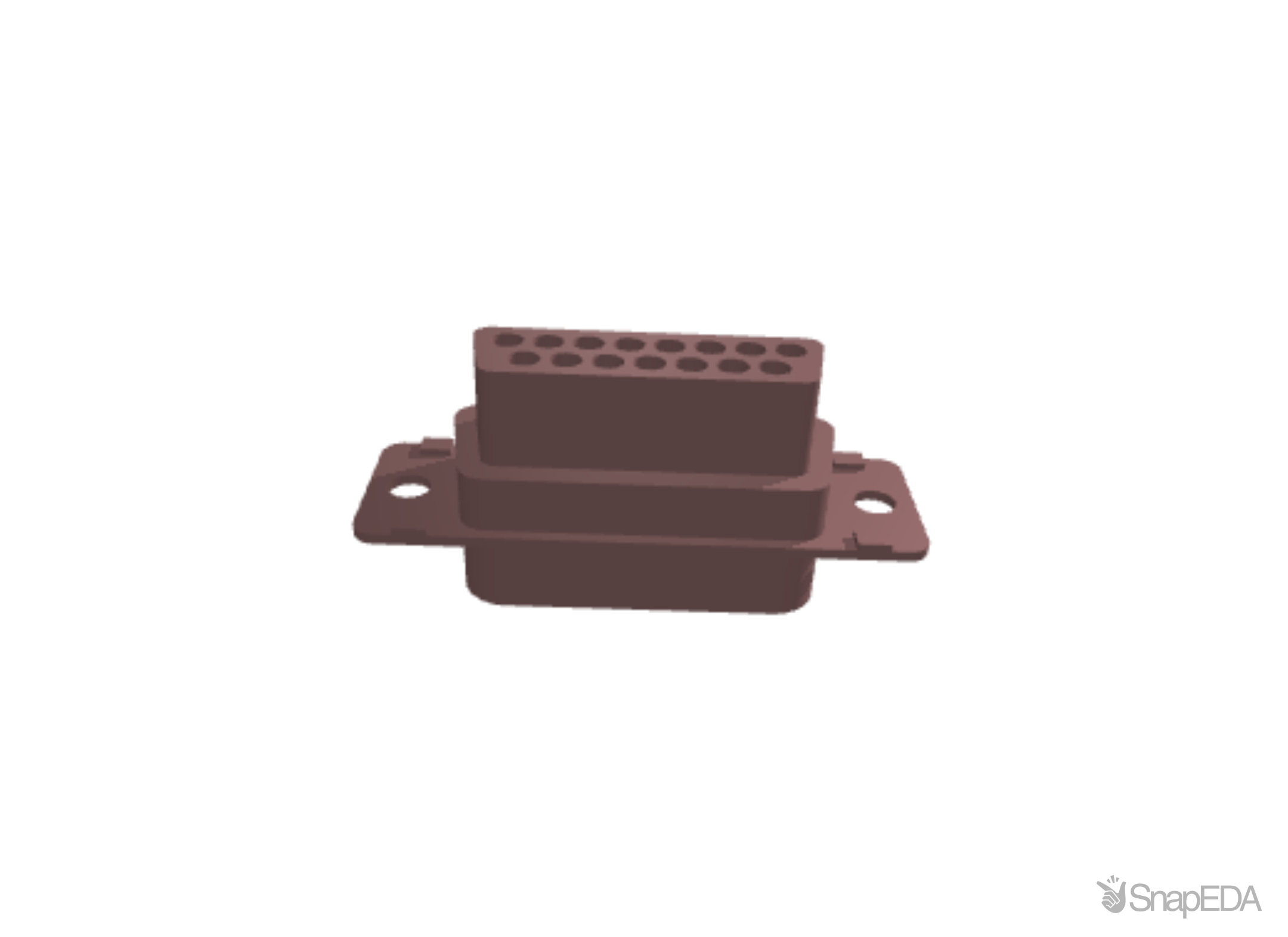

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 205206-8
| Part Name | 205206-8 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Shell Plating Material | Tin |
| Centerline (Pitch) | .108 |
| Shell Material | Steel |
| Circuit Application | Signal |
| Insert Flammability Rating | UL 94V-0 |
| Shell Size | 2 |
| For Use With | Crimp Snap-in |
| Connector Style | Plug |
| Mating Connector Lock Type | Mounting Holes |
| Number of Positions | 15 |
| TE Internal Number | 205206-8 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Cable-to-Cable |
| Product Type | Connector |
| Contact Size | 20 |
| Operating Temperature Range | -67 – 221 |
| Shielded | Yes |
| Packaging Method | Package |
| Packaging Quantity | 400 |
| Grounding Indents | Without |
| Insert Material | Thermoplastic |
| RoHS | True |
| Sealable | No |
| Grade | Standard |
| Shield Material | Steel |
| UL Flammability Rating | UL 94V-0 |
| Shell Type | Full Metal Shell |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the 205206-8 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
1,547
|
400 x $1.08
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Chip One Stop |
110
|
|
Visit Site | |
| Conrad |
702
|
1 x $2.33
|
Visit Site | |
| Farnell UK |
821
|
|
Visit Site | |
| Heilind Americas |
7,070
|
|
Visit Site | |
| Newark |
486
|
|
Visit Site | |
| Powell Electronics |
668
|
|
Visit Site | |
| RS Americas |
146
|
1 x $3.27
|
Visit Site | |
| Sager |
|
800 x $1.57
|
Visit Site | |
| TE Store |
1,336
|
|
Visit Site | |
| TME |
110
|
|
Visit Site | |
| element14 Singapore |
486
|
|
Visit Site |
No issues have been reported for the 205206-8
