205563-2
Conn, D-Sub, Cable Socket, 50Pos, STR, 109 Series, Crimp, 20AWG | TE Connectivity 205563-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 205563-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

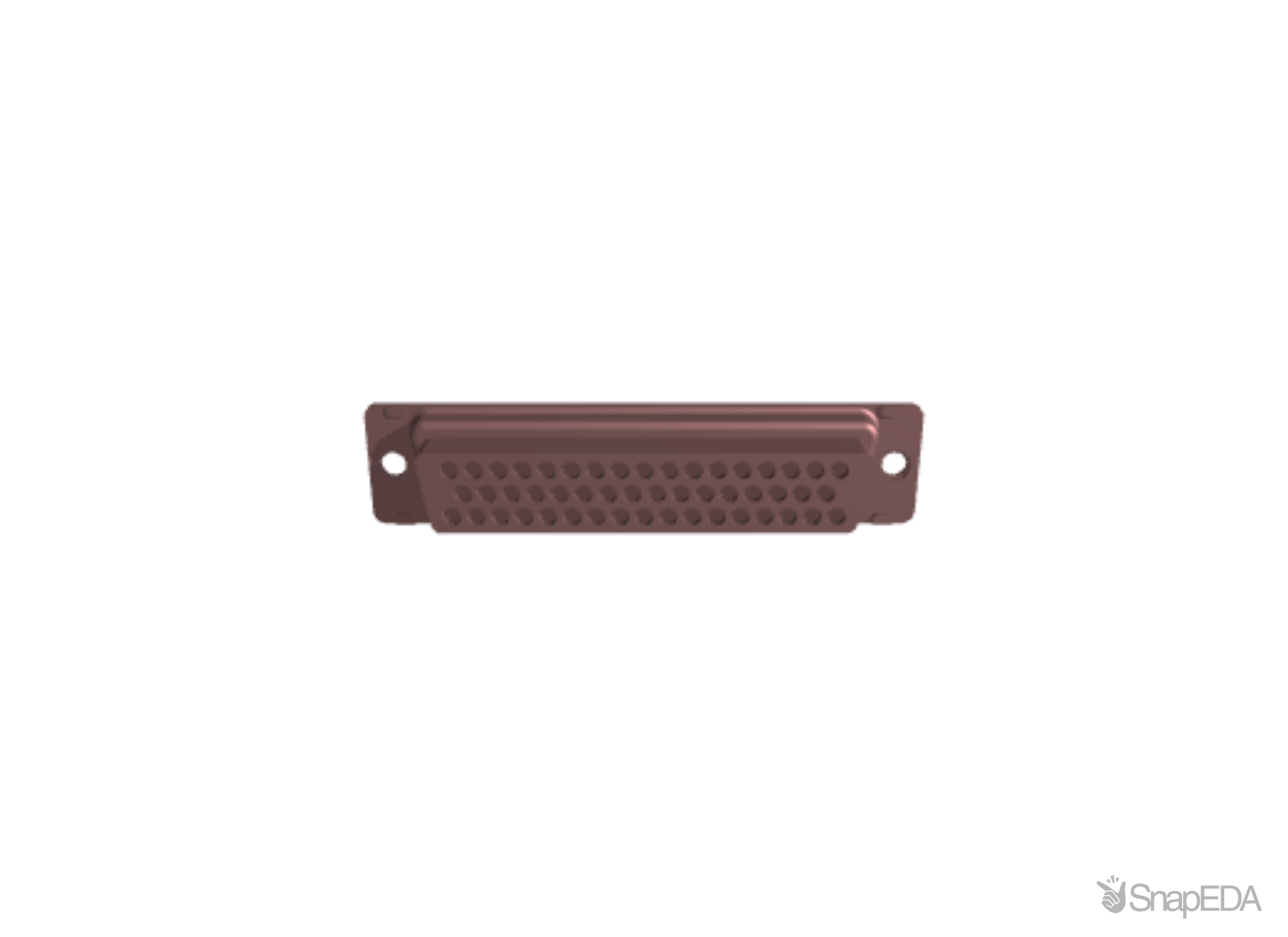

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 205563-2
| Part Name | 205563-2 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Cadmium |
| Category | Connectors |
| Centerline (Pitch) | .109 |
| Shell Material | Steel |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Shell Size | 5 |
| Connector Style | Receptacle |
| Number of Positions | 50 |
| TE Internal Number | 205563-2 |
| Blindmate | No |
| Connector System | Cable-to-Cable |
| Non-Magnetic | No |
| Sealable | No |
| Contact Size | 20 |
| Retention Clip Material | Stainless Steel |
| Operating Temperature Range | -22 – 257 |
| Mounting Hole Diameter | 3.05 |
| NASA Qualification | No |
| Packaging Method | Package |
| ULTRA-LITE Connector | No |
| Contact Mating Area Plating Material | Gold |
| RoHS | N |
| Power/Signal/Coax Combination | No |
| Contact Base Material | Leaded Nickel Copper |
| Contact Current Rating (Max) (A) | 7.5 |
| Contact Mating Area Plating Thickness | 50 |
| Product Type | Connector |
| Contact Type | Socket |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | AMPLIMITE |
| Gender | Female |
| Number Of Contacts | 50 |
| Mounting Type | Box Mount |
| Pitch | 2.77 (mm) |
