205838-1
AMP CPC Series 2 205838-1 Miniature Circular Connector 8 pos. Socket Terminal Size 11 Shell Black
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 205838-1 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

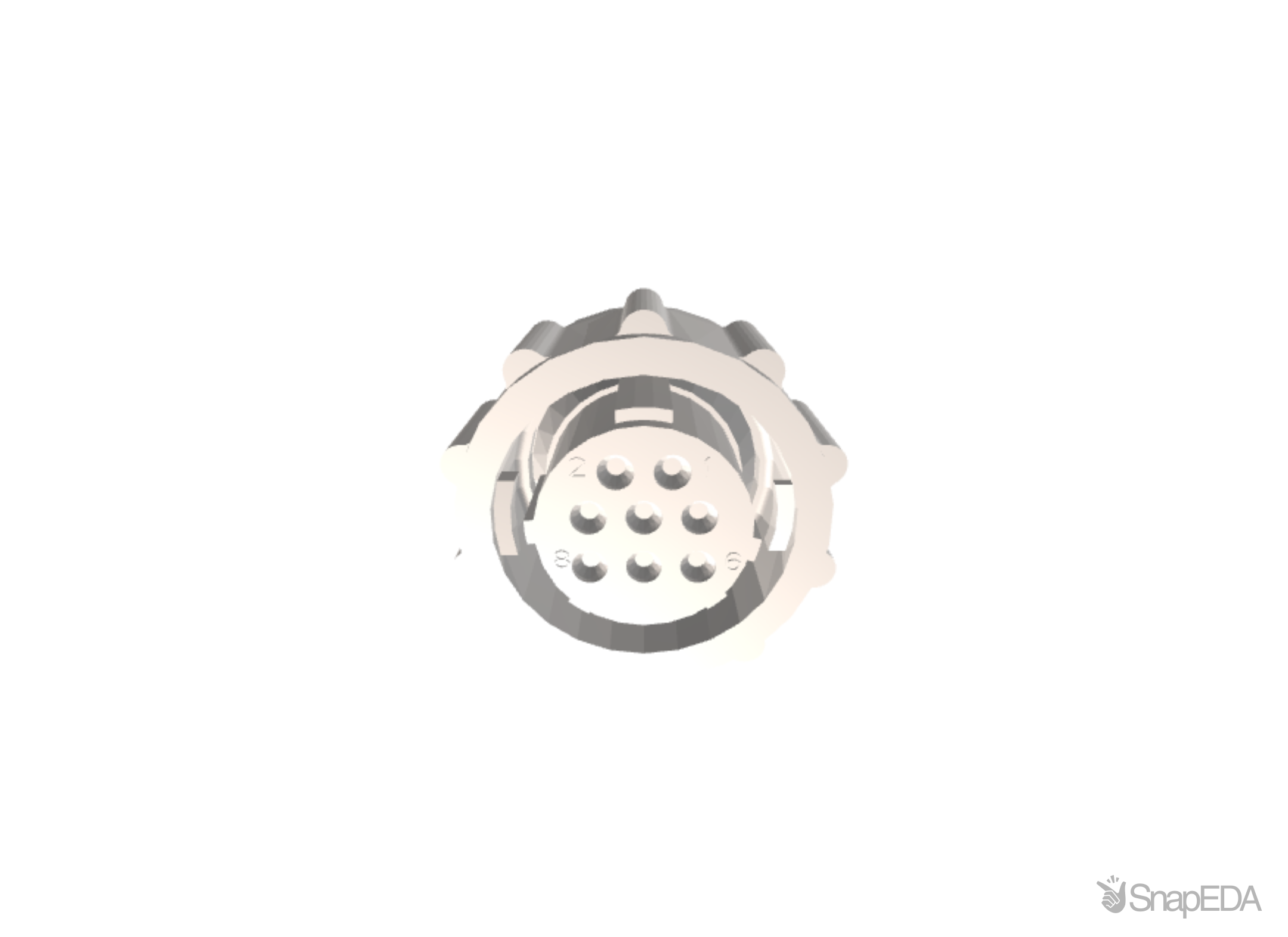

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 205838-1
| Part Name | 205838-1 |
| Manufacturer | TE Connectivity / AMP |
| Mating Alignment Type | Keyed |
| Contact Protection | With |
| UL Flammability Rating | UL 94V-0 |
| Mating Retention | With |
| Number of Power Positions | 0 |
| Shell Size | 11 |
| Seal Type | Wire Entry Seal |
| Number of Positions | 8 |
| VDE Tested | No |
| Screw & Hole Thread Size | 5/8-24 UNEF-2A |
| TE Internal Number | 205838-1 |
| Connector System | Wire-to-Wire |
| Housing Type | Plug |
| Housing Color | Black |
| Number of Signal Positions | 8 |
| Product Type | Housing |
| Reverse Numbering | Without |
| Body Orientation | Straight |
| Packaging Method | Standard |
| Packaging Quantity | 100 |
| Fluid Resistance | None |
| Accepts Wire Insulation Diameter Range | 1.73 |
| Mating Alignment | With |
| Panel Mount Feature Type | Flange |
| Housing Material | Thermoplastic |
| Sealable | No |
| Reverse Gender | Standard |
| Shell Type | All Plastic |
| Mating Retention Type | Threaded Coupling |
| Contact Type | Socket |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Termination Method | Crimp |
| Mating Type | Threaded |
| Mounting Type | Cable Mount |
| Series | CPC Series 2 |
| Body Orientation | Straight |
| Shell Size | 11 |
| Plug Socket | Plug |
| Contact Gender | Female |
| Distrelec Product Id | 30038550 |
| Number Of Contacts | 8 |
| Connector Size | Standard |
