2065657-1
zd Plus, 4 pair, receptacle assy
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2065657-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

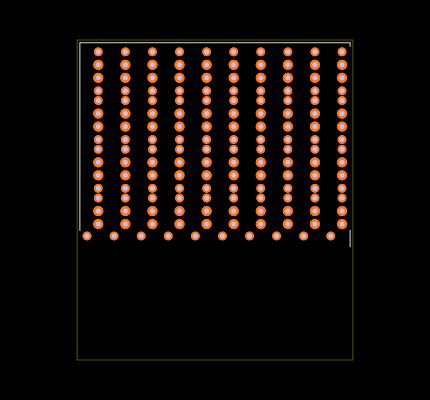

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2065657-1
| Part Name | 2065657-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .098 |
| Circuit Application | Signal |
| AdvancedTCA Specified Product | No |
| Housing Material | Polyester - GF |
| Contact Termination Type | Through Hole |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Plug |
| Termination End Plating Material | Tin over Nickel |
| Number of Positions | 80 |
| CompactPCI Designation | None |
| Operating Temperature Range | -65 – 105 |
| Part Category | High Speed Backplane Connectors |
| TE Internal Number | 2065657-1 |
| Number of Pairs | 40 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Shielded | No |
| Number of Rows | 4 |
| Housing Color | Gray |
| Termination Method | Press-Fit |
| Sealable | No |
| Backplane Architecture | Traditional Backplane/Coplanar |
| Connector Mounting Type | Board Mount |
| Number of Columns | 10 |
| Termination End Plating Material Finish | Matte |
| Pairs per Column | 4 |
| Data Rate | ≤12 |
| Packaging Method | Tube |
| Connector Type | Connector Assembly |
| Packaging Quantity | 20 |
| Contact Configuration | Compliant Pin |
| Module Length | 24.9 |
| Interface Type | HM-Zd Plus |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Contact Base Material | Copper-Nickel-Silicon |
| Shield Material | Phosphor Bronze |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .76 |
| Contact Current Rating (Max) (A) | .7 |
| Contact Type | Socket |
| Make First / Break Last | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2065657-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
179
|
|
Visit Site | |
|
★ Featured
|
226
|
|
Visit Site | |
|
★ Featured
|
282
|
|
Visit Site | |
|
★ Featured
|
999
|
20 x $15.38
|
Visit Site | |
| Avnet America |
9
|
|
Visit Site | |
| Chip One Stop |
643
|
|
Visit Site | |
| Farnell UK |
579
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
643
|
10 x $40.12
|
Visit Site | |
| Onlinecomponents |
393
|
|
Visit Site | |
| Powell Electronics |
424
|
|
Visit Site | |
| TME |
640
|
|
Visit Site | |
| TTI Americas |
1,260
|
20 x $27.62
|
Visit Site | |
| Verical |
124
|
|
Visit Site |
No issues have been reported for the 2065657-1
