206837-2
Circular Connector, CPC PLUG,SZ 23-24,SMALL PACK | TE Connectivity 206837-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 206837-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

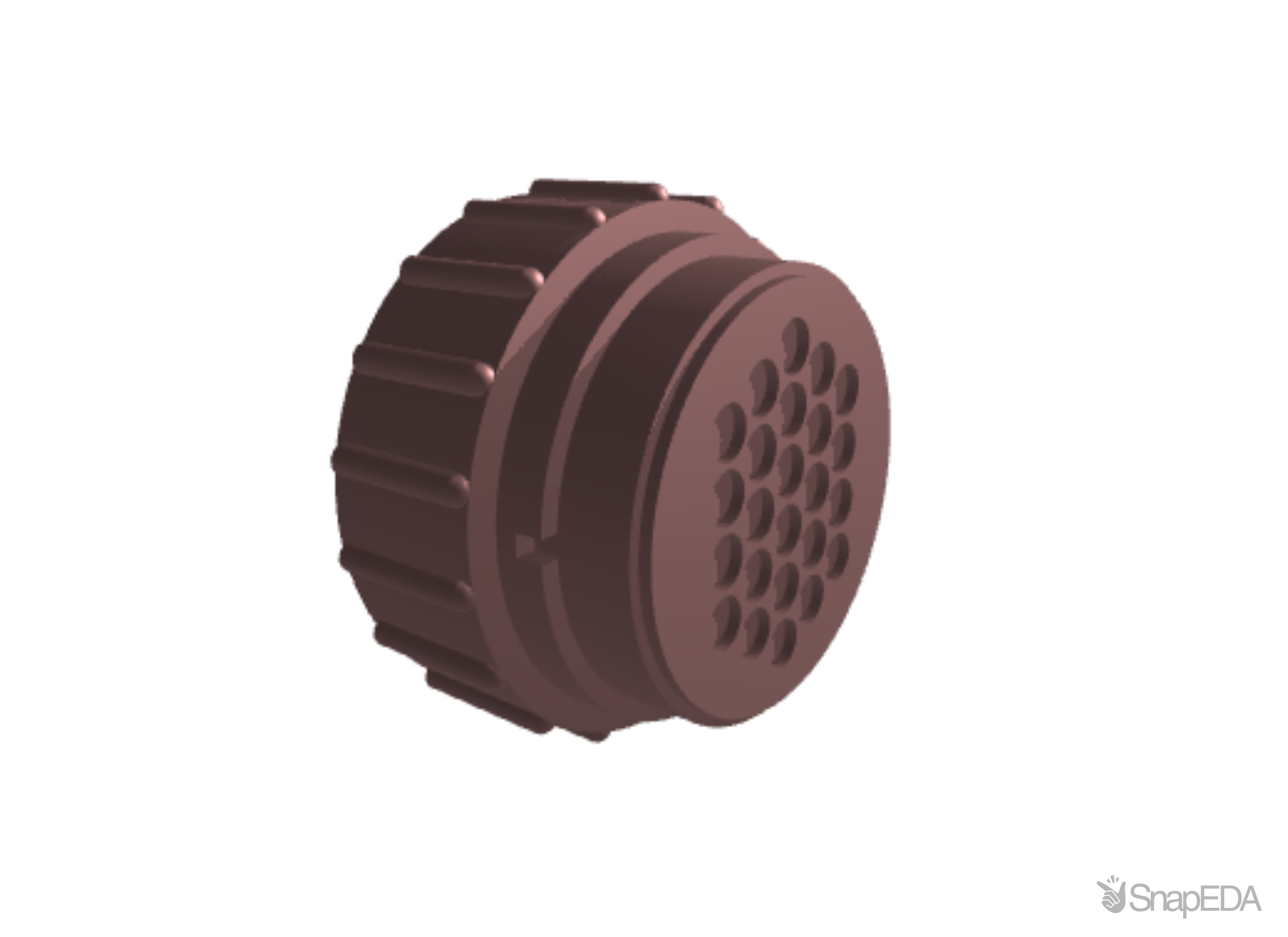

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 206837-2
| Part Name | 206837-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Keyed |
| Keying | A |
| Contact Protection | With |
| Mating Retention Type | Threaded Coupling |
| Housing Material | Nylon 6/6 GF |
| Number of Power Positions | 0 |
| Shell Size | 23 |
| Number of Positions | 24 |
| VDE Tested | No |
| Screw & Hole Thread Size | 1-3/8 - 18 UNEF-2A |
| TE Internal Number | 206837-2 |
| Connector System | Wire-to-Wire |
| Housing Type | Plug |
| Housing Color | Black |
| Number of Signal Positions | 24 |
| Sealable | No |
| Reverse Numbering | Without |
| Shielded | No |
| Body Orientation | Straight |
| Packaging Method | Small Pack |
| Packaging Quantity | 5 |
| Fluid Resistance | None |
| Accepts Wire Insulation Diameter Range | .15 |
| Mating Alignment | With |
| Panel Mount Feature Type | Flange |
| RoHS | True |
| Mating Retention | With |
| Product Type | Housing |
| Reverse Gender | Standard |
| Shell Type | All Plastic |
| UL Flammability Rating | UL 94V-0 |
| Contact Type | Socket |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 206837-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
51
|
|
Visit Site | |
| Arrow Electronics |
1
|
1 x $8.04
|
Visit Site | |
| Onlinecomponents |
407
|
|
Visit Site | |
| Verical |
1
|
1 x $18.38
|
Visit Site |
