2081005-1
SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch; Through Hole, Right Angle Solder
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2081005-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

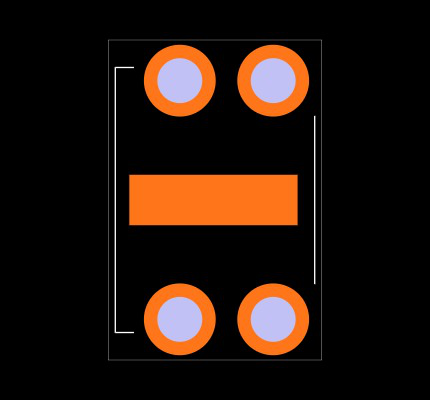

Footprint
No web preview
This Footprint is Available for

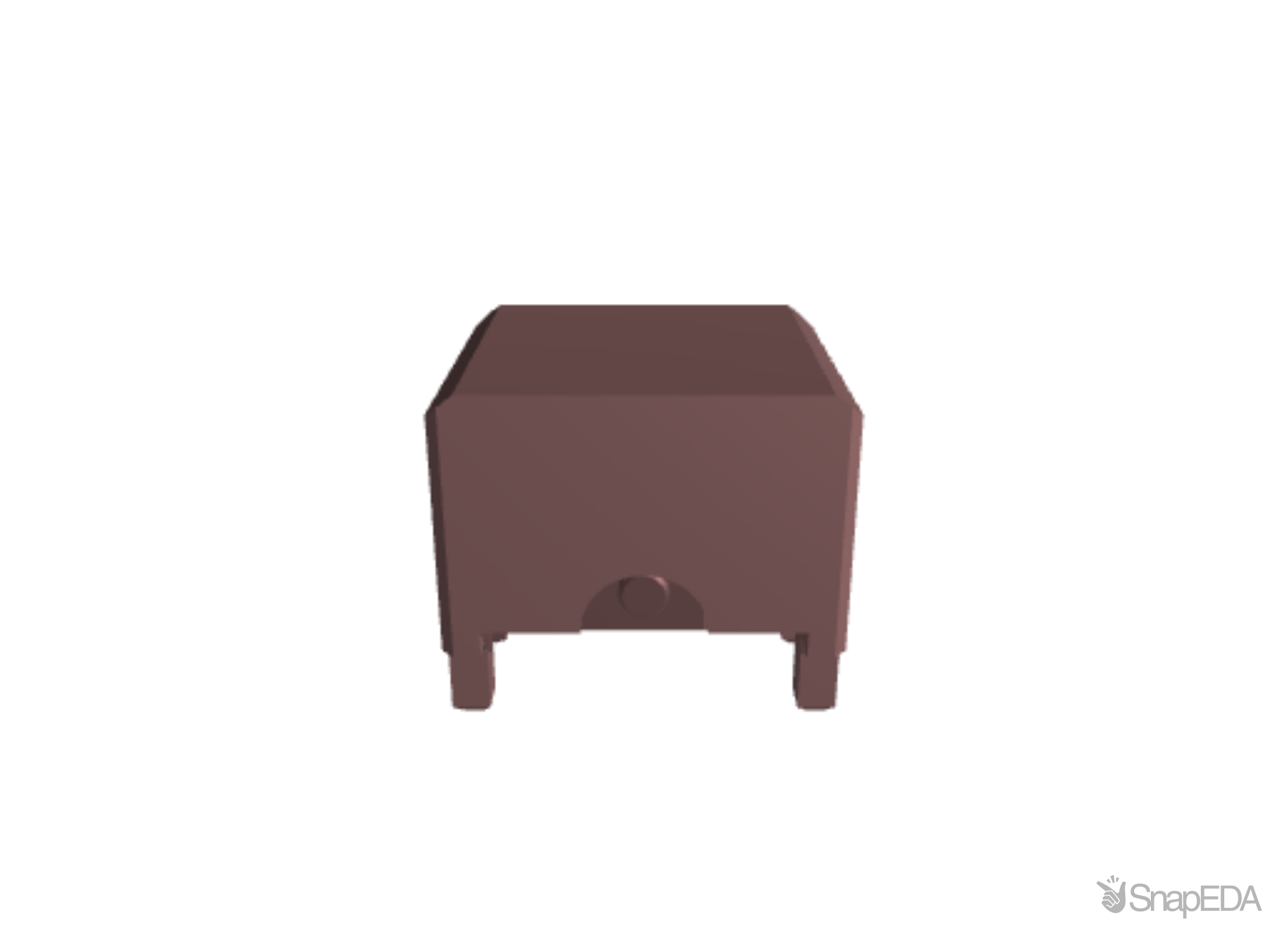

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2081005-1
| Part Name | 2081005-1 |
| Manufacturer | TE Connectivity |
| コネクタ製品タイプ | Connector Assembly |
| RF Contact Captivation Method | Mechanical |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| Termination Method to Printed Circuit Board | Through Hole |
| RF Connector Style | Jack |
| RF Connector Coupling Mechanism | Screw |
| Body Finish | Bright |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | PTFE |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 2081005-1 |
| PCB Tail Length | .115 |
| PCB Mount Orientation | Right Angle |
| Connector System | Cable-to-Board |
| Body Plating Material | Tin |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Panel |
| Product Length | .646 |
| RF Connector Mated Outer Diameter (Approximate) | 6.35 |
| Operating Temperature Range | -65 – 165 |
| Packaging Method | Reel |
| RF Interface | SMA |
| Packaging Quantity | 250 |
| Detent | Without |
| Body Material | Zinc |
| Number of Positions | 1 |
| Operating Frequency | 11 |
| RoHS | True |
| RF Connector Contact Configuration | Not Captivated |
| RF Connector Center Contact Plating Material | Gold |
| Height Above PC Board | .381 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
