208716-1
Connector Metal Shell CPC Plug Assy 7 Pos. Sz. 14 Series 1 Free Hanging | TE Connectivity 208716-1
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 208716-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

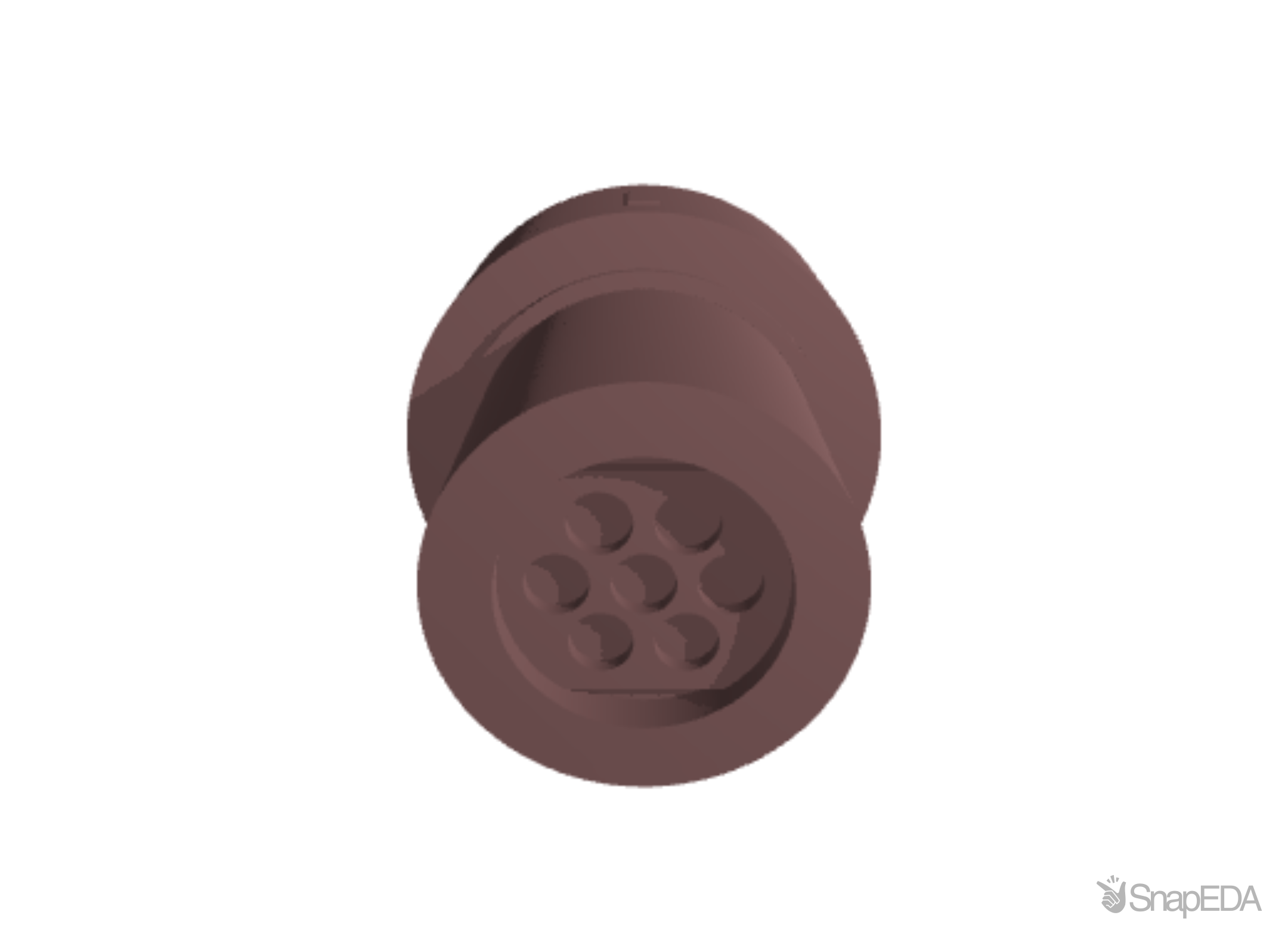

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 208716-1
| Part Name | 208716-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Keyed |
| Contact Protection | With |
| UL Flammability Rating | UL 94V-0 |
| Mating Retention | With |
| Number of Power Positions | 0 |
| Shell Size | 14 |
| Connector & Contact Terminates To | Wire & Cable |
| VDE Tested | No |
| Screw & Hole Thread Size | 7/8-20 UNEF-2A |
| TE Internal Number | 208716-1 |
| Housing Plating Material | Nickel |
| Connector System | Wire-to-Wire |
| Housing Type | Plug |
| Housing Color | Black |
| Number of Signal Positions | 7 |
| Sealable | No |
| Reverse Numbering | Without |
| Body Orientation | Straight |
| Packaging Method | Carton |
| Packaging Quantity | 12 |
| Fluid Resistance | None |
| Number of Positions | 7 |
| Mating Alignment | With |
| RoHS | True |
| Housing Material | Thermoplastic |
| Product Type | Housing |
| Reverse Gender | Reverse |
| Shell Type | Metal |
| Mating Retention Type | Threaded Coupling |
| Contact Type | Pin |
| Accepts Wire Insulation Diameter Range | .105 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
