20SEP47M
47uF 20 V dc Polymer Aluminum Capacitor E7, OS-CON Series 3000h 8 (Dia) x 7mm | Panasonic Electronic Components 20SEP47M
Availability: In Stock
Package Type: RADIAL-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 20SEP47M by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

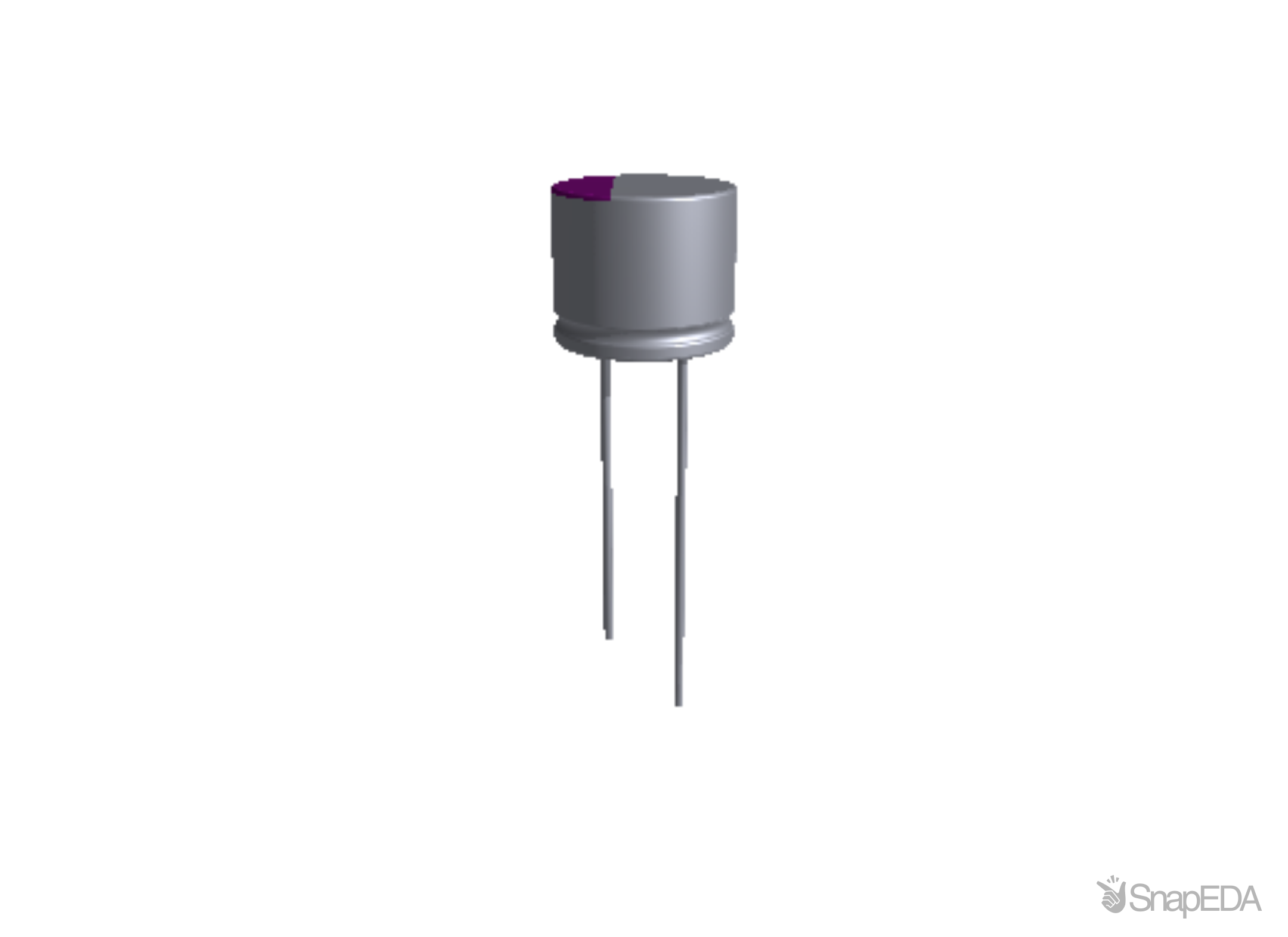

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 20SEP47M
| Part Name | 20SEP47M |
| Manufacturer | Panasonic |
| Category | Electronic Components |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 8 (mm) |
| Ripple Current (A) | 1.89 (A) |
| Leakage Current (A) | 470 μA |
| Mounting Type | Through Hole |
| Series | SEP |
| Dissipation Factor | 12 (%) |
| Height | 7 (mm) |
| Capacitance | 47 (µF) |
| Tolerance | ±20 (%) |
| Equivalent Series Resistance | 45 (mΩ) |
| Minimum Operating Temperature | -55 (°C) |
| Voltage (V) | 20 (V dc) |
| Lifetime | 3000 (h) |
| Lead Pitch | 3.5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Technology | Polymer |
| Polarised | Polar |
| Dimensions | 8 (Dia) x 7 (mm) |
Inventory for the 20SEP47M by Panasonic from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
39
|
|
Visit Site | |
|
★ Featured
|
1,680
|
1,410 x $0.24
|
Visit Site | |
| Arrow Asia |
28
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
68
|
|
Visit Site | |
| Newark |
82
|
|
Visit Site | |
| Onlinecomponents |
171
|
|
Visit Site | |
| RS UK |
100
|
|
Visit Site | |
| TTI Americas |
|
200 x $0.78
|
Visit Site | |
| Verical |
28
|
|
Visit Site | |
| element14 Singapore |
68
|
|
Visit Site |
No issues have been reported for the 20SEP47M
