20TDC100MD3
Series/Type: TDC, Rated Voltage (V): 20, Capacitance (µF): 100, Tolerance on Capacitance (%): +/-20, Category Temperature Range (°C): -55 to +125, Endurance@Temp.: 1000h@125°C, Rated Ripple Current (mArms): 1700, Rated Ripple Current (temp.) (°C): 105, Rated Ripple Current (freq.) (kHz): 100, ESR (mΩ): 55, ESR Frequency (kHz): 100, Leakage Current [Max.] (µA): 200, Dissipation Factor [Max.]: 0.1, Body Length (mm): 7.3, Body Width (mm): 4.3, Body Height (mm): 2.8, Size Code: D3L
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 20TDC100MD3 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

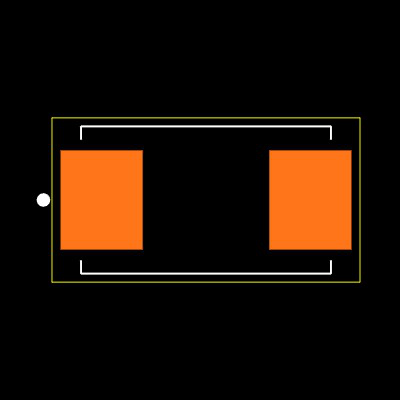

- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 20TDC100MD3
| Part Name | 20TDC100MD3 |
| Manufacturer | Panasonic |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
No issues have been reported for the 20TDC100MD3
