2106135-2

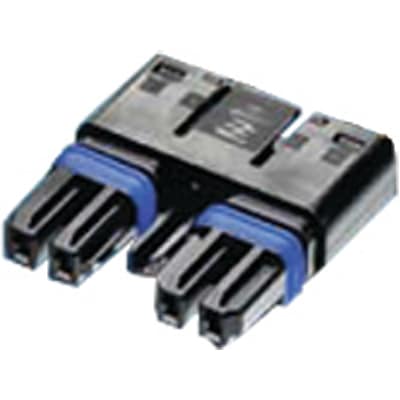

Slimseal SSL Series Male Connector Assembly with a 0.1m Cable Cable Mount | TE Connectivity 2106135-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2106135-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

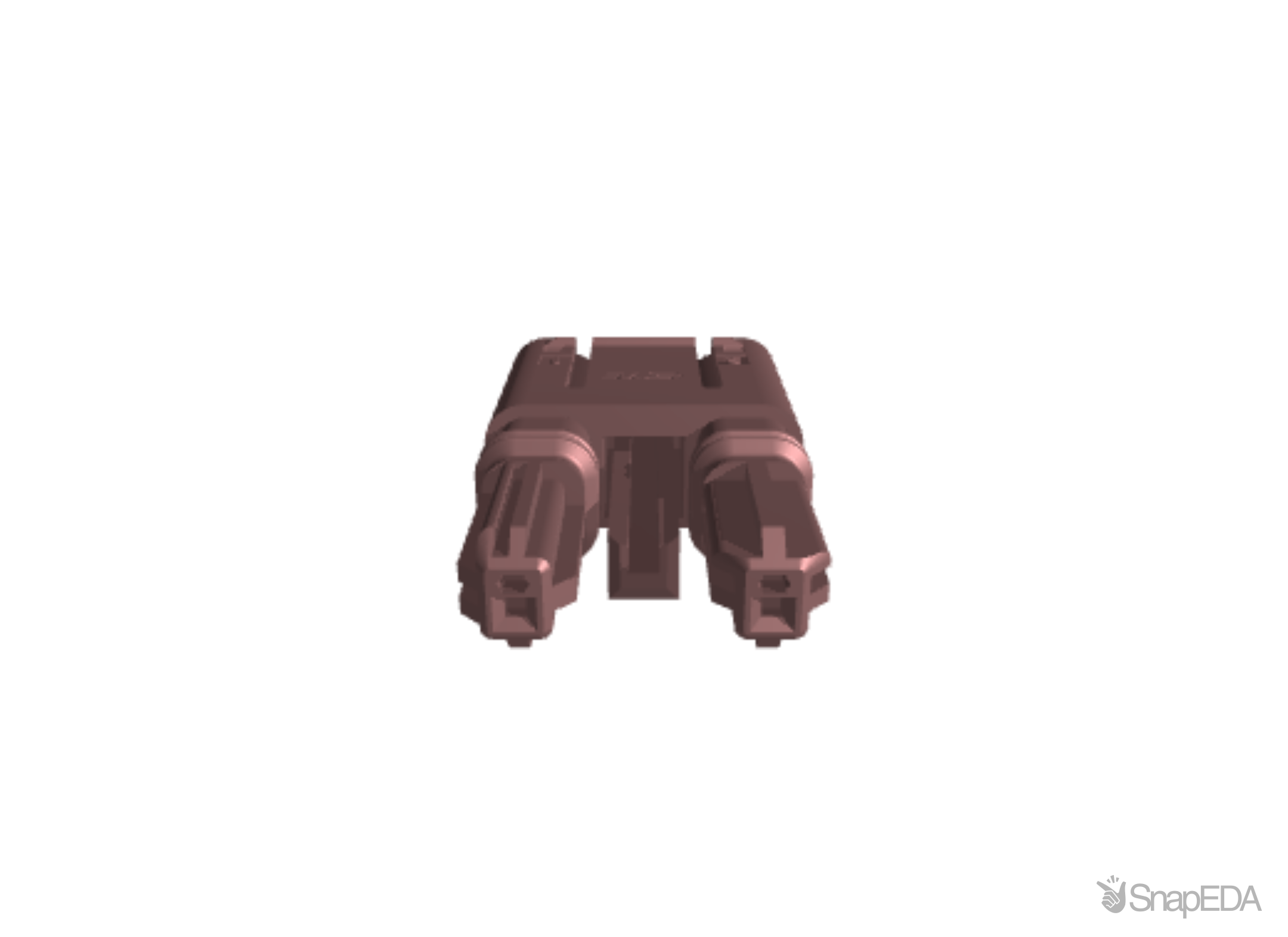

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2106135-2
| Part Name | 2106135-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Product Type | Connector |
| Centerline (Pitch) | 3.5 |
| Accepts Contact Style | Socket |
| Operating Temperature Range | -40 – 221 |
| TE Internal Number | 2106135-2 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) (A) | 5 |
| Wire/Cable Type | Discrete Wire |
| Voltage (V) | 400 |
| Connector Style | Plug |
| Sealable | Yes |
| Number of Positions | 2 |
| Housing Color | Black |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Cable Mount |
| Gender | Male |
| Colour | Black |
| Series | SlimSeal SSL |
| Type | Connector Assembly |
| Cable Length | 0.1 (m) |
Inventory for the 2106135-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
9,732
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
38
|
|
Visit Site | |
| Heilind Americas |
684
|
|
Visit Site | |
| Newark |
|
2,500 x $2.39
|
Visit Site | |
| RS UK |
88
|
1 x $2.12
|
Visit Site | |
| Sager |
|
3,000 x $2.40
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the 2106135-2
