2106489-2

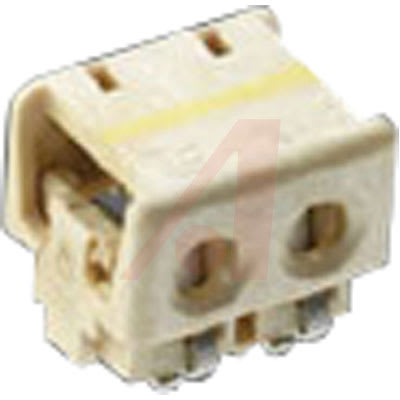

Connector; Lighting; Thru Hole-IDC; 2 Position; 18AWG | TE Connectivity 2106489-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2106489-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2106489-2
| Part Name | 2106489-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Termination Method to Printed Circuit Board | Through Hole |
| Sealable | No |
| Centerline (Pitch) | .157 |
| Operating Temperature Range | -40 – 105 |
| Circuit Application | Power |
| TE Internal Number | 2106489-2 |
| Connector Type | Connector Assembly |
| Connector System | Wire-to-Board |
| Contact Current Rating (Max) (A) | 8.5 |
| Height | .228 |
| Number of Positions | 2 |
| Connector Mounting Type | Board Mount |
| Connector Style | Receptacle |
| Wire Size | 18 – 16 |
| Connector & Contact Terminates To | Printed Circuit Board |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
