2110989-1

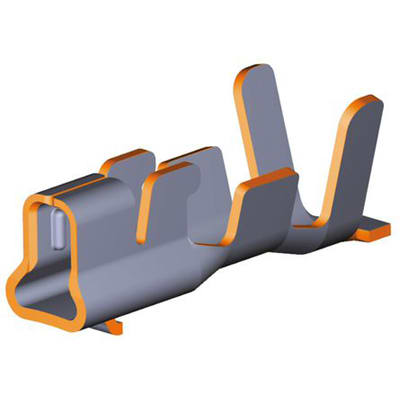

Economy Power 2.5 PCB Conn Contact, Female, Crimp, Tin Plating 22 to 26 AWG | TE Connectivity 2110989-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2110989-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2110989-1
| Part Name | 2110989-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .098 |
| Circuit Application | Signal |
| Width | 6.5 mm |
| Wire/Cable Type | Discrete Wire |
| Crimp Area Plating Thickness | .2 |
| Connector & Contact Terminates To | Wire & Cable |
| Wire Contact Termination Area Plating Material | Tin |
| Termination Method to Wire & Cable | Crimp |
| TE Internal Number | 2110989-1 |
| Connector System | Wire-to-Board |
| Contact Mating Area Plating Material Finish | Bright |
| Product Type | Contact |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Contact Transmits (Typical) | Power |
| Operating Temperature Range | -13 – 221 |
| Insulation Diameter | .051 – .067 |
| Packaging Method | Reel |
| Packaging Quantity | 8000 |
| Length | .0709 |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Contact Base Material | Phosphor Bronze |
| Height | 2.15 |
| Contact Current Rating (Max) (A) | 4.5 |
| Contact Mating Area Plating Thickness | .5 |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Wire Size | 26 – 22 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Wire Size Mm | 0.1 (mm²) |
| Maximum Wire Size Mm | 0.4 (mm²) |
| Minimum Operating Temperature | -55 (°C) |
| Series | Economy Power 2.5 |
| Minimum Wire Size Awg | 26 (AWG) |
| Gender | Female |
| Contact Plating | Tin |
| Termination Method | Crimp |
| For Use With | Economy Power 2.5 Connector Housing |
| Maximum Wire Size Awg | 22 (AWG) |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Phosphor Bronze |
