2129260-2
Conn SCSI RCP 40 POS 0.6mm Solder RA Thru-Hole 40 Terminal 1 Port T/R
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2129260-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

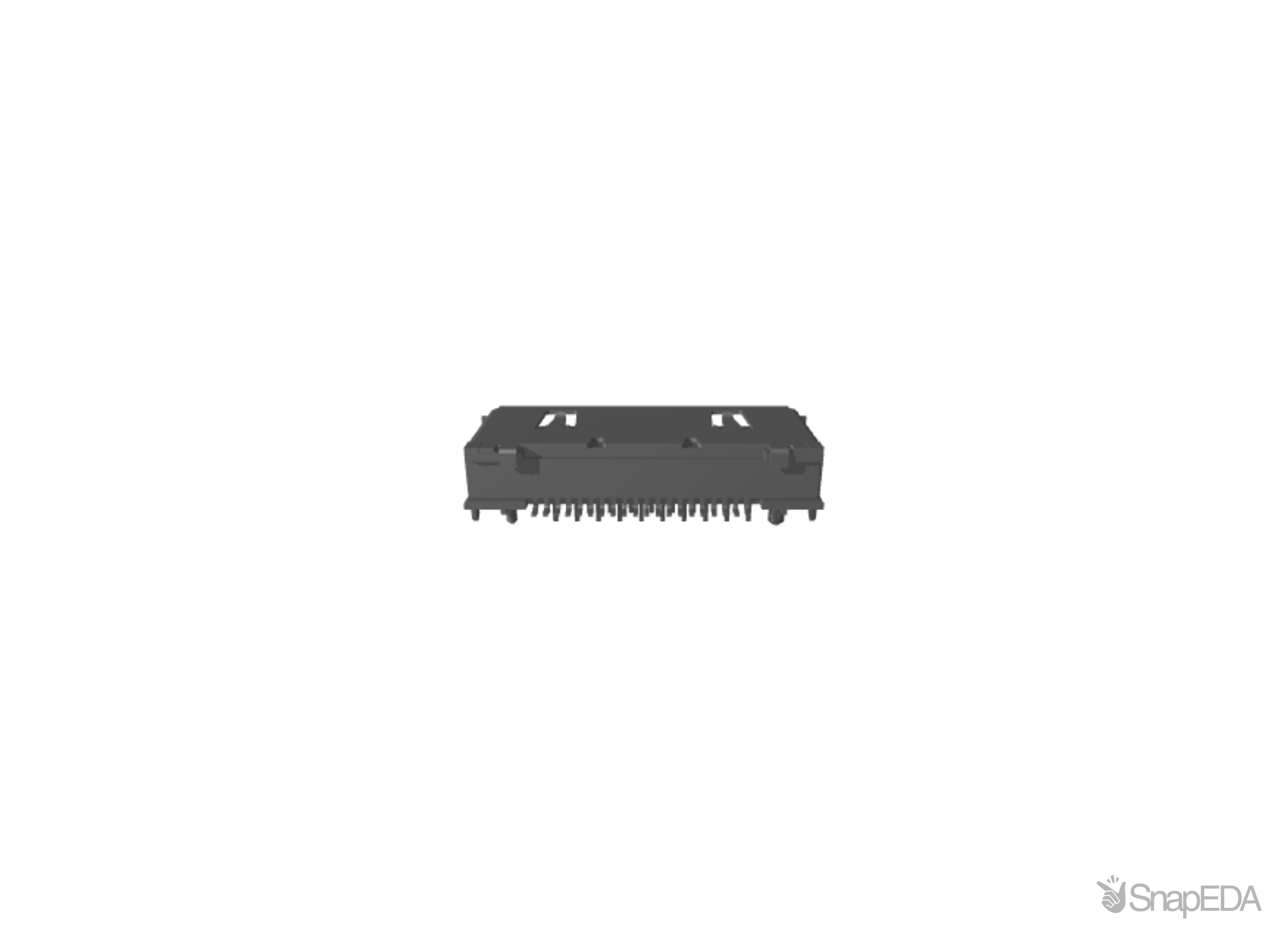

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2129260-2
| Part Name | 2129260-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .024 |
| Shell Material | Stainless Steel |
| Circuit Application | Power & Signal |
| Termination Method to Printed Circuit Board | Surface Mount |
| Number of Power Positions | 0 |
| Number of Positions | 40 |
| PCB Mount Retention Type | Hold-Down Post |
| PCB Mount Retention | With |
| Termination Post & Tail Length | 1.5 |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 2129260-2 |
| PCB Mount Orientation | Right Angle |
| Connector System | Cable-to-Board |
| Number of Rows | 3 |
| Housing Color | Black |
| Number of Signal Positions | 40 |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 – 185 |
| Packaging Method | Reel |
| Packaging Quantity | 600 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Housing Material | Thermoplastic |
| Sealable | No |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .38 |
| Contact Current Rating (Max) (A) | .5 |
| Number of Utility Contacts | 0 |
| Docking Connector Style | Receptacle |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
