2132415-7
EP2.5 Shrouded HDR ASSY 7P VERT w/o boss | TE Connectivity 2132415-7
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2132415-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

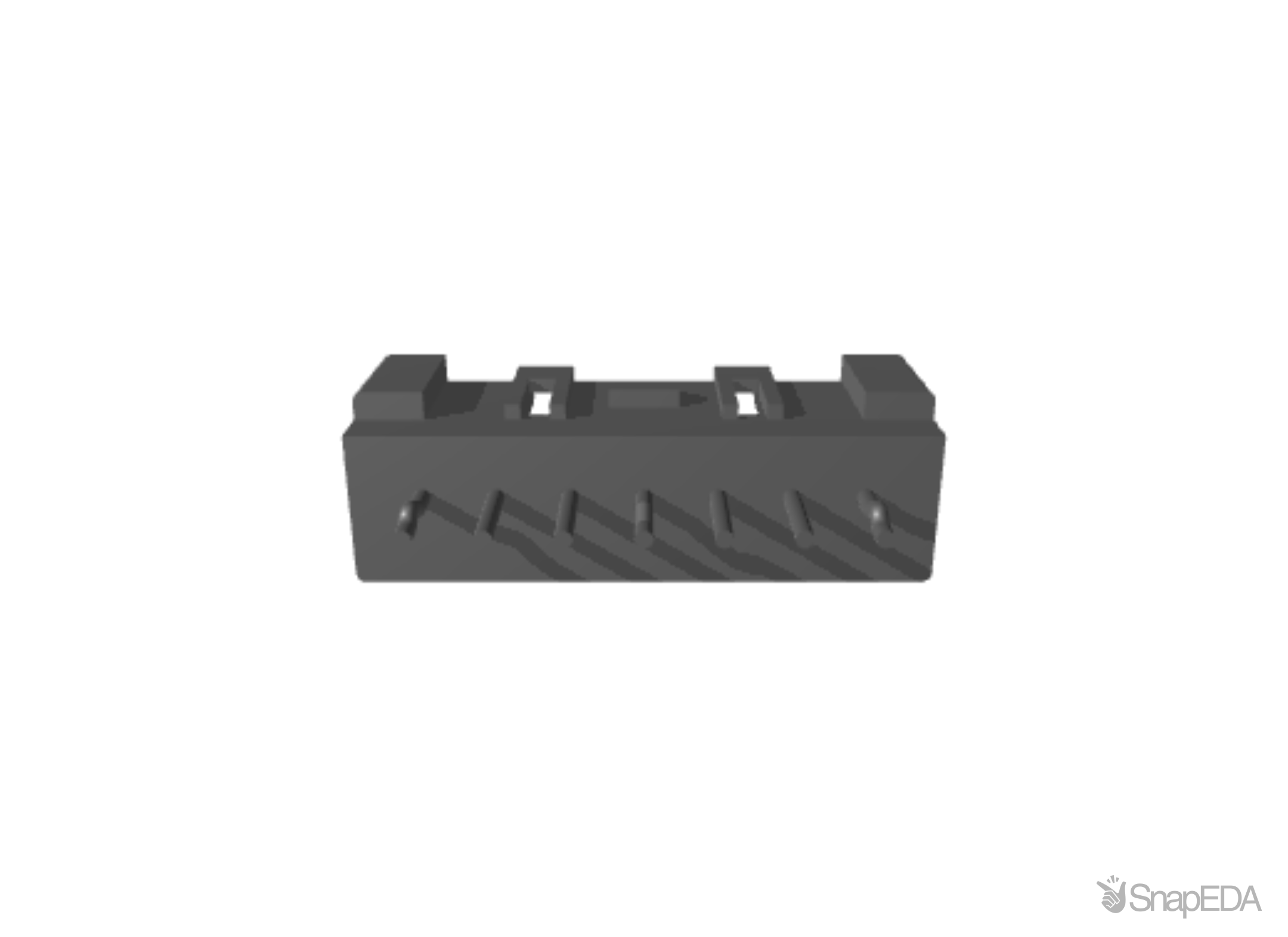

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2132415-7
| Part Name | 2132415-7 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .098 |
| Circuit Application | Power & Signal |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | PBT GF |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 250 |
| Number of Positions | 7 |
| PCB Mount Retention Type | Kinked |
| Contact Design | Round Post |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .063 |
| Termination Post & Tail Length | .134 |
| Contact Current Rating (Max) (A) | 4.2 |
| Mating Post Length | .142 |
| TE Internal Number | 2132415-7 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | .346 |
| Number of Rows | 1 |
| Housing Color | Natural |
| Connector Width | .252 |
| Contact Mating Area Plating Material Finish | Bright |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Shape | Round |
| Termination Method to Wire & Cable | Crimp |
| Contact Transmits (Typical) | Power |
| Mating Retention | With |
| Connector Length | .89 |
| Header Type | Shrouded |
| Operating Temperature Range | -67 – 221 |
| CSA Certified | No |
| Packaging Method | Bag |
| Packaging Quantity | 500 |
| Contact Layout | Inline |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Brass |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Contact Termination Area Plating Material Thickness | 80 |
| PCB Mount Alignment | Without |
| Mating Retention Type | Latch |
| Contact Mating Area Plating Material Thickness | 80 – 200 |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Retention | Without |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| UL å®šæ ¼ | Recognized |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
