213843-2

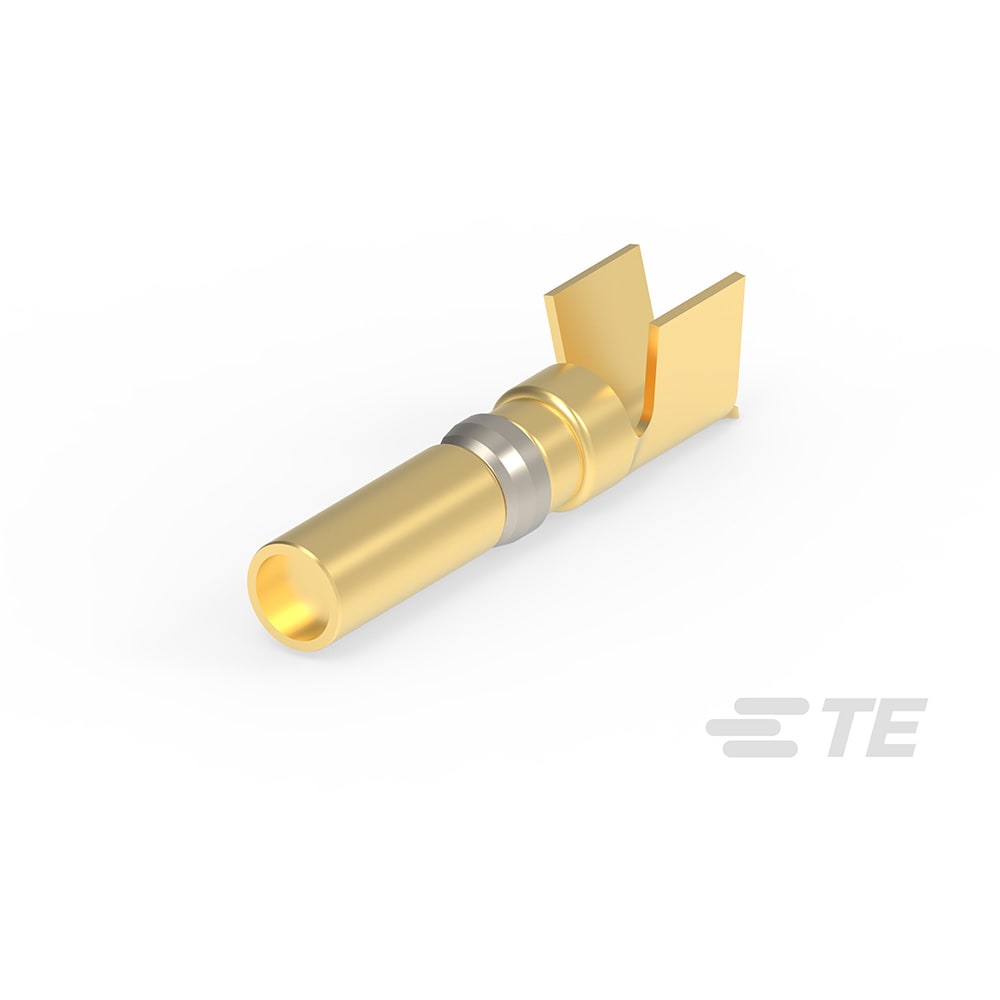

Socket Contact, 1 Pos, 50A, 8-10 AWG, Crimp Terminal, 600VDC, Powerband Series | TE Connectivity 213843-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 213843-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 213843-2
| Part Name | 213843-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Product Type | Contact |
| Circuit Application | Power |
| Packaging Method | Reel |
| TE Internal Number | 213843-2 |
| Packaging Quantity | 1500 |
| Wire Size | 10 – 8 |
| For Use With | CPC Connectors |
| Contact Termination Area Plating Material | Gold Flash |
| Contact Mating Area Plating Thickness | .76 |
| Termination Type | Crimp |
| Contact Mating Area Plating Material | Gold |
| Contact Type | Socket |
| Contact Size | 8 |
| Contact Base Material | Copper |
| Connector & Contact Terminates To | Wire & Cable |
| RoHS | True |
| Test Current (A) | 50 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 213843-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
227
|
|
Visit Site |
No issues have been reported for the 213843-2
If you experienced any issues with this part, please report it.
