2138558-2
2P GENERATION Y Cap, Single-Pi, 2138558-2
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2138558-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

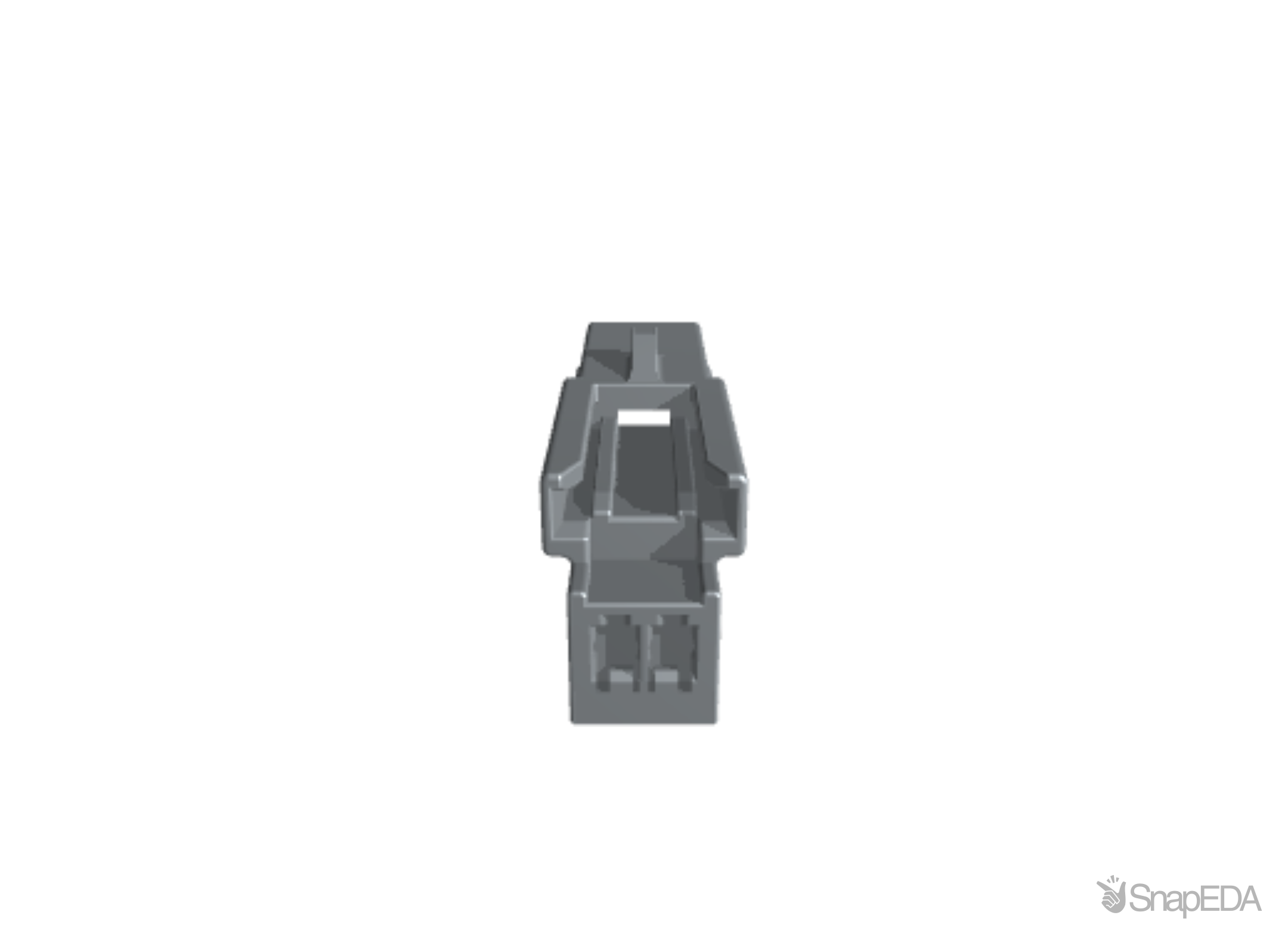

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2138558-2
| Part Name | 2138558-2 |
| Manufacturer | TE Connectivity / AMP |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 9.45 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for male terminals |
| Number of Positions | 2 |
| Operating Temperature Range | -40 – 100 |
| TE Internal Number | 2138558-2 |
| Connector System | Wire-to-Wire |
| Number of Rows | 1 |
| Sealable | No |
| Terminal Position Assurance | Yes |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | Yes |
| Length | 31.75 |
| Cable Exit Angle | 180° |
| RoHS | True |
| Mating Tab Width | .64 |
| Strain Relief | No |
| Color | Gray |
| Body Material | PBT GF |
| Height | .511 |
| Primary Locking Feature | Integrated in Housing |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
No issues have been reported for the 2138558-2
