2149490-5
320 (16 x 20) Position SFP+ Receptacle with Cage, Ganged (2x8) Connector Press-Fit Through Hole, Right Angle
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2149490-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

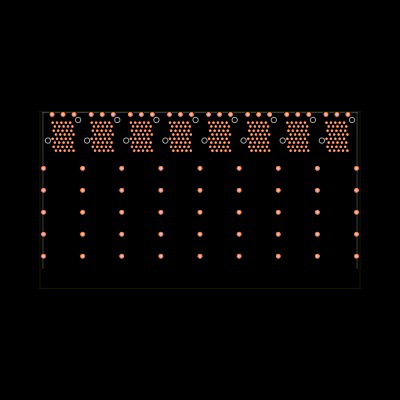

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2149490-5
| Part Name | 2149490-5 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .0315 |
| Circuit Application | Signal |
| TE Internal Number | 2149490-5 |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Integrated Lightpipes | Yes |
| Cage Type | Stacked |
| Number of Positions | 320 |
| EMI Containment Feature Type | External Springs |
| PCB Thickness (Recommended) | .059 |
| Included Lightpipe | Yes |
| Included Heat Sink | No |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Cable-to-Board |
| Tail Plating Material | Tin |
| Cage Material | Nickel Silver |
| Heat Sink Compatible | No |
| Product Type | Cage Assembly with Integrated Connector |
| Form Factor | SFP+ |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105 |
| Lightpipe Configuration | Four Triangular (Inner & Outer) |
| Packaging Method | Package |
| Tail Length | .118 |
| Number of Ports | 16 |
| Contact Mating Area Plating Material | Gold or Gold Flash over Palladium Nickel |
| RoHS | True |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) | 16 |
| Pluggable I/O Applications | SFP+ |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Thickness | .76 |
| Port Matrix Configuration | 2 x 8 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2149490-5 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
48 x $111.15
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Onlinecomponents |
6
|
|
Visit Site | |
| Sager |
|
48 x $146.87
|
Visit Site | |
|
★ Featured
|
|
48 x $147.09
|
Visit Site | |
| Verical |
28
|
1 x $137.36
|
Visit Site |
No issues have been reported for the 2149490-5
