215310-2
2X2P HV100 REC CON. TE, 8.5MM,TIN
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 215310-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

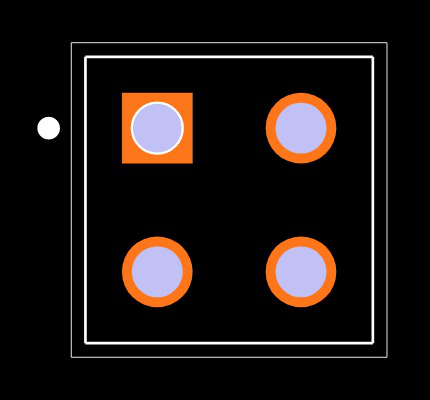

Footprint
No web preview
This Footprint is Available for

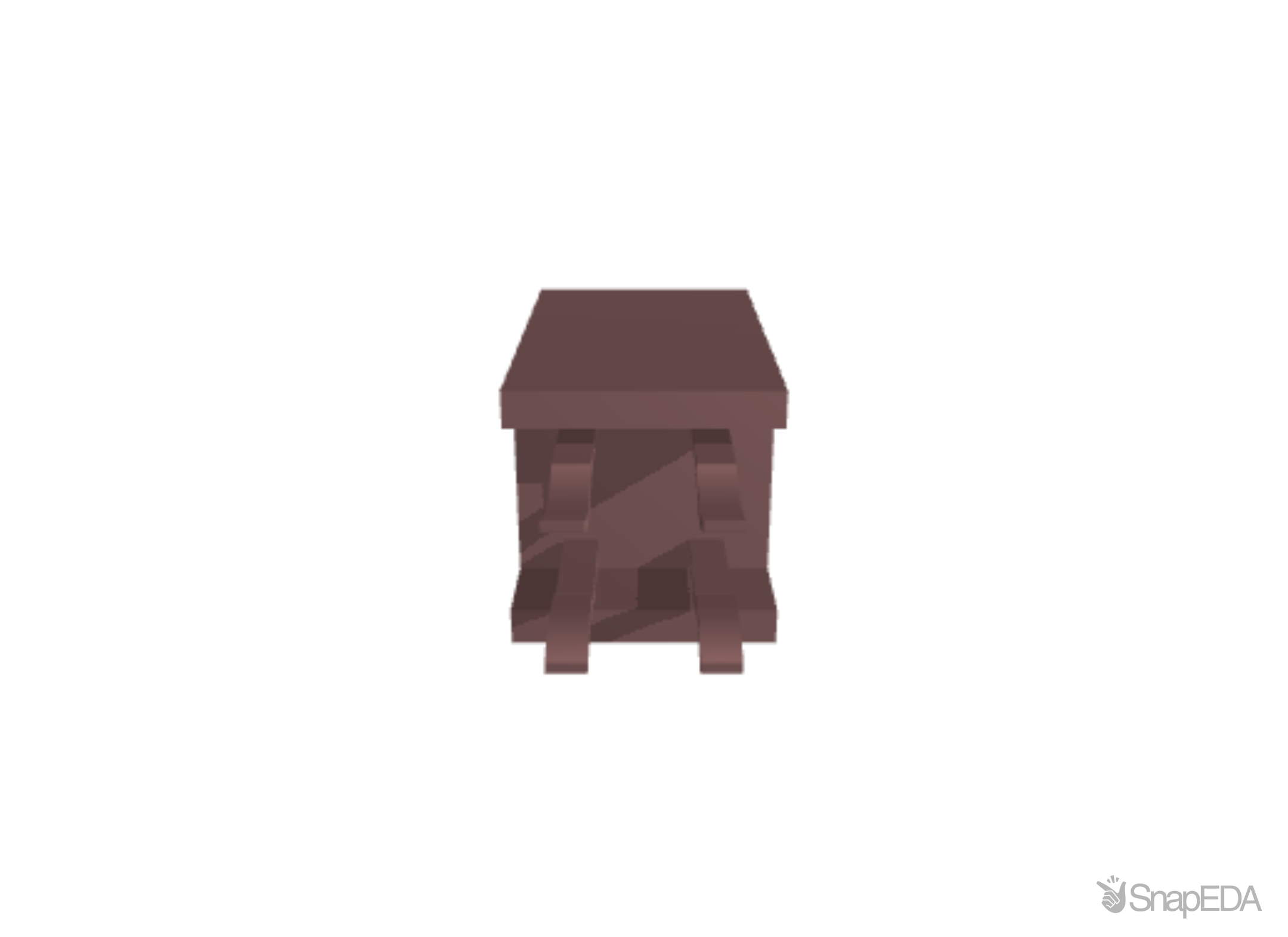

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 215310-2
| Part Name | 215310-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarized |
| Centerline (Pitch) | .1 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Retention Solder Tails |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.6 |
| Termination Post & Tail Length | .122 |
| Contact Current Rating (Max) (A) | 3 |
| TE Internal Number | 215310-2 |
| PCB Mount Orientation | Vertical |
| Contact Protection Type | Closed Entry Housing |
| Connector Height | .335 |
| Number of Rows | 2 |
| Housing Color | Black |
| Contact Base Material | Phosphor Bronze |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | 94.488 – 157.48 |
| Operating Temperature Range | -65 – 125 |
| Mating Entry Location | Top |
| Packaging Method | Tray |
| Packaging Quantity | 376 |
| Contact Type | Socket |
| Number of Positions | 4 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Housing Material | Polyester - GF |
| Sealable | No |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | 2.54 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| Connector Profile | Standard |
| Solder Process Feature | Board Standoff |
| Stackable | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
