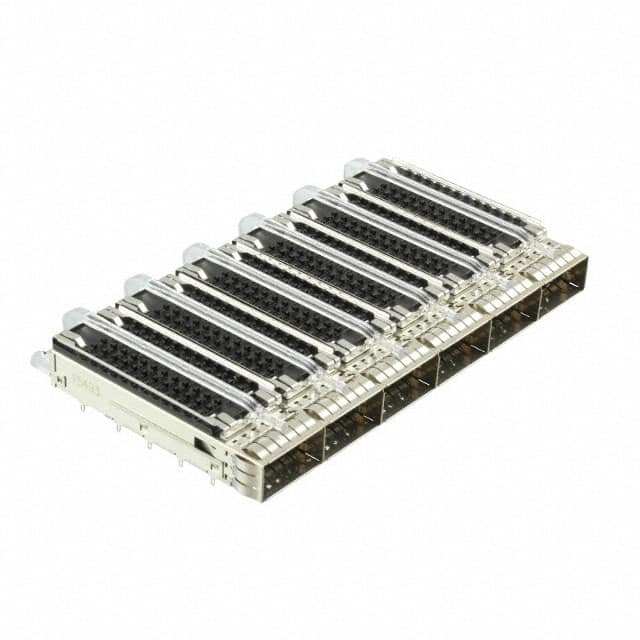

2170708-1
Connector Accessories 6-Port QSFP Cage Assembly Right Angle Through Hole Press Fit Tray
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2170708-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2170708-1
| Part Name | 2170708-1 |
| Manufacturer | TE Connectivity |
| Enhancements | Standard |
| Heat Sink Style | Pin |
| Circuit Application | Signal |
| Included Heat Sink | Yes |
| Heat Sink Finish | Anodized Black |
| Cage Type | Ganged |
| Connector & Contact Terminates To | Printed Circuit Board |
| EMI Containment Feature Type | Internal/External EMI Springs |
| PCB Thickness (Recommended) | 1.57 |
| Included Lightpipe | Yes |
| TE Internal Number | 2170708-1 |
| Connector System | Cable-to-Board |
| Cage Material | Nickel Silver |
| Heat Sink Compatible | Yes |
| Heat Sink Height | 4.2 |
| Product Type | Cage Assembly |
| Form Factor | QSFP28/56 |
| Connector Mounting Type | Board Mount |
| Heat Sink Height Class | PCI |
| Operating Temperature Range | -40 – 85 |
| Lightpipe Configuration | Single Round |
| Packaging Method | Box & Tray |
| Tail Length | 2.05 |
| Number of Ports | 6 |
| Sealable | No |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Data Rate (Max) | 28 |
| Pluggable I/O Applications | Standard |
| UL Flammability Rating | UL 94V-0 |
| For Use With Pluggable I/O Products | QSFP28 Cable Assembly |
| Port Matrix Configuration | 1 x 6 |
| PCB Contact Termination Area Plating Material | Tin |
| Rear EONs per Port Column | 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
