2173132-1
ELCON MINI 4P VERT HEADER,UNSHIELDED,SOL | TE Connectivity 2173132-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2173132-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

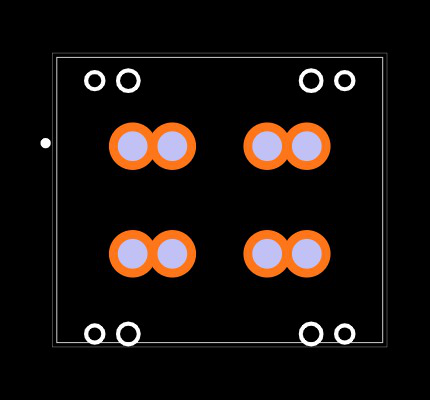

Footprint
No web preview
This Footprint is Available for

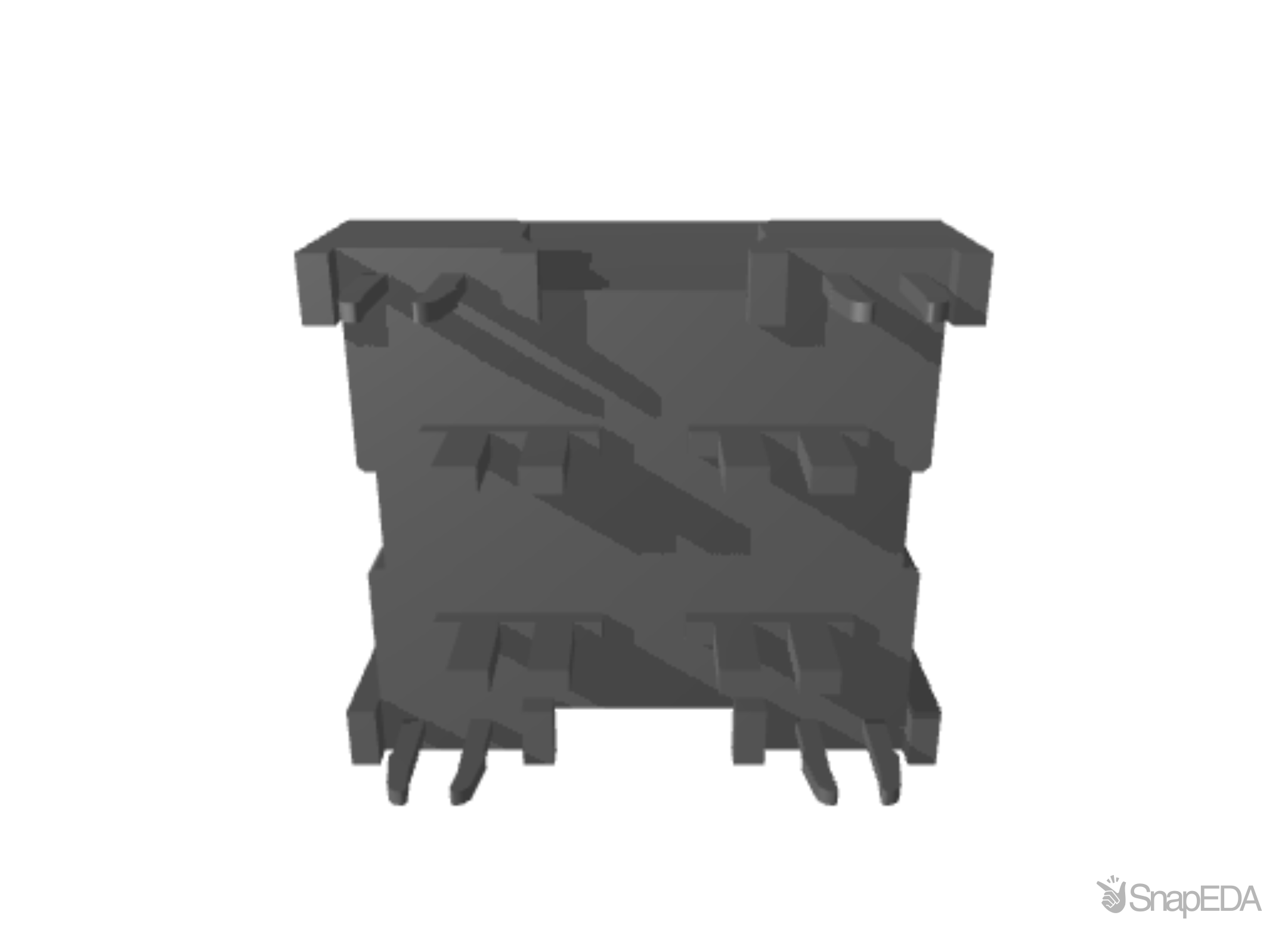

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2173132-1
| Part Name | 2173132-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 7.8 |
| Circuit Application | Power |
| Insulation Resistance | 1000 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | LCP GF30 (Liquid Crystal Polymer) |
| Number of Power Positions | 4 |
| Operating Voltage (V) | 60 |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Hold-Down |
| PCB Mount Retention | With |
| Termination Post & Tail Length | 2.95 |
| TE Internal Number | 2173132-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Shrouded |
| Number of Signal Positions | 0 |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| Dielectric Withstanding Voltage (Max) (V) | 750 |
| Mating Retention | Without |
| Assembly Process Feature | Pick and Place Cover |
| Operating Temperature Range | -40 – 257 |
| Packaging Method | Reel |
| Housing Type | Plug |
| Packaging Quantity | 1 |
| Length | .74 |
| Number of Positions | 4 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Silver |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole |
| Product Type | Plug |
| Contact Retention | With |
| Contact Termination Area Plating Material | Silver |
| Height | .65 |
| Row-to-Row Spacing | 6.24 |
| Contact Current Rating (Max) (A) | 20 |
| Contact Mating Area Plating Thickness | 76.2 |
| Contact Type | Pin |
| Contact Termination Area Plating Thickness | 3 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2173132-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
177
|
40 x $7.52
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
150 x $6.88
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Onlinecomponents |
145
|
|
Visit Site | |
| Sager |
|
300 x $6.57
|
Visit Site | |
| TE Store |
135
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| Verical |
100
|
50 x $12.05
|
Visit Site |
No issues have been reported for the 2173132-1
If you experienced any issues with the symbol or footprint, please report it.
