2176094-2
RP 2A 0.25W 118K 0.1% 25PPM 1K RL
Availability: In Stock
Package Type: 0805
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2176094-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.

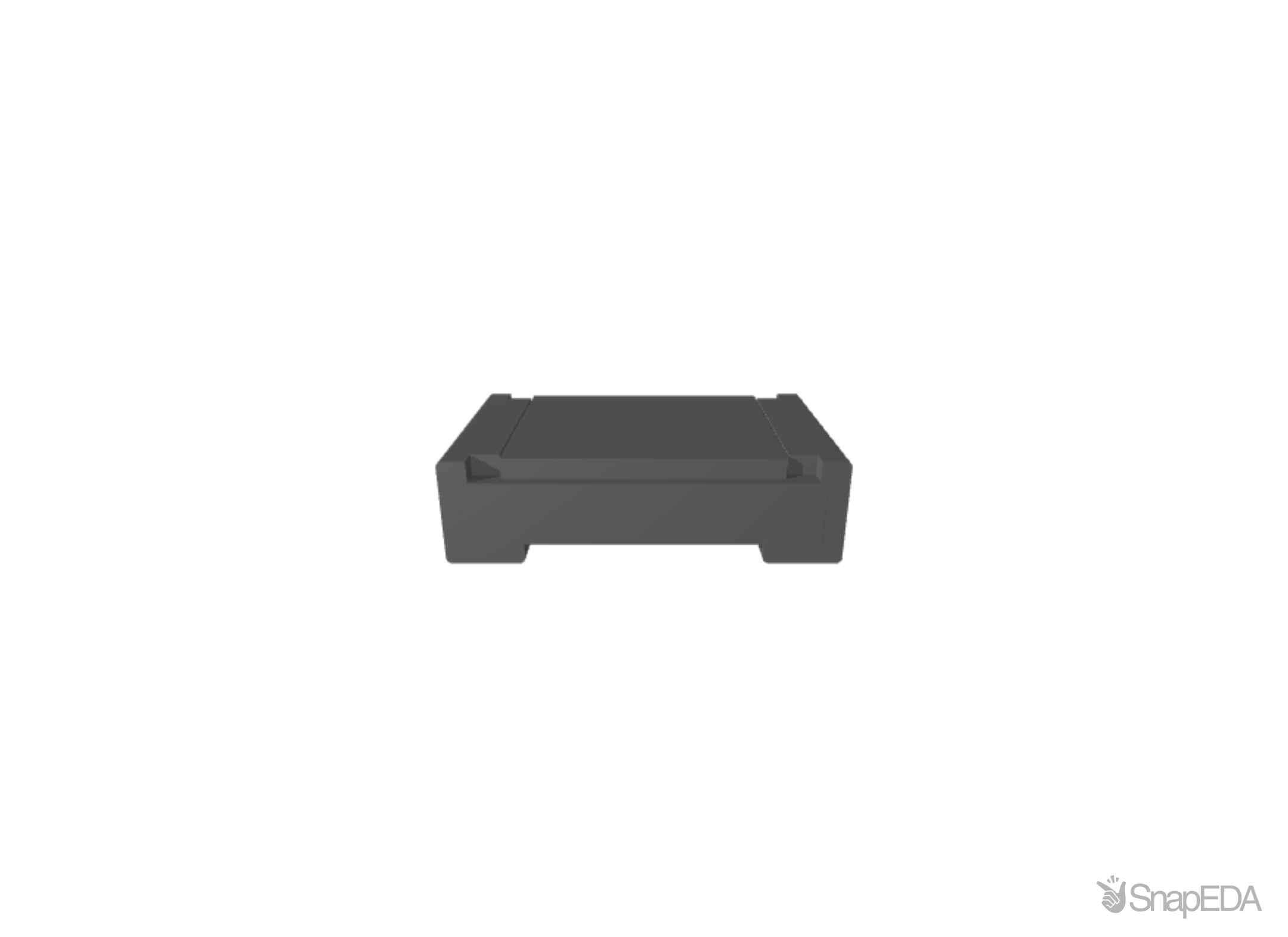

Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2176094-2
| Part Name | 2176094-2 |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 2 x 1.25 x .55 |
| Voltage Rating (V) | 150 |
| Element Type | Thin Film |
| Resistor Type | Precision Resistor |
| Size Code | 0805 |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 2176094-2 |
| Temperature Coefficient | ±25 |
| Resistance | 118K |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | .25 |
| Product Type | Fixed Resistor |
| Tolerance | .1% |
| Resistance Range | 1kΩ – 1MΩ |
| RoHS | True |
