2199663
SnapVerified

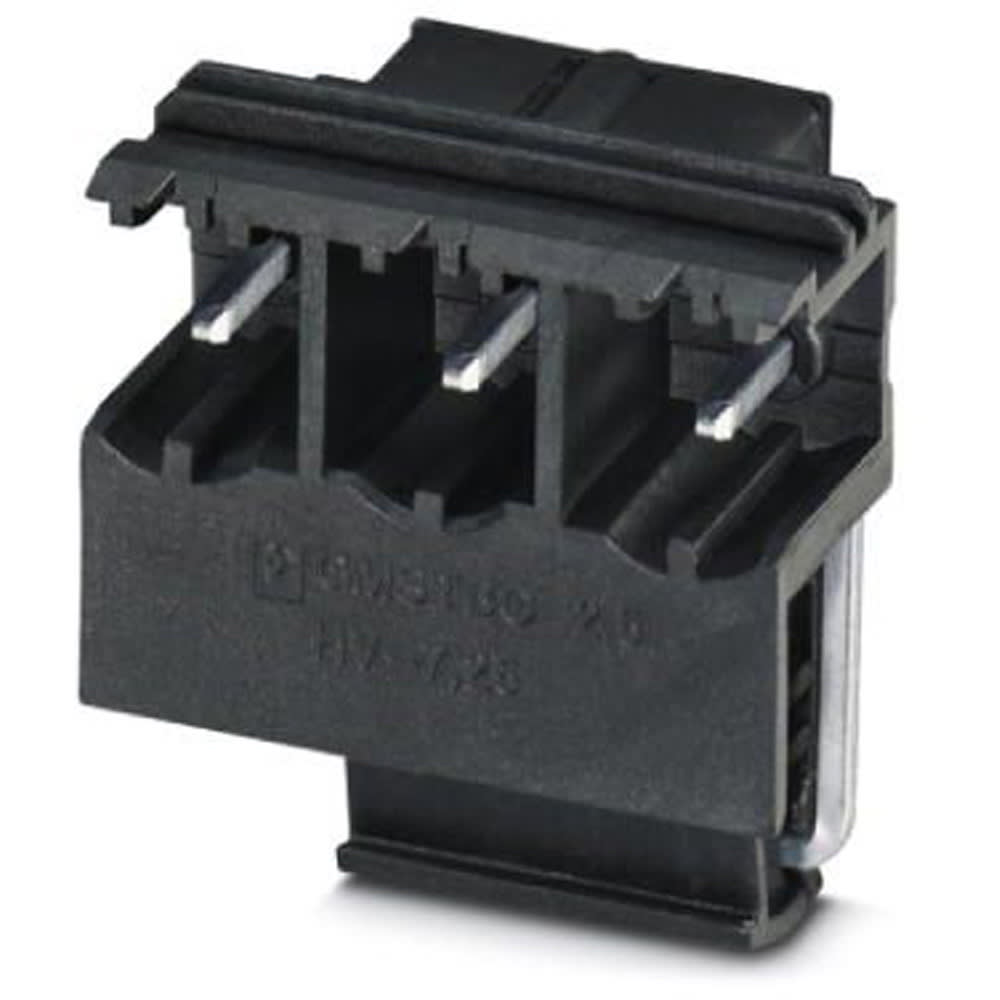

Terminal block;PCB;Header;Male Pins;Shrouded (2 Side);3 position;16A;630V;Solder | Phoenix Contact 2199663
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2199663 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

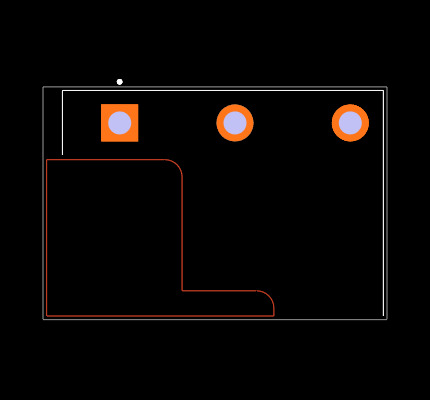

Footprint
No web preview
This Footprint is Available for

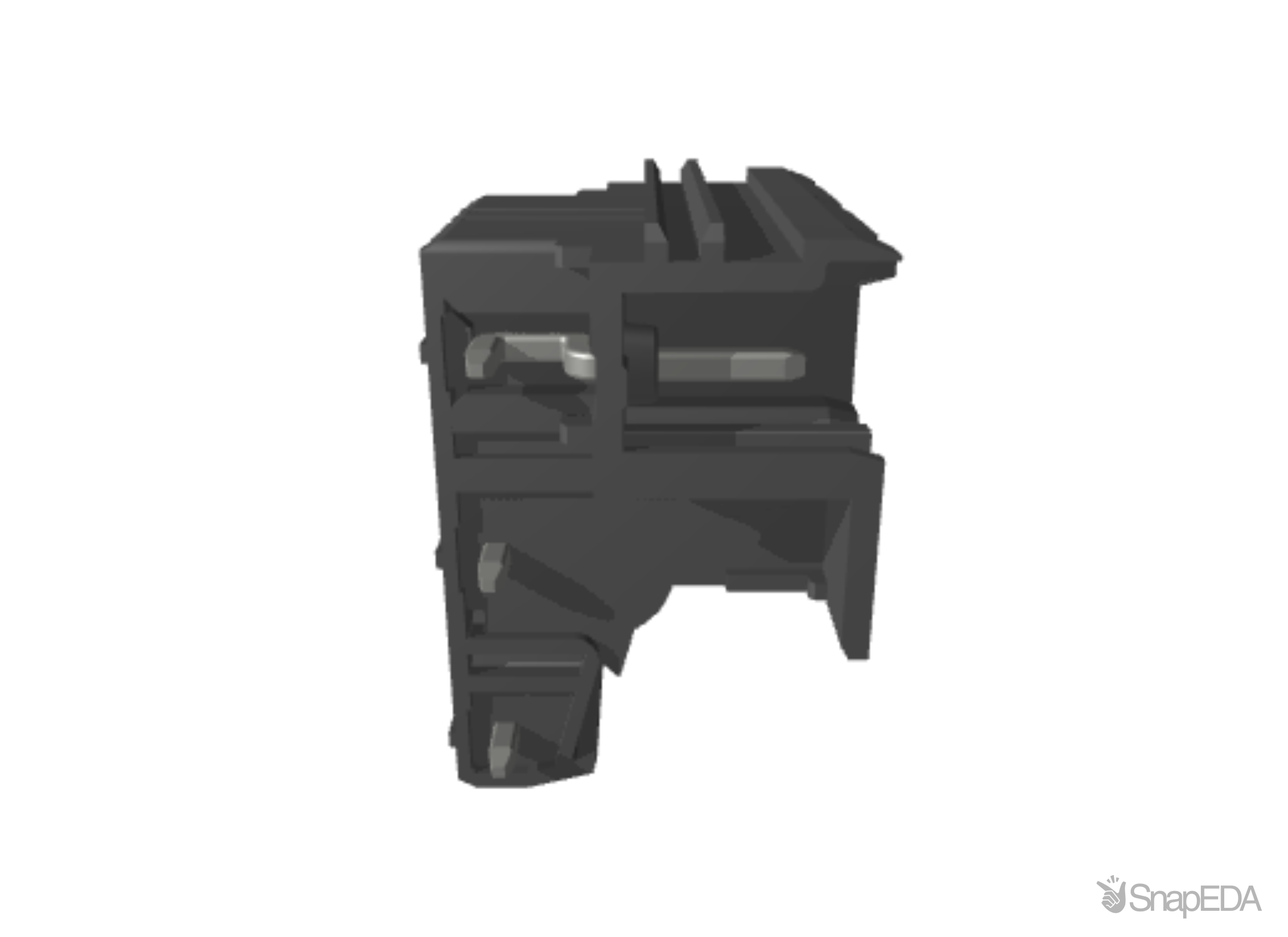

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2199663
| Part Name | 2199663 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Rated Current (A) | 16 |
| Width | 19.95 |
| GTIN | 4046356495295 |
| Assembly | plugged-in |
| Product Description | PCB header |
| Gtin (ean) Code | 4046356495295 |
| Internal Article Number | 2199663 |
| Color Of Housing | black |
| Type Of Pcb Contacting | THT connection (Wave soldering) |
| Depth | 15.65 |
| Design Of Electrical Connection | THR soldering |
| Manufacturer Product Designation | PCB header |
| RoHS | True |
| Assembly Type | THR soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 2199663 |
| Material Of Insulation | LCP |
| Pole Number | 3 |
| Height | 23.37 |
| Material Of The Contact | Copper |
| Application Standards | IECÂ 61984 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2199663 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
|
|
Visit Site | |
| Conrad |
|
|
Visit Site | |
| Farnell UK |
|
50 x $3.58
|
Visit Site | |
| RS Americas |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TTI Europe |
|
|
Visit Site |
No issues have been reported for the 2199663
If you experienced any issues with the symbol or footprint, please report it.
