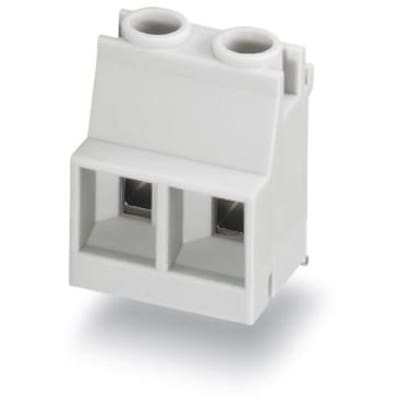

Connector;PCB header;24A;630V;2-position;MKDSO 2 5 HV/ 2R-7 5 KMGY | Phoenix Contact 2199773
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2199773 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

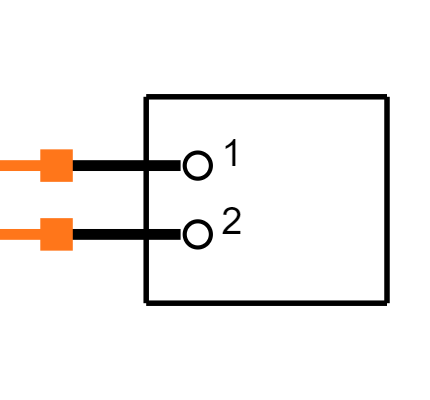

Symbol
No web preview
This Symbol is Available for

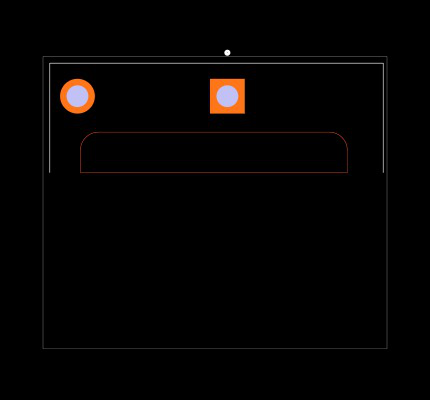

Footprint
No web preview
This Footprint is Available for

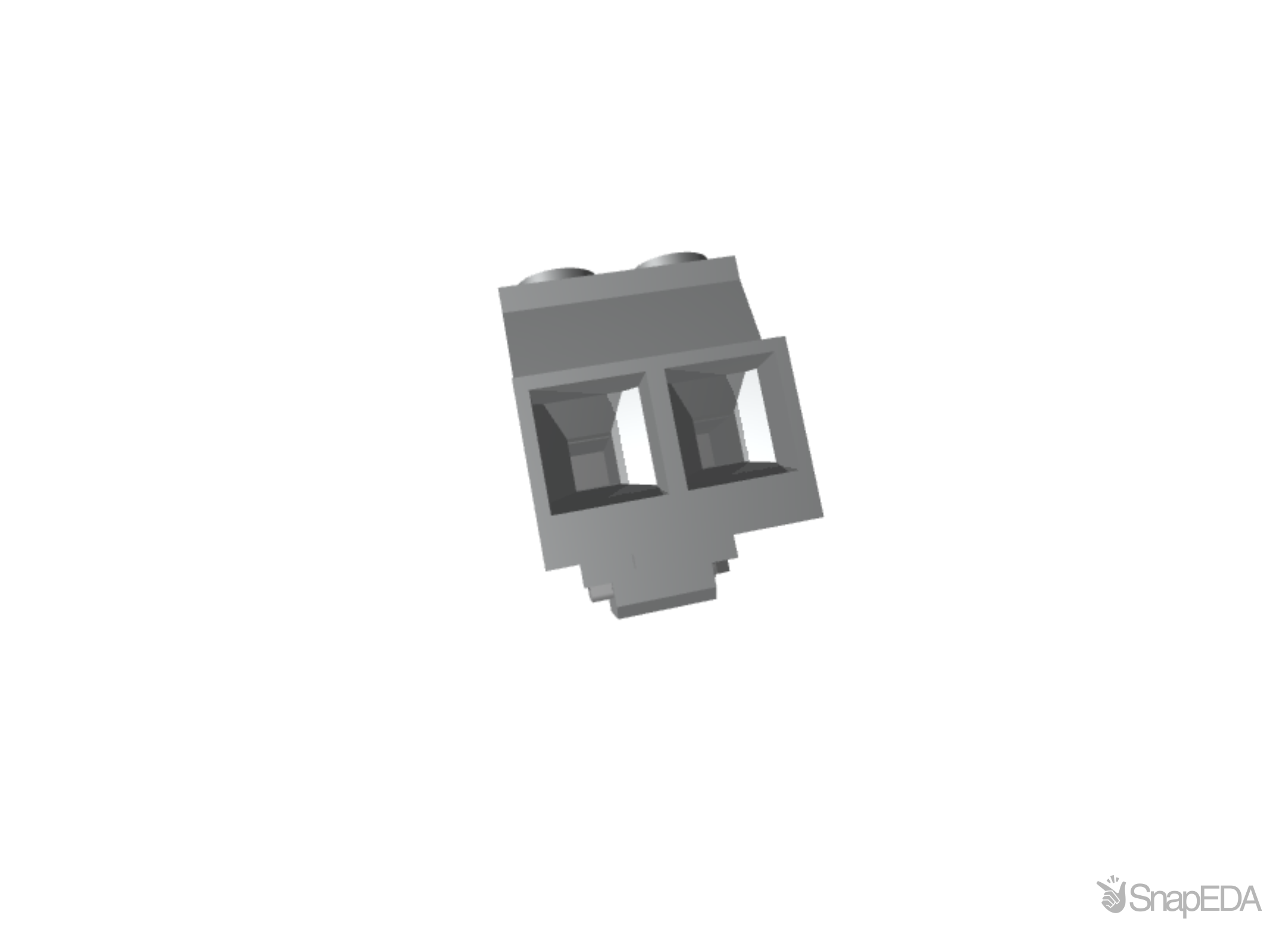

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2199773
| Part Name | 2199773 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Max. Connectable Conductor Cross-section Multiple Wire | 0.75 |
| Max. Operating Temperature | 105 |
| Max. Line Cross Section, Rigid | 2.5 |
| Width | 14.9 |
| GTIN | 4046356464253 |
| Min. Operating Temperature | -40 |
| Min. Line Cross Section, Flexible | 0.2 |
| Product Description | PCB terminal block |
| Certificate/approval | cULus Recognized, VDE Gutachten mit Fertigungsüberwachung |
| Gtin (ean) Code | 4046356464253 |
| Internal Article Number | 2199773 |
| Number Of The Executions Of The Housing Parts | 0 |
| Min. Connectable Conductor Cross-section Multiple Wire | 0.2 |
| Max. Line Cross Section, Flexible | 2.5 |
| Depth | 18.8 |
| Manufacturer Product Designation | PCB terminal block |
| RoHS | True |
| Assembly Type | Print mounting |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Product Article Number Of Manufacturer | 2199773 |
| Net Weight | 0.00489 |
| Height | 22.25 |
| Min. Line Cross Section, Rigid | 0.2 |
| Application Standards | IECÂ 60998-2-1:2002-12 (in parts) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 7.5 (mm) |
| Current Rating (A) | 24 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 1 kV |
| Series | MKDSO 2.5 HV/ 2R-7.5 KMGY |
| Material | Polyamide |
| Termination Method | Screw |
| Number Of Contacts | 2 |
| Type | PCB Terminal Block |
