22-05-1032

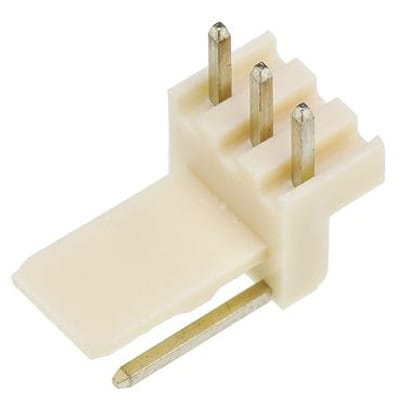

Headers, RA FRICTION LK HDR 3 wire-to-board | Molex Incorporated 22-05-1032
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 22-05-1032 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

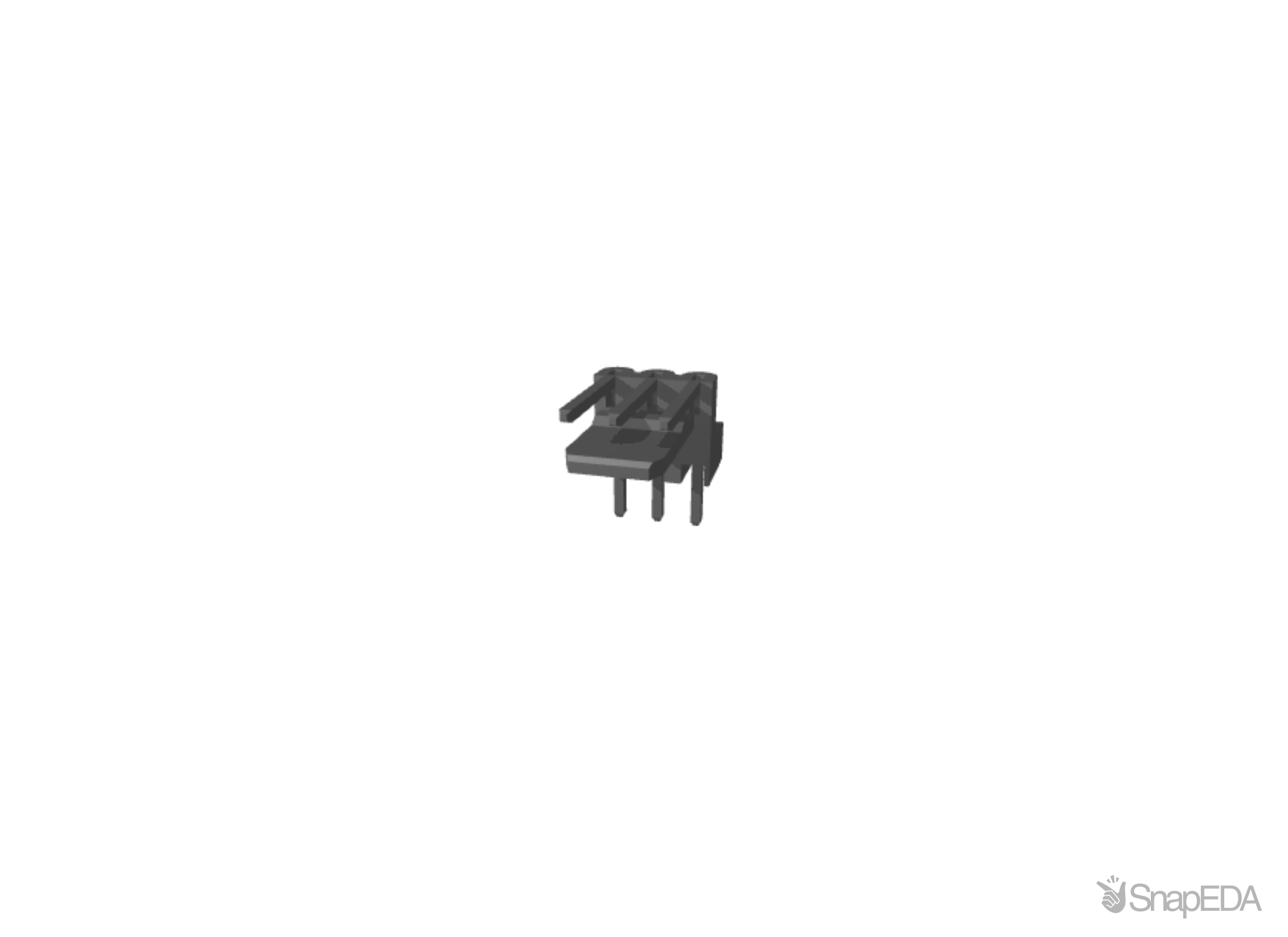

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 22-05-1032
| Part Name | 22-05-1032 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Brass |
| Current Rating (A) | 3.0 (A) |
| Shrouded Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | Mini-Latch |
| Body Orientation | Right Angle |
| Pitch | 2.5 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 3 |
| Series Number | 5046 |
Inventory for the 22-05-1032 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Chip One Stop |
45,702
|
|
Visit Site | |
| Conrad |
922
|
1 x $0.61
|
Visit Site | |
| Farnell UK |
45,160
|
|
Visit Site | |
| Onlinecomponents |
45,707
|
|
Visit Site | |
| Powell Electronics |
33,117
|
1 x $0.68
|
Visit Site | |
| RS UK |
630
|
|
Visit Site | |
| Rutronik |
1,035
|
|
Visit Site | |
| TME |
21
|
|
Visit Site | |
| TTI Europe |
8,800
|
|
Visit Site | |
| Verical |
17,000
|
|
Visit Site |
No issues have been reported for the 22-05-1032
If you experienced any issues with the symbol or footprint, please report it.
