22-05-2061
KK® 254 Wire-to-Board Header, Single Row, Right Angle, 6 Circuits, PA Polyamide Nylon, Tin (Sn) Plating
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 22-05-2061 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

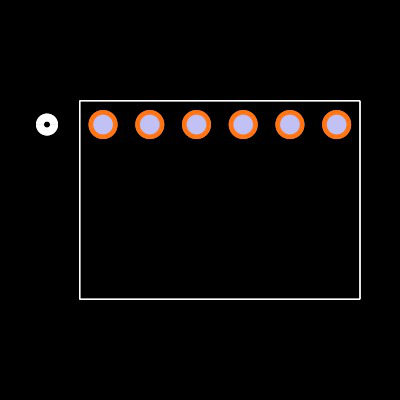

- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 22-05-2061
| Part Name | 22-05-2061 |
| Manufacturer | Molex |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Current Rating (A) | 4.0 (A) |
| Contact Plating | Tin |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | KK 254 |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Connector System | Board to Board, Wire to Board |
| Number Of Rows | 1 |
| Shrouded Unshrouded | Unshrouded |
| Pitch | 2.54 (mm) |
| Number Of Contacts | 6 |
| Series Number | 4094 |
| Contact Material | Brass |
No issues have been reported for the 22-05-2061
If you experienced any issues with the symbol or footprint, please report it.
