22-05-3021

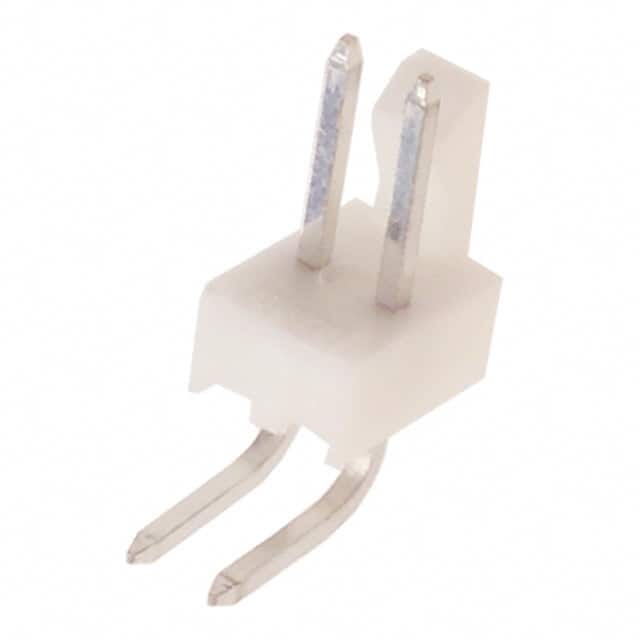

Headers R/A PCB HDR 2P TIN FRICTION LOCK | Molex Incorporated 22-05-3021
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 22-05-3021 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

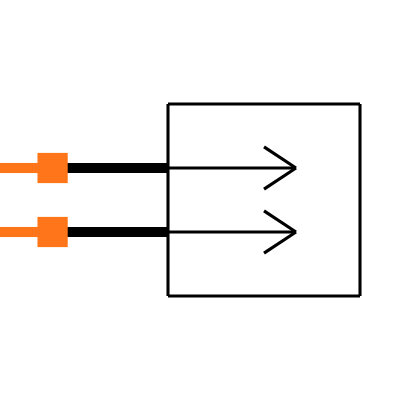

- Symbol and Footprint
- 3D Model

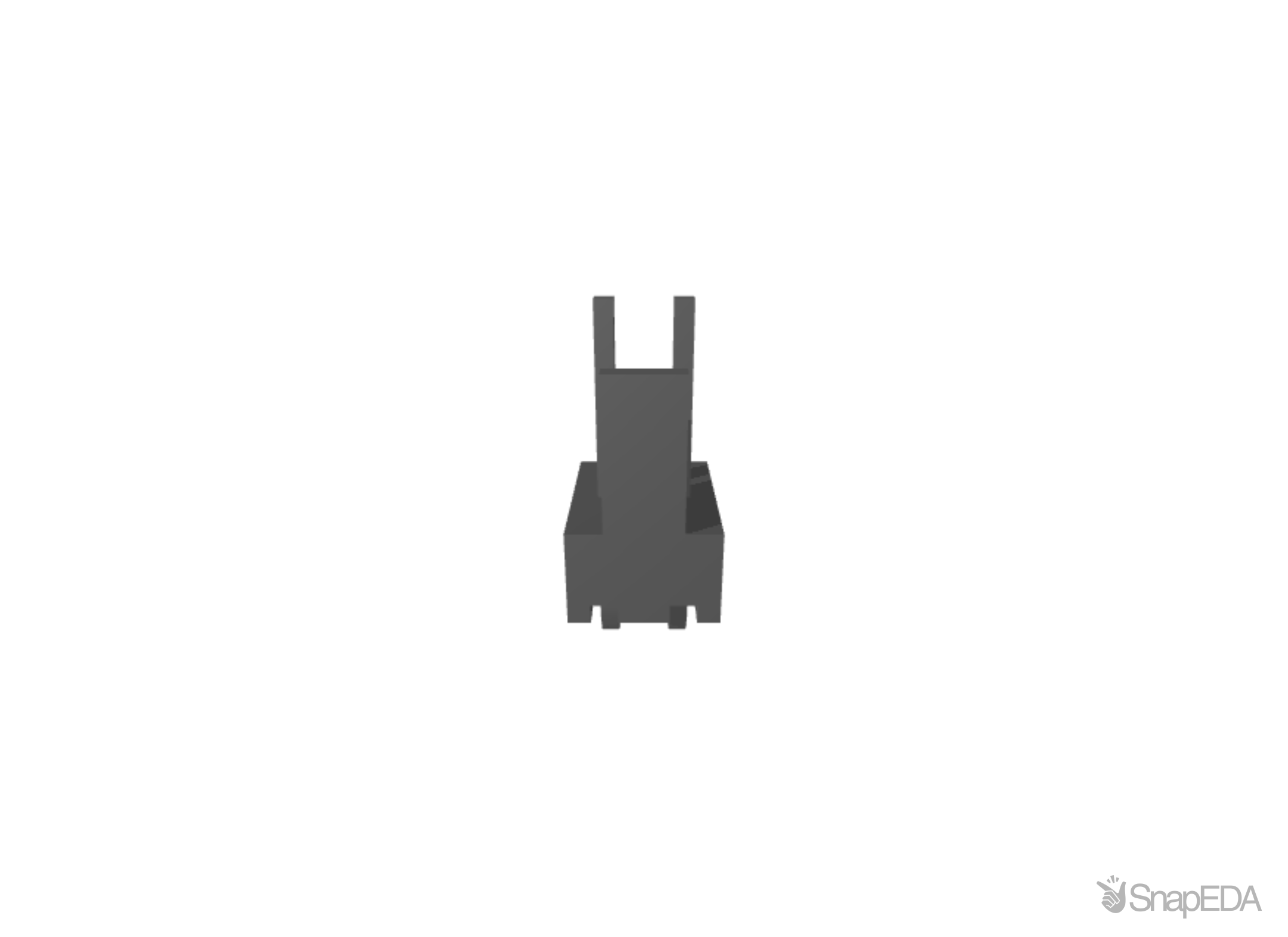

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 22-05-3021
| Part Name | 22-05-3021 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Unshrouded |
| Tail Pin Length | 3.58 (mm) |
| Current Rating (A) | 4 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | KK 254 |
| Body Orientation | Right Angle |
| Pitch | 2.54 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Contact Material | Brass |
| Number Of Contacts | 2 |
| Series Number | 7478 |
Inventory for the 22-05-3021 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
46,134
|
|
Visit Site | |
|
★ Featured
|
2,000
|
3,305 x $0.09
|
Visit Site | |
| Onlinecomponents |
53
|
|
Visit Site | |
| RS Americas |
8,099
|
|
Visit Site | |
| Verical |
17,100
|
|
Visit Site |
No issues have been reported for the 22-05-3021
