2203902
SnapVerified

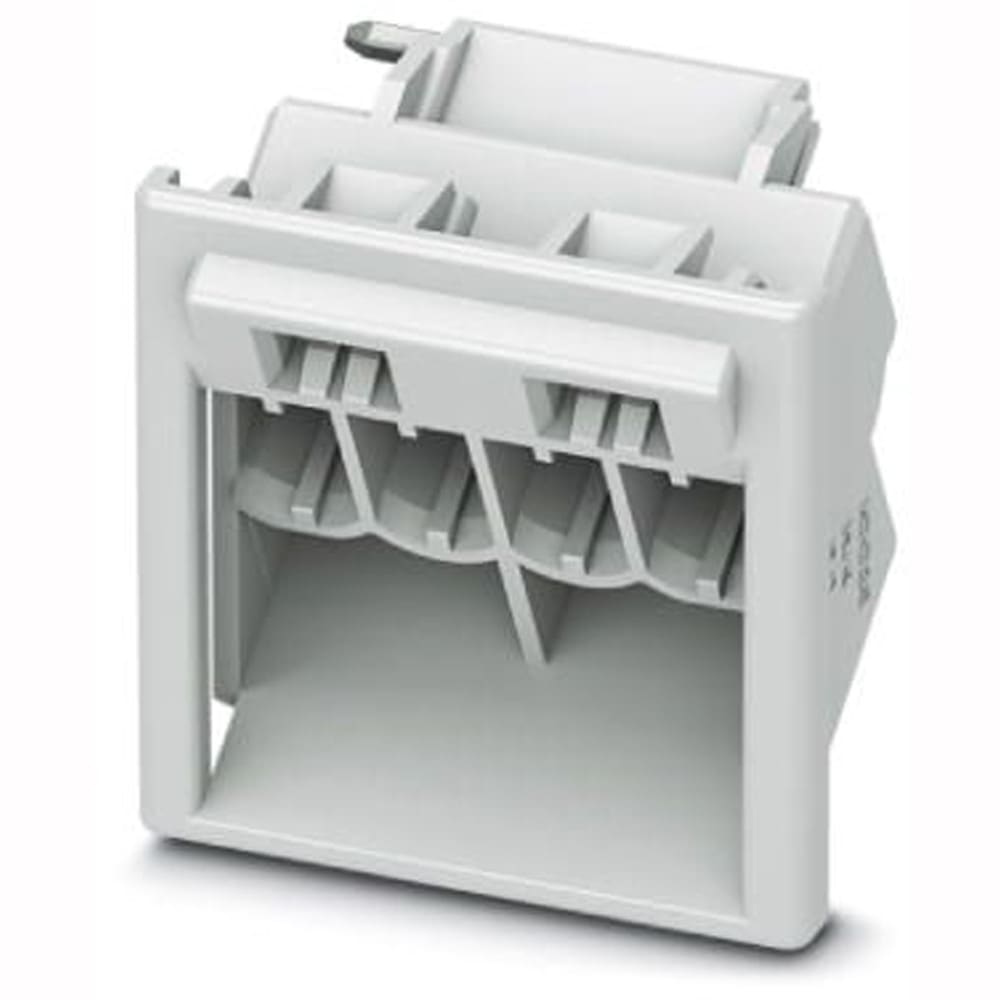

Connector;PCB Header;ICC25-H/4L5 0-7035 | Phoenix Contact 2203902
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2203902 by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

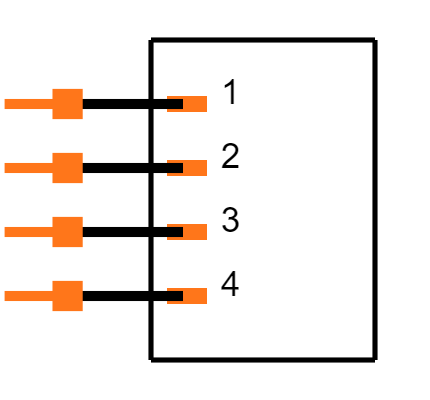

Symbol
No web preview
This Symbol is Available for

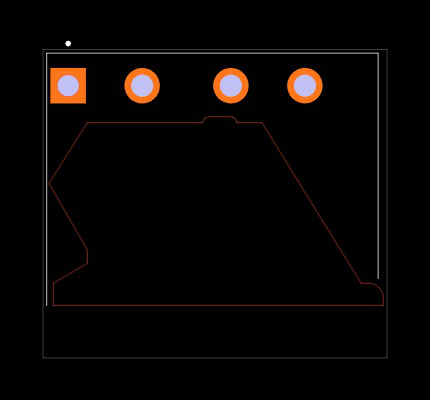

Footprint
No web preview
This Footprint is Available for

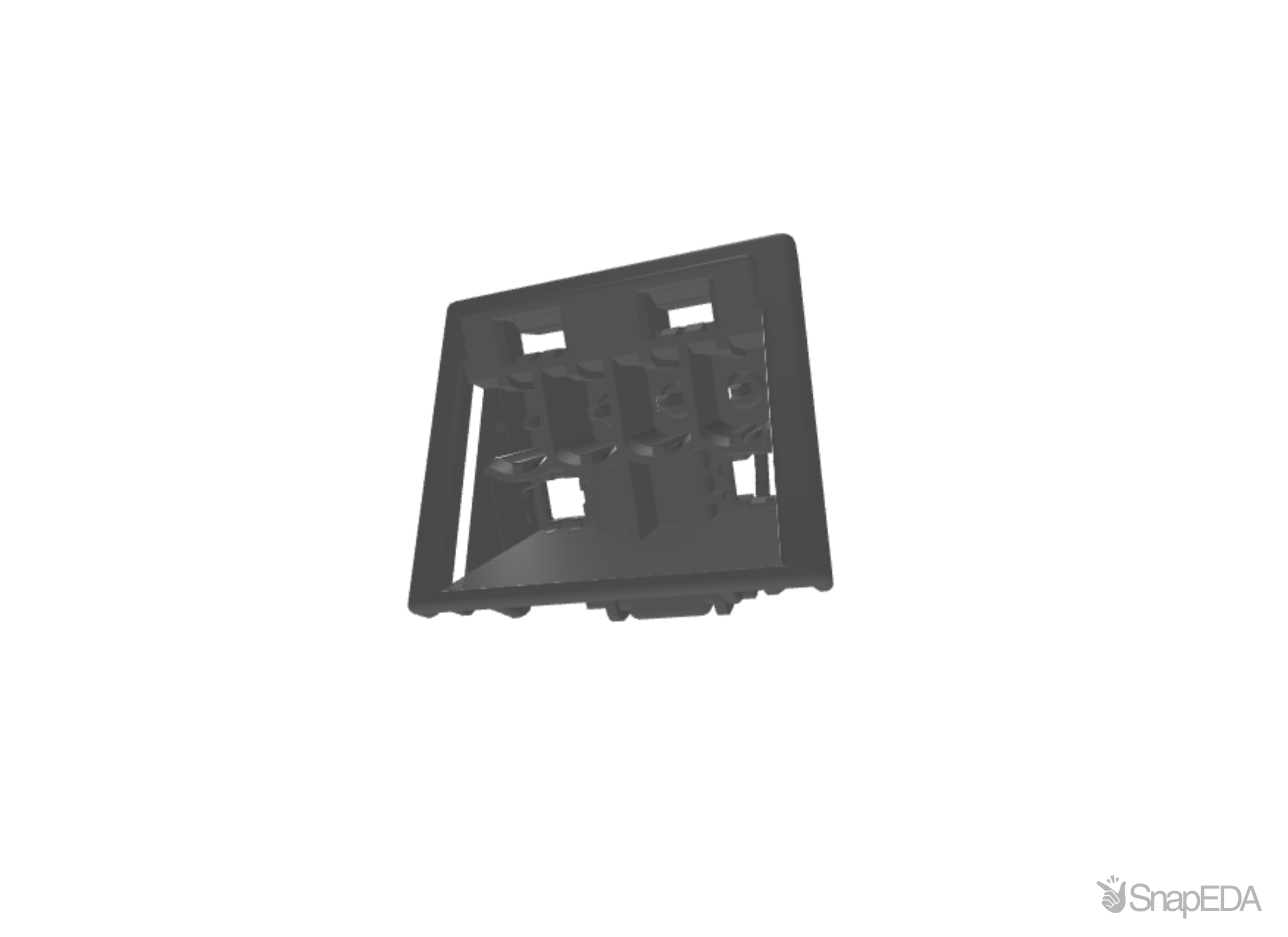

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2203902
| Part Name | 2203902 |
| Manufacturer | Phoenix Contact |
| Category | Connectors |
| Rated Current (A) | 16 |
| Width | 25 |
| GTIN | 4055626466071 |
| Type Of Interlock | Snap-lock fitting |
| Assembly | plugged-in |
| Product Description | PCB header |
| Gtin (ean) Code | 4055626466071 |
| Internal Article Number | 2203902 |
| Color Of Housing | light grey |
| Depth | 20.35 |
| Design Of Electrical Connection | Wave soldering |
| Manufacturer Product Designation | PCB header |
| RoHS | True |
| Material Of The Contact Coat | Tin |
| Assembly Type | Wave soldering |
| Flammability Rating Of The Insulating Material (based On Ul 94) | V0 |
| Material Of Insulation | PA |
| Product Article Number Of Manufacturer | 2203902 |
| Pole Number | 4 |
| Height | 22.4 |
| Material Of The Contact | Copper |
| Application Standards | IECÂ 61984 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Through Hole |
| Pluggable Terminal Block Type | Header |
| Series | 0-7035, ICC25-H/4L5 |
| Termination Method | Solder |
| Number Of Rows | 1 |
| Pitch | 5 (mm) |
| Number Of Contacts | 4 |
Inventory for the 2203902 by Phoenix Contact from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
|
|
Visit Site | |
| Conrad |
201
|
|
Visit Site | |
| Farnell UK |
|
50 x $4.33
|
Visit Site | |
| RS Americas |
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TTI Americas |
348
|
|
Visit Site |
No issues have been reported for the 2203902
If you experienced any issues with the symbol or footprint, please report it.
