2204420-8

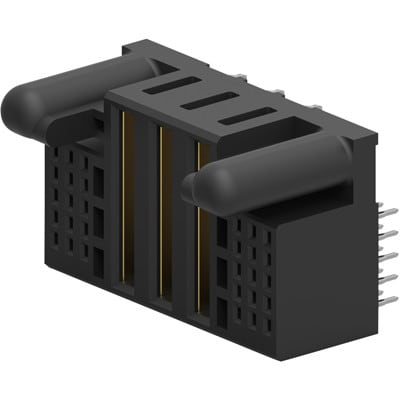

Rectangular Connector, Vertical Receptacle, 15S, 3P, 12S, MULTI-BEAM HD Series | TE Connectivity 2204420-8
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2204420-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2204420-8
| Part Name | 2204420-8 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 2 |
| Circuit Application | Power & Signal |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Number of Power Positions | 3 |
| Operating Voltage (V) | 60 |
| Number of Positions | 30 |
| Termination Post & Tail Length | 3.2 |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 2204420-8 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Number of Rows | 5 |
| Housing Color | Black |
| Number of Signal Positions | 27 |
| Product Type | Connector Assembly |
| Connector Mounting Type | Board Mount |
| Contact Mating Area Plating Thickness | .076 |
| Operating Temperature Range | -40 – 257 |
| Packaging Method | Box & Tray |
| Housing Type | Receptacle |
| Contact Termination Area Plating Material | Matte Tin |
| Contact Mating Area Plating Material | Noble Metal |
| RoHS | True |
| Housing Material | Thermoplastic |
| Sealable | No |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | .079 |
| Contact Current Rating (Max) (A) | 27 |
| Contact Retention | With |
| Contact Type | Socket |
| Glow Wire Rating | High Temperature Part - Not Glow Wire |
| Connector Circuit Configuration (Number of Pos/Type) | 3P/Power, 27/Signal |
| Board-to-Board Configuration | Vertical |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
