2204535-1
ELCON MINI 2X3P STACKED RIGHT ANGLE HEADER,SOLDER | TE Connectivity 2204535-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2204535-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

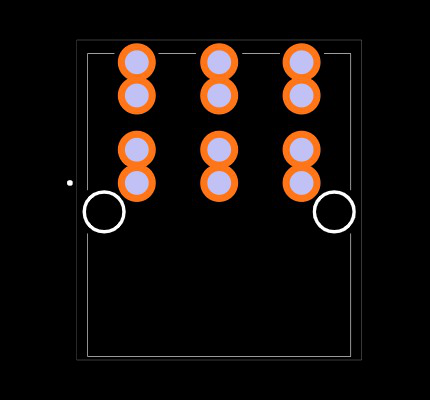

Footprint
No web preview
This Footprint is Available for

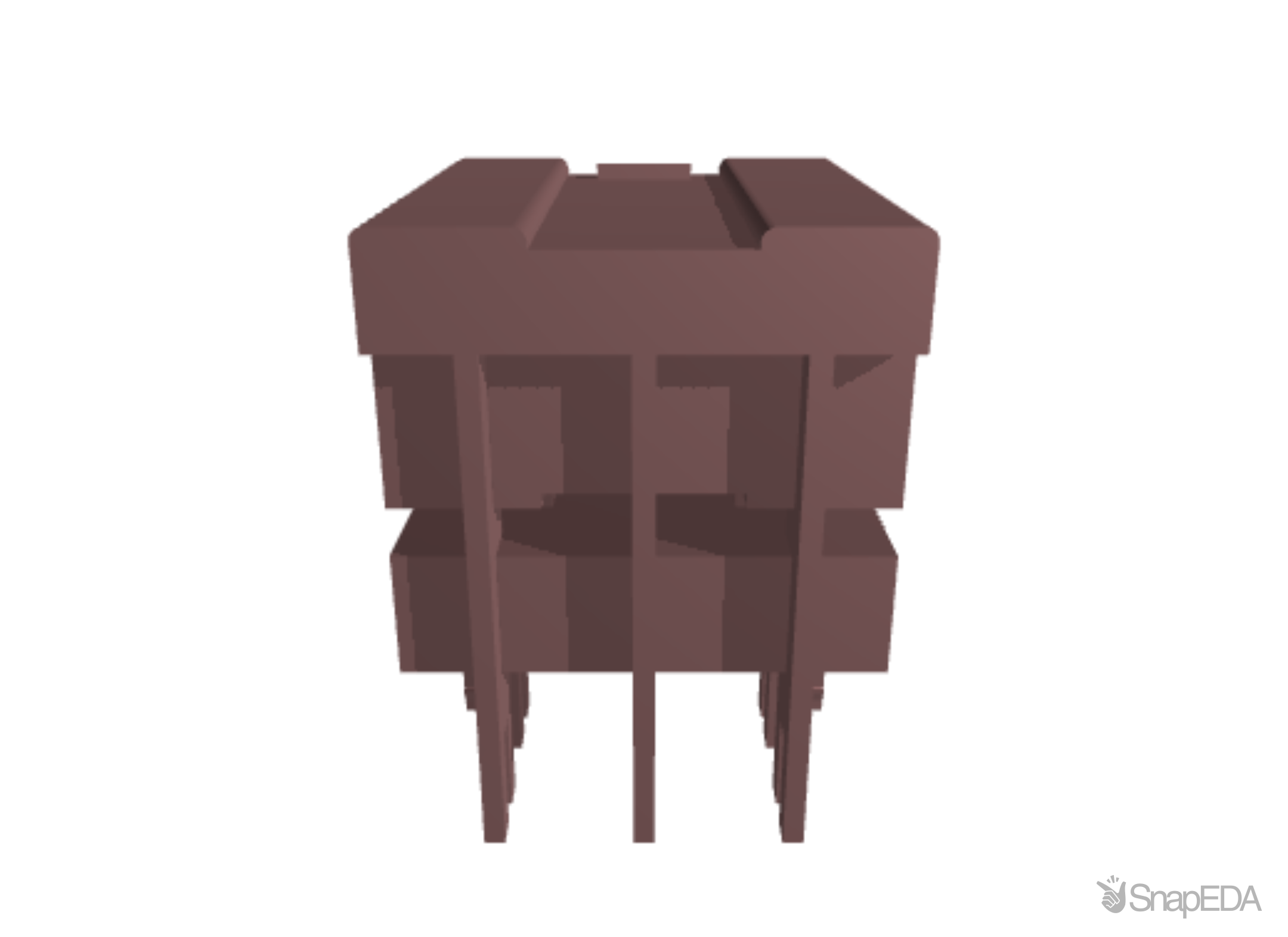

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2204535-1
| Part Name | 2204535-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .224 |
| Circuit Application | Power |
| Housing Material | LCP GF30 (Liquid Crystal Polymer) |
| Number of Power Positions | 6 |
| Operating Voltage (V) | 400 |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 2204535-1 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Number of Rows | 3 |
| Housing Color | Black |
| Number of Signal Positions | 0 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 – 221 |
| Packaging Method | Reel |
| Housing Type | Plug |
| Contact Termination Area Plating Material | Silver |
| Number of Positions | 6 |
| Contact Mating Area Plating Material | Silver |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole |
| Product Type | Plug |
| Contact Retention | With |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | .441 |
| Contact Current Rating (Max) (A) | 35 |
| Contact Mating Area Plating Thickness | 3 |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
