2213189-2
Conn Poke-In Inverted Through Board HDR 2 POS 3.3mm Solder ST SMD T/R
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2213189-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

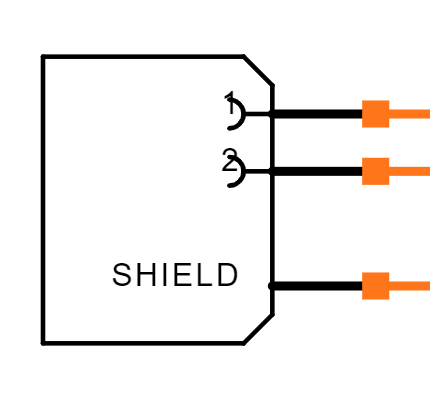

Symbol
No web preview
This Symbol is Available for

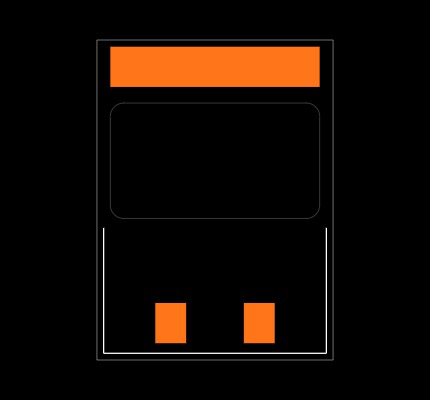

Footprint
No web preview
This Footprint is Available for

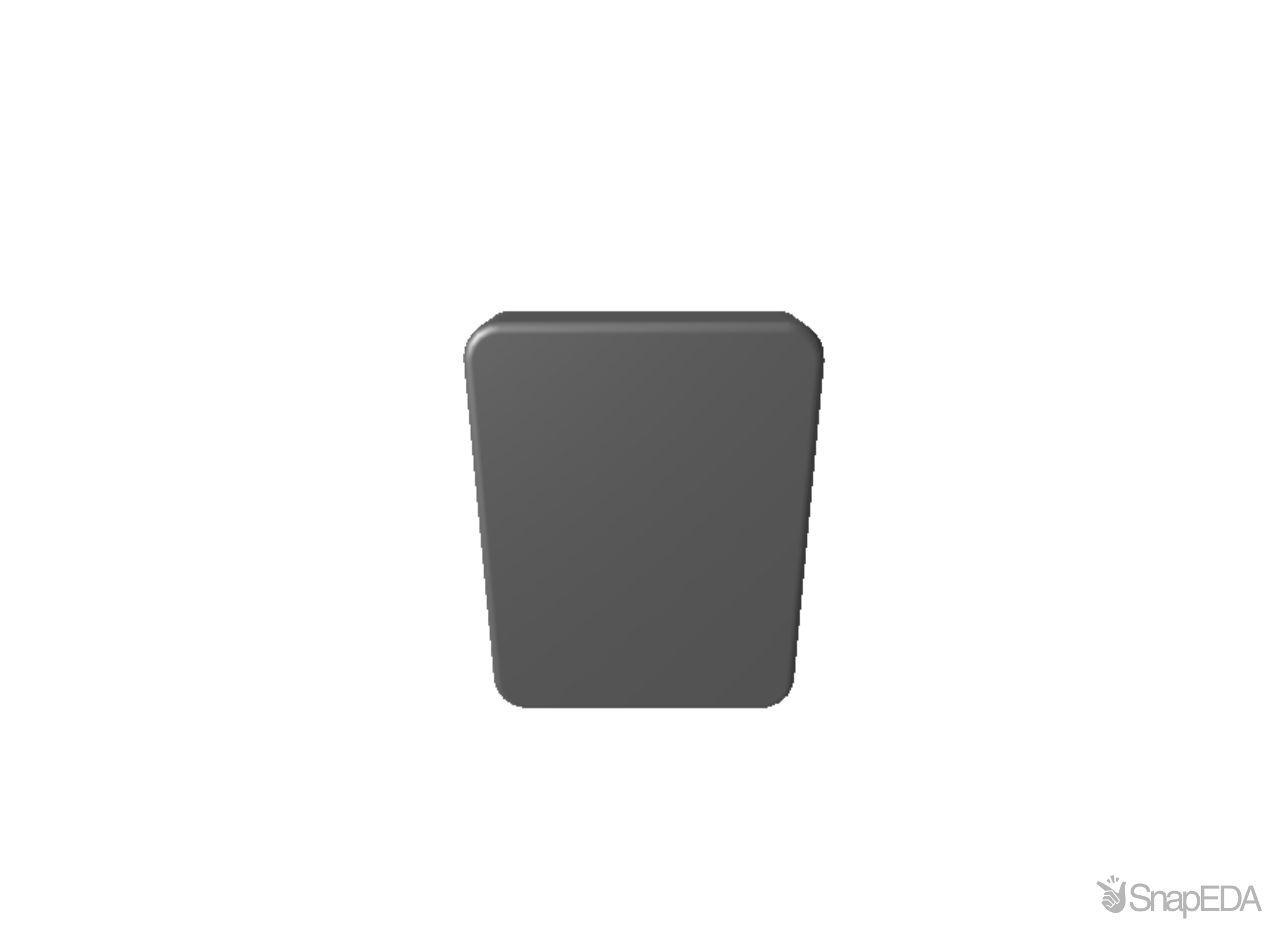

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2213189-2
| Part Name | 2213189-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 3.3 |
| Circuit Application | Power |
| Housing Material | Thermoplastic |
| Operating Voltage (V) | 400 |
| Contact Fabrication | Stamped & Formed |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Boardlock |
| Contact Design | Poke-In |
| PCB Mount Retention | With |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| TE Internal Number | 2213189-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | 10.25 |
| Number of Rows | 1 |
| Agency/Standard Number | C22.2 No. 182.3-M1987 |
| Housing Color | Natural |
| Connector Width | 10.67 |
| Contact Mating Area Plating Material Finish | Matte |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| PCB Contact Termination Area Plating Material Thickness | 78.74 |
| Termination Method to Printed Circuit Board | Surface Mount |
| Connector Length | 7.5 |
| UL File Number | E28476 |
| Operating Temperature Range | -40 – 130 |
| Contact Layout | Inline |
| Strain Relief | Without |
| Mating Entry Location | Bottom |
| Contact Underplating Material | Nickel |
| Packaging Method | Reel |
| Packaging Quantity | 350 |
| Agency/Standard | UL |
| Number of Positions | 2 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Tin |
| Pass-Through Hole Size | 4.3 x 7.8 mm |
| RoHS | True |
| Mating Retention | Without |
| 端子の下地めっきの材料 | Nickel |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 2 |
| Contact Current Rating (Max) (A) | 2 |
| Contact Retention | With |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
