2213627-2

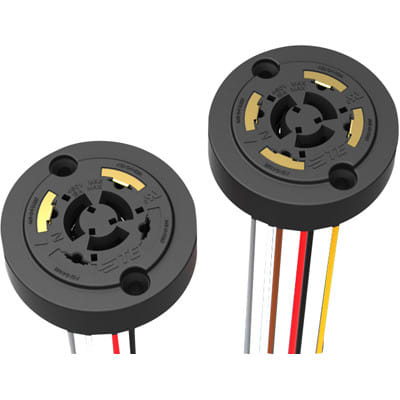

ASSEMBLY, ROT DIM REC 49.22MM 7 POS 150C | TE Connectivity 2213627-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2213627-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2213627-2
| Part Name | 2213627-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Rotatable | Yes |
| Sealable | Yes |
| Operating Temperature Range | -40 – 185 |
| Circuit Application | Power & Signal |
| TE Internal Number | 2213627-2 |
| Lighting Product Type | Connector |
| Agency & Standard | ANSI |
| Connector System | Wire-to-Component |
| Contact Current Rating (Max) (A) | 15 |
| Number of Positions | 7 |
| Housing Color | Black |
| Operating Voltage (V) | 600 |
| Contact Mating Area Plating Material | Gold |
| Wire Size | 18 – 14 |
| Connector & Contact Terminates To | Wire & Cable |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2213627-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
40
|
|
Visit Site | |
| Avnet America |
200
|
1 x $6.10
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Heilind Americas |
6,367
|
|
Visit Site | |
| Interstate Connecting Components |
2,122
|
|
Visit Site | |
| Newark |
187
|
1 x $13.27
|
Visit Site | |
| Onlinecomponents |
203
|
|
Visit Site | |
| Powell Electronics |
123
|
|
Visit Site | |
| Sager |
|
100 x $12.08
|
Visit Site | |
| TME |
600
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| Verical |
106
|
|
Visit Site |
