2213678-6
LED - Holder BridgeLux H6, Citizen CLL020, CLL022, CLU700, Panasonic C14, C15, Seoul SDW, Tridonic SLE-G5-LES11, SLE-G5-LES6
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2213678-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

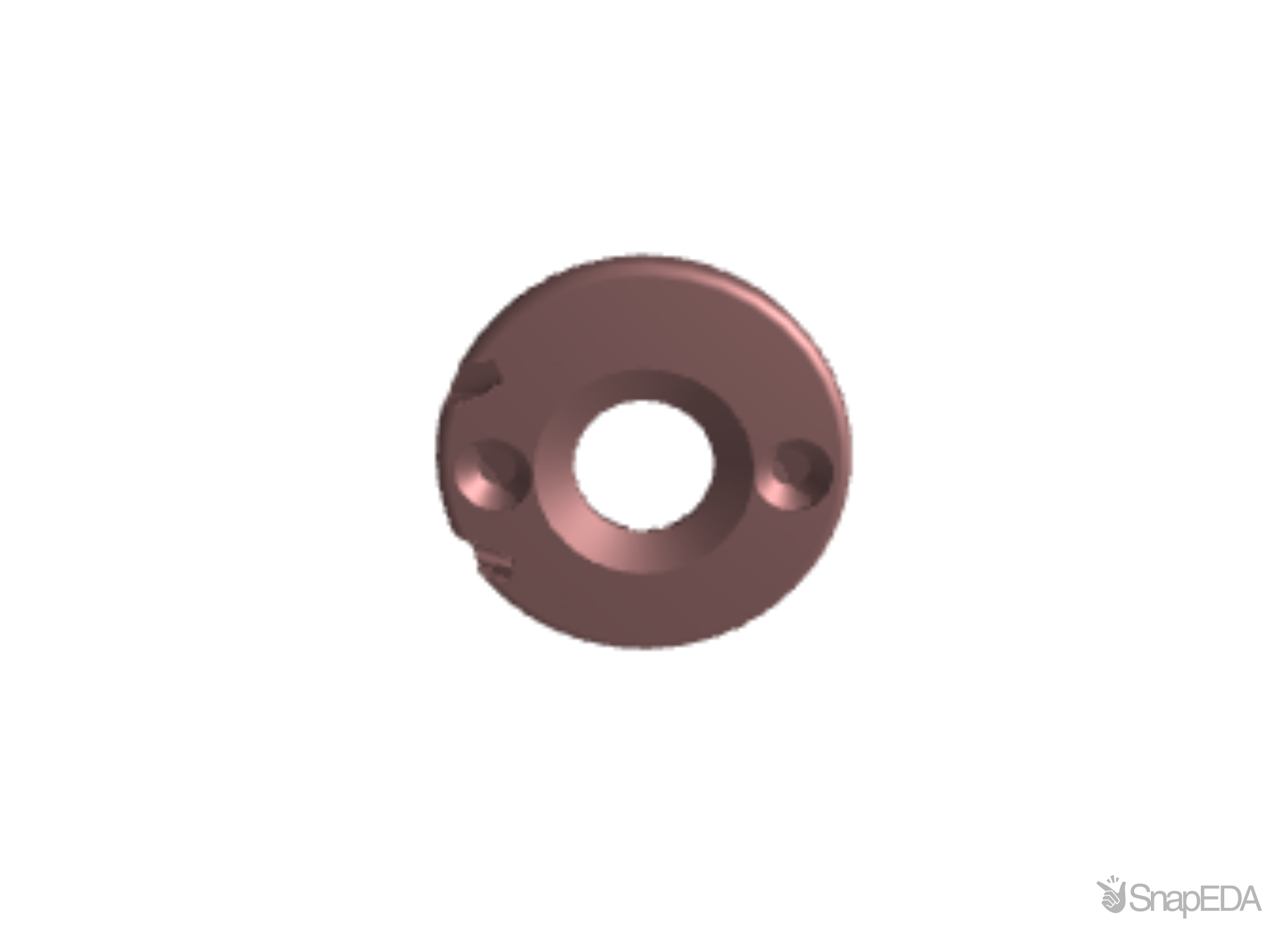

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2213678-6
| Part Name | 2213678-6 |
| Manufacturer | TE Connectivity |
| LED Family | Panasonic C14 (13.5 x 13.5) |
| Circuit Application | Power |
| Housing Material | PBT GF |
| Operating Voltage (V) | 60 |
| Number of Positions | 2 |
| Connector System | Wire-to-Component |
| Current Rating (Max) (A) | 3 |
| TE Internal Number | 2213678-6 |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Poke-In |
| Thermal Protection | No |
| Sealable | No |
| Operating Temperature Range | -40 – 105 |
| LED Manufacturer | Panasonic |
| Optics Alignment | No |
| RoHS | True |
| COB Substrate Thickness | 1 |
| Contact Base Material | Copper Alloy |
| Enables Zhaga Compatibility | Zhaga Inspired |
| 端子嵌合面のめっき材質 | Gold |
| Contact Current Rating (Max) (A) | 3 |
| Product Type | LED Holder |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
