2213831-2
LUMAWISE ENDURANCE S BASE ASSY 8
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2213831-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

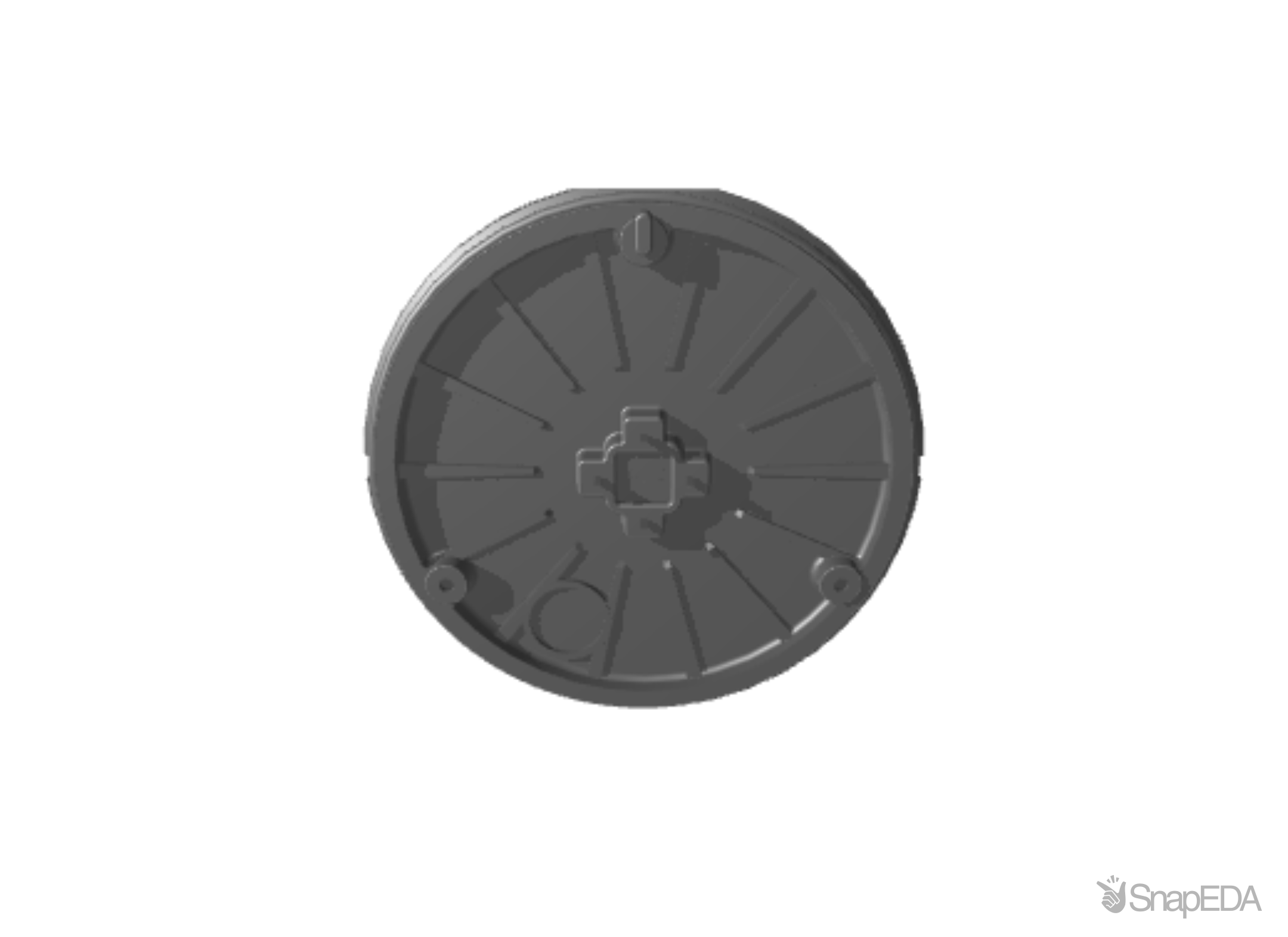

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2213831-2
| Part Name | 2213831-2 |
| Manufacturer | TE Connectivity AMP Connectors |
| Product Height | 19.3 |
| IP Water Sealing Level | 6 |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 – 90 |
| Circuit Application | Signal |
| Keyed | Yes |
| TE Internal Number | 2213831-2 |
| Lighting Product Type | Connector |
| Agency & Standard | Zhaga |
| Connector System | Wire-to-Board |
| Connector Diameter | 75.2 |
| Sealable | Yes |
| Connector & Contact Terminates To | Printed Circuit Board |
| Housing Color | Gray |
| Contact Current Rating (Max) (A) | 1.5 |
| IP Dust Sealing Level | 6 |
| Vented | Yes |
| Number of Positions | 4 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 75.2 (mm) |
| Led Holder Type | LED Holder |
| Voltage Rating (V) | 30 (V) |
| Series | LUMAWISE Endurance S |
| Number Of Legs | 4 |
| For Use With | LUMAWISE Endurance S Connector Systems |
