2214565-2
Conn zQSFP+ RCP 228 POS 2.4mm Press Fit RA Thru-Hole 228 Terminal 6 Port Box/Tray
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2214565-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

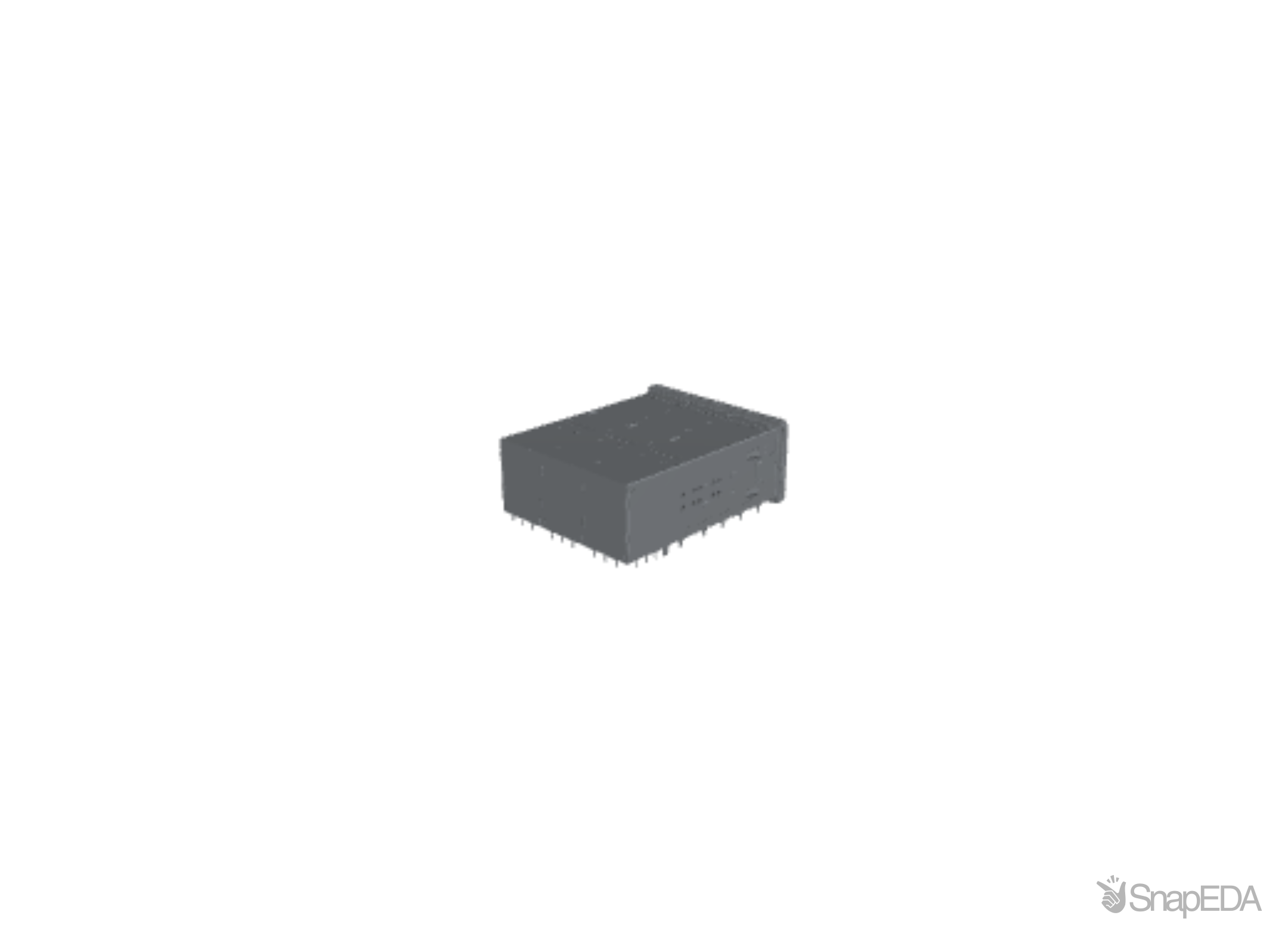

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2214565-2
| Part Name | 2214565-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .8 |
| Enhancements | Standard |
| Circuit Application | Signal |
| Included Heat Sink | No |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Cage Type | Stacked |
| Number of Positions | 190 |
| Pluggable I/O Applications | Standard |
| EMI Containment Feature Type | Elastomeric Gasket |
| PCB Thickness (Recommended) | 1.57 |
| Rear EONs per Port Column | 3 |
| TE Internal Number | 2214565-2 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Cable-to-Board |
| Cage Material | Nickel Silver |
| Heat Sink Compatible | No |
| Product Type | Cage Assembly with Integrated Connector |
| Form Factor | zQSFP+ |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -67 – 221 |
| Lightpipe Configuration | Outer Left Indicator Up |
| Contact Underplating Material | Tin |
| Packaging Method | Box & Tray |
| Tail Length | 2 |
| Number of Ports | 6 |
| Sealable | Yes |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Data Rate (Max) | 28 |
| 端子の下地めっきの材料 | Tin |
| UL Flammability Rating | UL 94V-0 |
| For Use With Pluggable I/O Products | QSFP MSA Compatible Transceiver |
| Contact Current Rating (Max) (A) | .5 |
| Contact Mating Area Plating Thickness | 30 |
| Port Matrix Configuration | 2 x 3 |
| PCB Contact Termination Area Plating Material | Gold |
| Included Lightpipe | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 2214565-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
18
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
2 x $139.71
|
Visit Site | |
| Farnell UK |
69
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
76
|
|
Visit Site | |
| Powell Electronics |
50
|
|
Visit Site | |
| RS Americas |
|
|
Visit Site | |
| Sager |
|
27 x $107.93
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the 2214565-2
If you experienced any issues with the symbol or footprint, please report it.
