221789-1
Straight Through Hole SMA Connector, jack, Solder Termination Coaxial | TE Connectivity 221789-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 221789-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

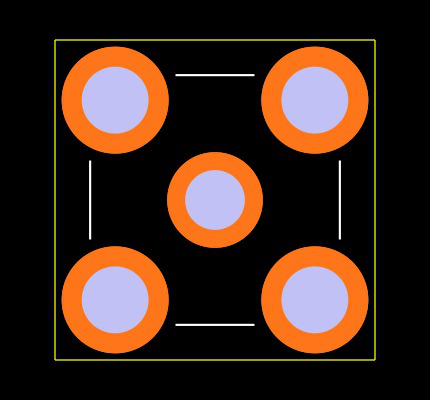

Footprint
No web preview
This Footprint is Available for

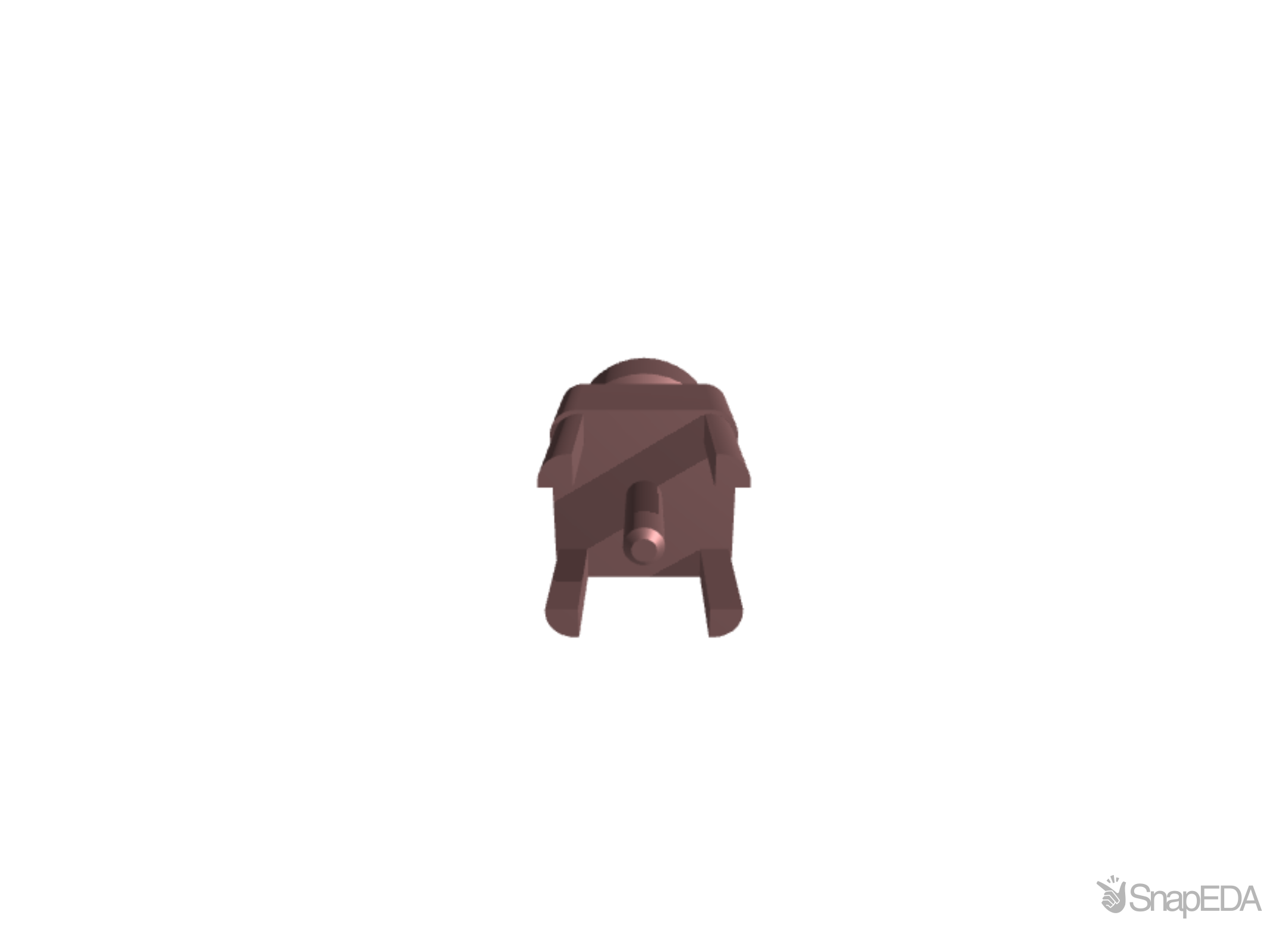

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 221789-1
| Part Name | 221789-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| コネクタ製品タイプ | Connector Assembly |
| RF Contact Captivation Method | Solder |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| Termination Method to Printed Circuit Board | Through Hole |
| RF Connector Style | Jack |
| PCB Tail Length | .155 |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | Fluoropolymer |
| Number of Positions | 1 |
| Termination Method to Wire & Cable | Solder Terminal |
| TE Internal Number | 221789-1 |
| RF Connector Coupling Mechanism | Threaded |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Cable-to-Board |
| Body Plating Material | Gold over Nickel |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Product Length | .53 |
| RF Connector Mated Outer Diameter (Approximate) | .25 |
| Operating Temperature Range | -85 – 329 |
| Packaging Method | Package |
| RF Interface | SMA |
| Detent | Without |
| Body Material | Brass |
| Height Above PC Board | .375 |
| Operating Frequency | 4 |
| PCB Mount Orientation | Vertical |
| RoHS | True |
| Life Cycle Status | Obsolete |
| RF Connector Contact Configuration | Not Captivated |
| RF Connector Center Contact Plating Material | Gold |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Gold over Nickel |
| Mounting Type | PCB Mount |
| Gender | Female |
| Body Orientation | Straight |
| Coaxial Connector Type | SMA Connector |
| Minimum Operating Temperature | -65 (°C) |
| Termination Method | Solder |
| Operating Frequency | 4 (GHz) |
| Impedance | 50 (Ω) |
| Contact Plating | Gold |
| Series Number | 221789 |
| Maximum Operating Temperature | +165 (°C) |
| Contact Material | Beryllium Copper |
