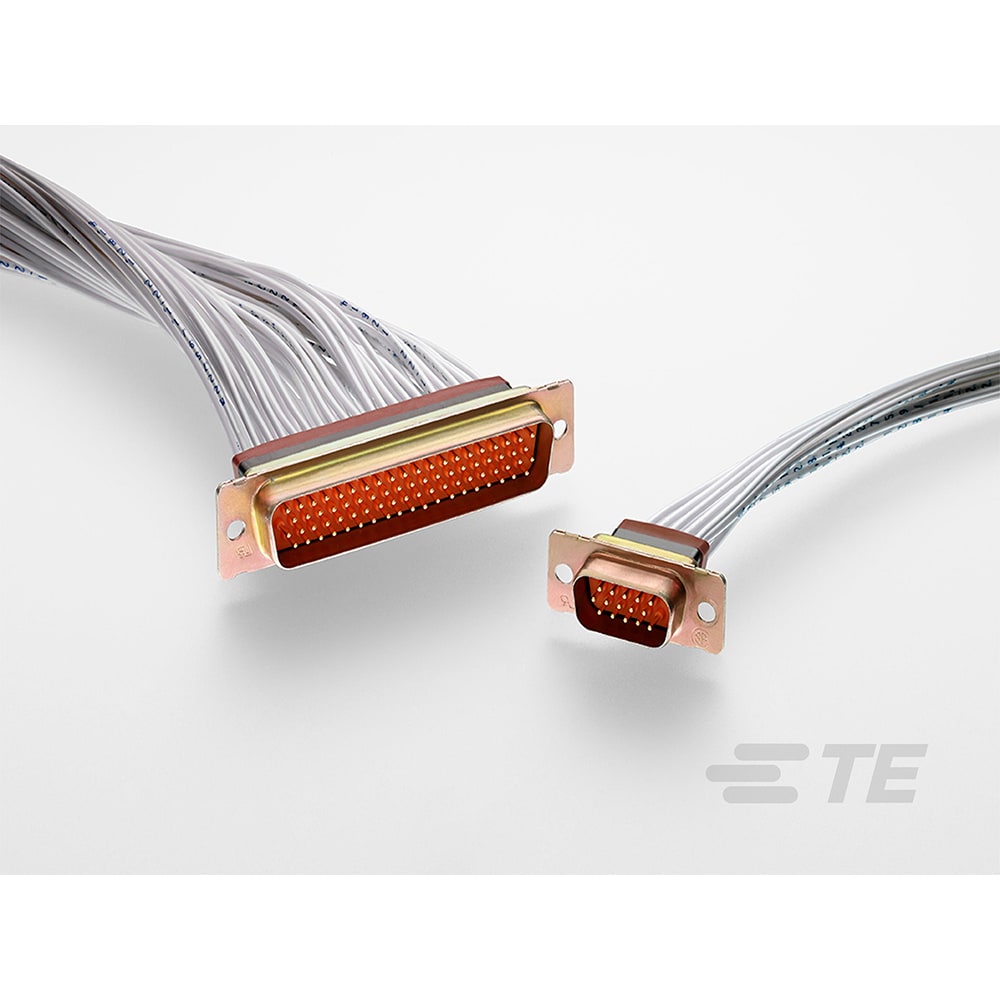

2221860-2
Connectors, D-Sub, Standard, AMPLIMITE IP-67 PLUG ASSY, 90, SZ 1-6 | TE Connectivity 2221860-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2221860-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

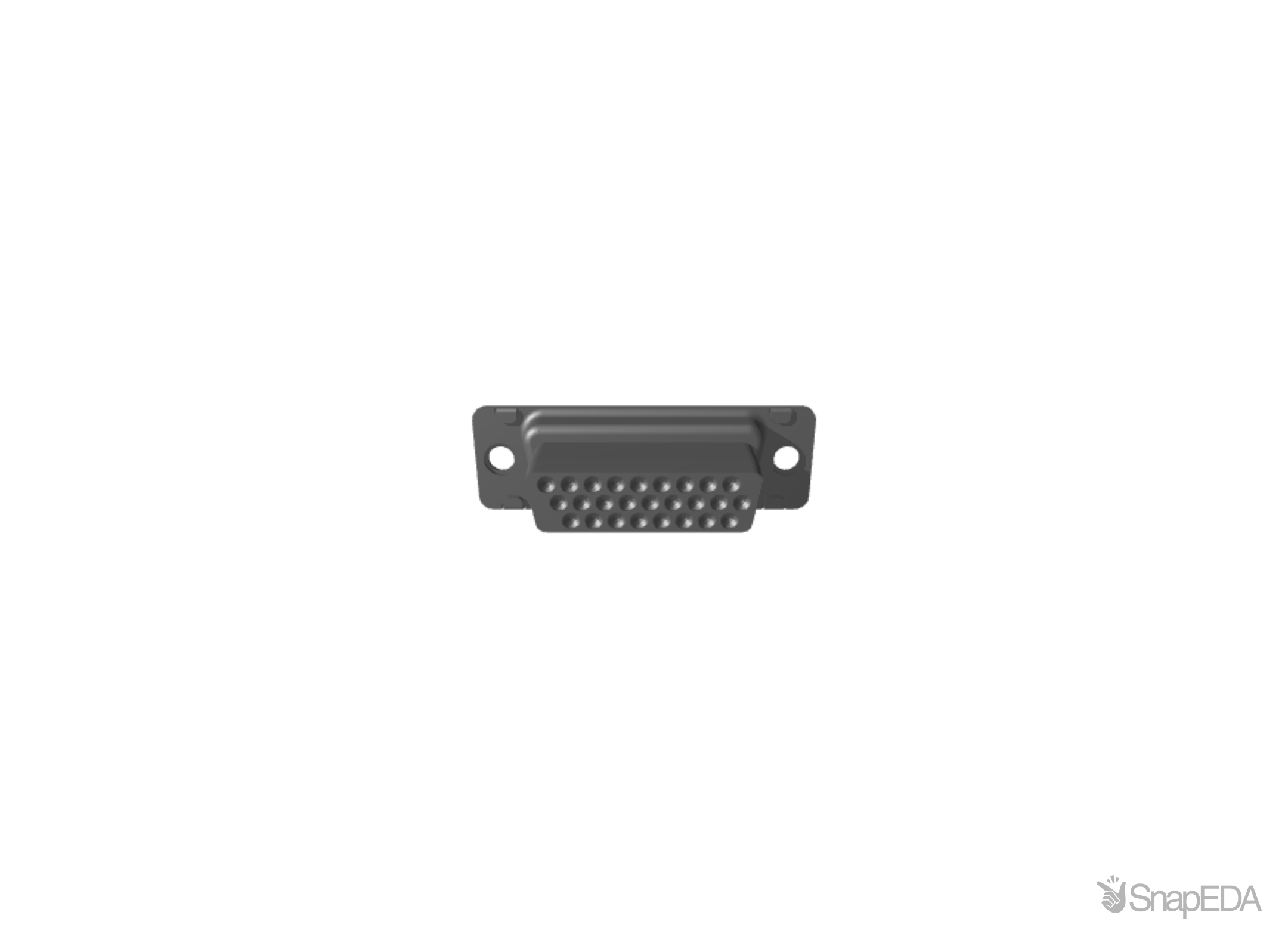

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2221860-2
| Part Name | 2221860-2 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Zinc |
| Category | Connectors |
| Centerline (Pitch) | .09 |
| Shell Material | Carbon Steel |
| Circuit Application | Signal |
| Insert Flammability Rating | V-0 |
| Housing Material | Thermoplastic |
| Shell Size | 3 |
| For Use With | Crimp Snap-in |
| Connector Style | Crimp Snap |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Crimp |
| TE Internal Number | 2221860-2 |
| Number of Positions | 26 |
| Connector System | Cable-to-Cable |
| Housing Color | Black |
| Retainer Clip Material | Stainless Steel |
| Sealable | Yes |
| Connector Mounting Type | Panel |
| Contact Size | 22 |
| Operating Temperature Range | -55 – 125 |
| Shielded | No |
| Grounding Indents | Without |
| Grommets | With |
| Insert Material | Thermoplastic |
| RoHS | N |
| Product Type | Connector |
| Shell Type | Metal |
| Shield Material | Steel |
| Contact Current Rating (Max) (A) | 5 |
| Mating Connector Lock | Without |
