2227581-1

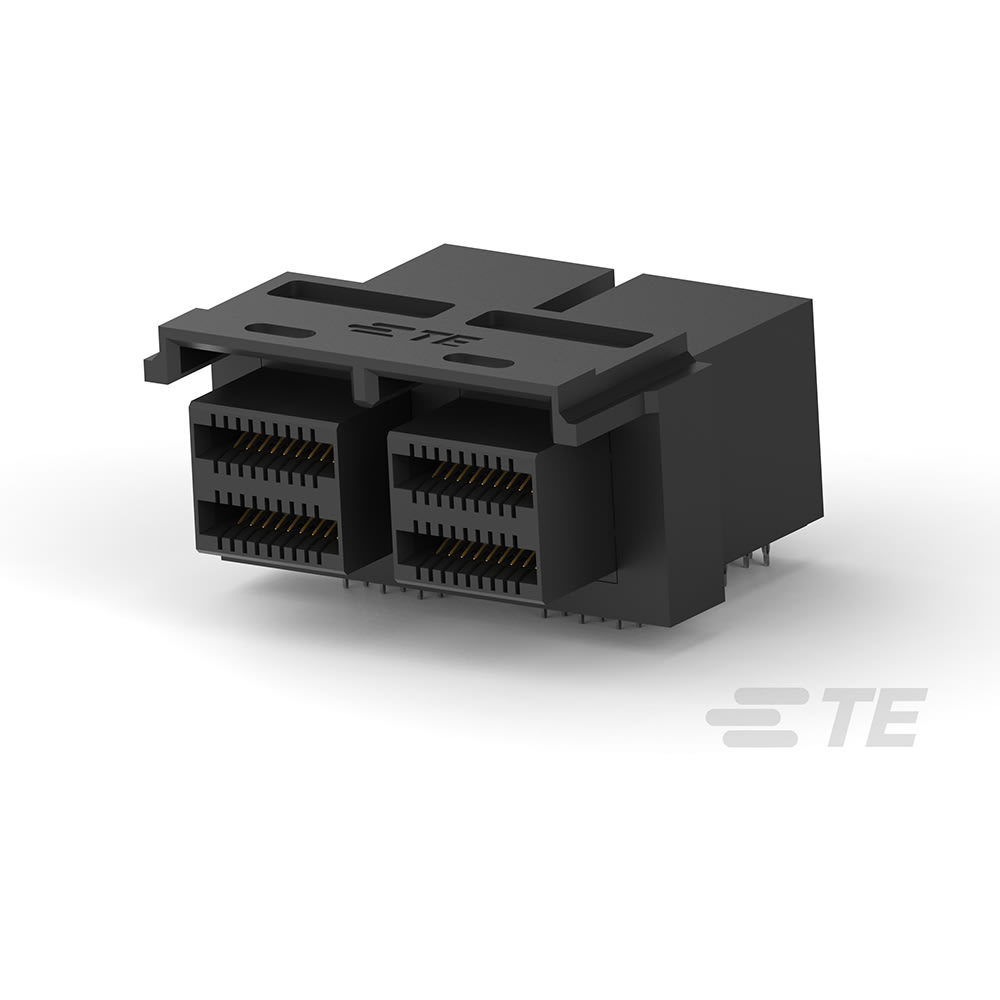

1X2 R/A ASSY, MINI SAS HD INTERNAL | TE Connectivity 2227581-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2227581-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2227581-1
| Part Name | 2227581-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .029 |
| Product Type | Connector |
| Operating Temperature Range | -67 – 185 |
| Circuit Application | Signal |
| Product Grouping | Internal Mini-SAS HD |
| Packaging Method | Box & Tray |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Number of Ports | 2 |
| Height Above PC Board | .547 |
| Contact Mating Area Plating Material | Conforms to the requirements of TE product specification 108-32038 based on EIA/ECA-364-1000.0IA. |
| Connector Style | Receptacle |
| PCB Mount Orientation | Right Angle |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | M2 Screw |
| PCB Mount Retention | With |
| Shell | Without |
| PCB Thickness (Recommended) | .062 |
| High Temperature Housing | Yes |
| Receptacle Configuration | Mini-SAS HD |
| TE Internal Number | 2227581-1 |
| Number of Positions | 72 |
| Connector System | Cable-to-Board |
| Number of Rows | 4 |
| Housing Color | Black |
| Stackable | No |
| Contact Base Material | Copper Alloy |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mounting Style | Through Hole - Press-Fit |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
