223956-1

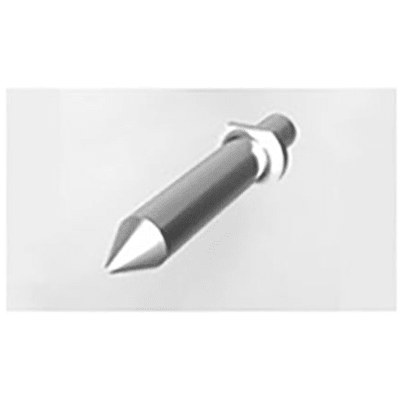

GUIDE PIN, UNIVERSAL POWER MODULE, 6.20 MM, M4 X 7-6G | TE Connectivity 223956-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 223956-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

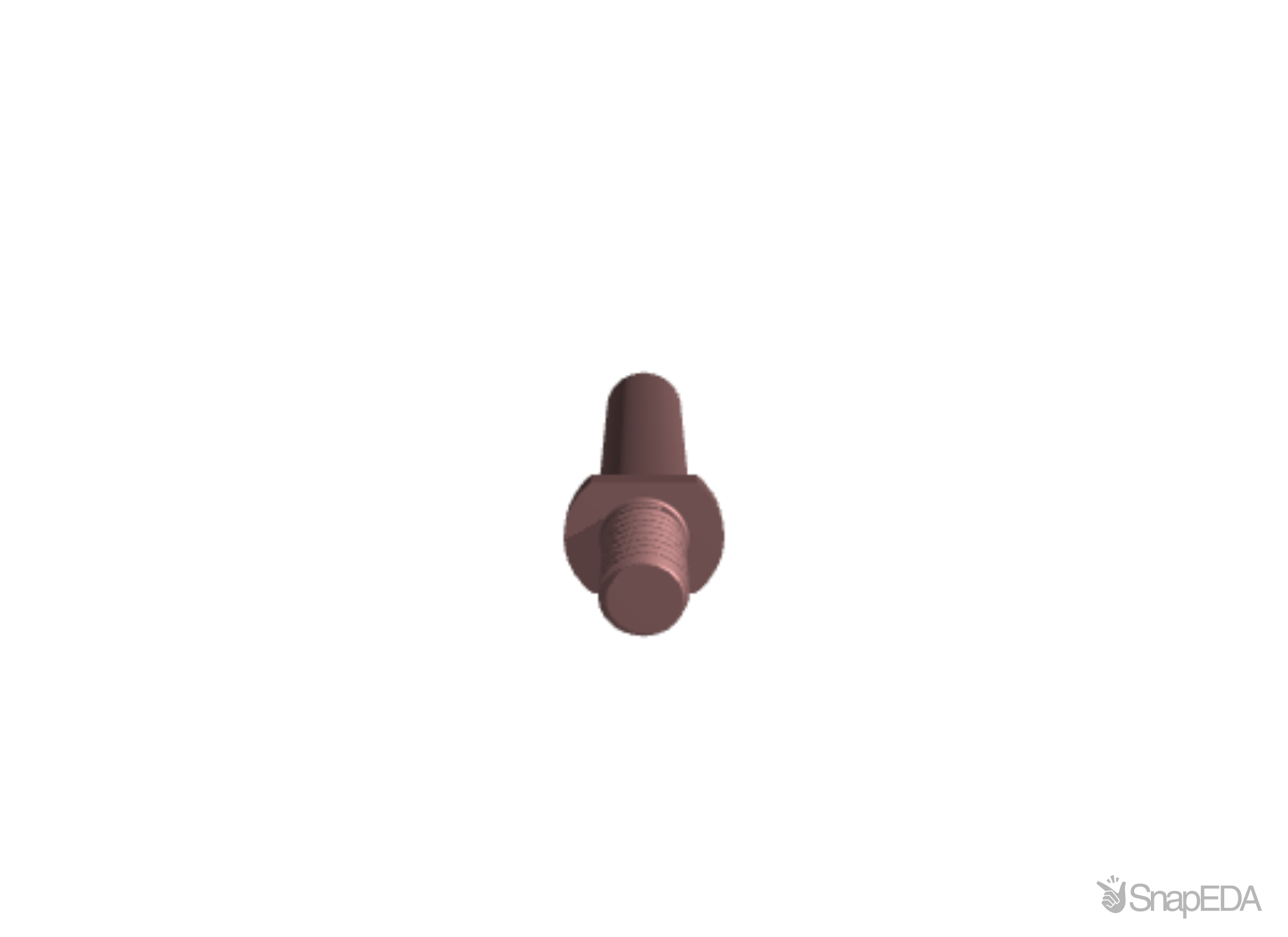

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 223956-1
| Part Name | 223956-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Guide Pin Material | Stainless Steel |
| Screw & Hole Thread Size | M4 x 0.7-6G |
| Packaging Method | Package |
| Mounting Angle | Vertical |
| Packaging Quantity | 1000 |
| TE Internal Number | 223956-1 |
| Guide Hardware | Yes |
| Guide Pin Finish | Passivated |
| Thread Length | .244 |
| Keyed | No |
| Backplane Guide Hardware Type | Guide Pin Module |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| For Use With | Universal Power Module |
| Accessory Type | Guide Pin |
Inventory for the 223956-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
804
|
|
Visit Site |
No issues have been reported for the 223956-1
If you experienced any issues with this part, please report it.
