227161-2
BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 227161-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

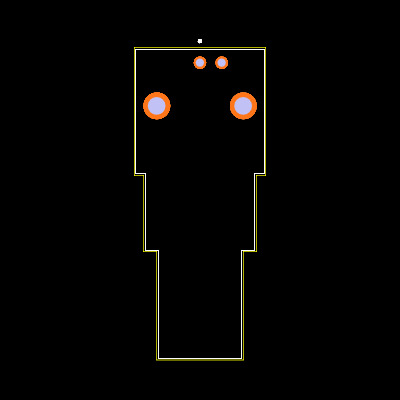

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 227161-2
| Part Name | 227161-2 |
| Manufacturer | TE Connectivity |
| RF Contact Captivation Method | Mechanical |
| Port Configuration | Single Port |
| Termination Method to Printed Circuit Board | Through Hole |
| Body Insulation | Without |
| RF Connector Style | Jack |
| PCB Tail Length | 4.11 |
| RF Connector Center Contact Material | Phosphor Bronze |
| Dielectric Material | Polymethylpentene |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | With |
| TE Internal Number | 227161-2 |
| RF Connector Coupling Mechanism | Bayonet |
| PCB Mount Orientation | Right Angle |
| Connector System | Cable-to-Panel |
| Body Plating Material | Nickel |
| Number of Coaxial Contacts | 1 |
| Housing Color | Black |
| Impedance | 50 |
| Additional Features | Hardware Included |
| Connector Mounting Type | Panel |
| RF Connector Mated Outer Diameter (Approximate) | 14.529 |
| Panel Attachment Style | Rear Mount |
| RF Connector Center Contact Plating Thickness | 5080 |
| Operating Temperature Range | -55 – 85 |
| Body Shape | Circular |
| Packaging Method | Tube |
| RF Interface | BNC |
| Detent | With |
| Body Material | VALOX |
| Number of Positions | 1 |
| Mounting Post Length | .137 |
| Operating Frequency | 4 |
| Panel Mount Feature Type | Lockwasher and Nut |
| RoHS | RoHS Compliant By Exemption |
| Sealable | No |
| Grade | Commercial |
| RF Connector Center Contact Plating Material | Tin |
| Height Above PC Board | 15.88 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 227161-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Boersig GmbH |
|
1 x $4.64
|
Visit Site | |
| Farnell UK |
498
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
260
|
|
Visit Site | |
| Powell Electronics |
5
|
|
Visit Site | |
| Richardson RFPD |
|
|
Visit Site | |
| TE Store |
602
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site |
No issues have been reported for the 227161-2
