2286211-3
HIGH CURRENT SPRING FINGER
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 2286211-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

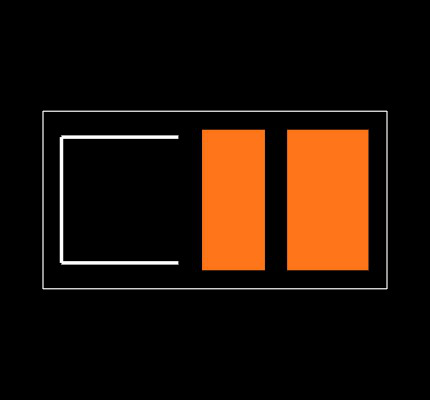

Footprint
No web preview
This Footprint is Available for

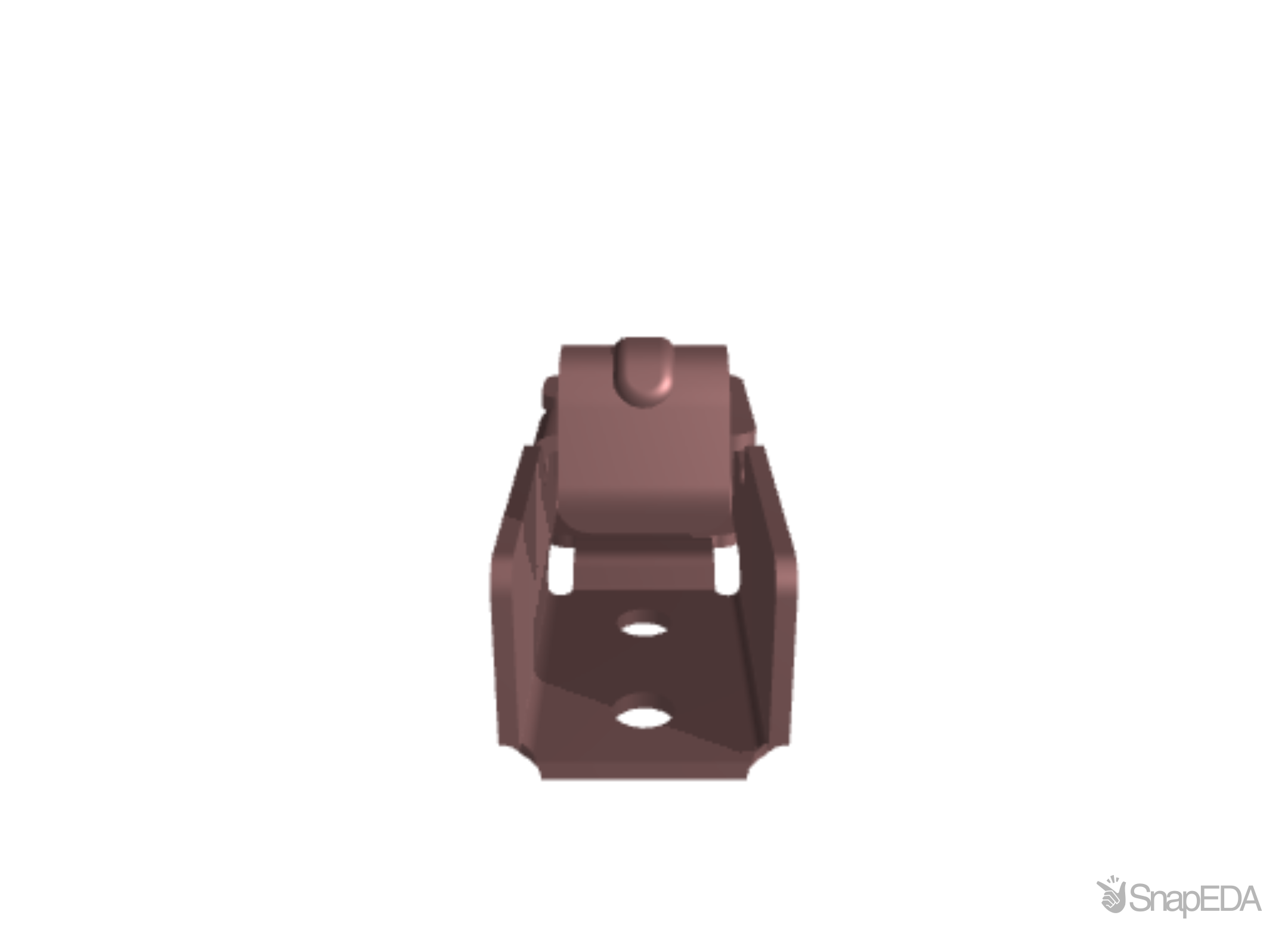

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 2286211-3
| Part Name | 2286211-3 |
| Manufacturer | TE Connectivity |
| Contact Plating Thickness | .5 |
| Current Rating (A) | 2 |
| Operating Temperature Range | -40 – 85 |
| Circuit Application | Signal |
| Part Category | PCB Spring Contacts |
| Packaging Method | Tape & Reel |
| TE Internal Number | 2286211-3 |
| Packaging Quantity | 5000 |
| Contact Width | .067 |
| Contact Current Rating (Max) (A) | 4 |
| Point of Contact Area Plating Material | Gold Flash |
| Uncompressed Height | .094 |
| Preloaded | Yes |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
